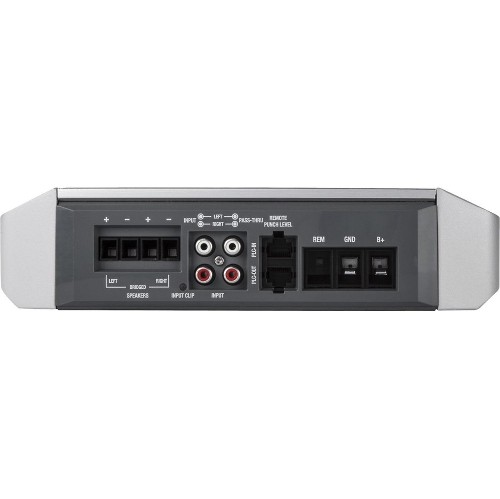

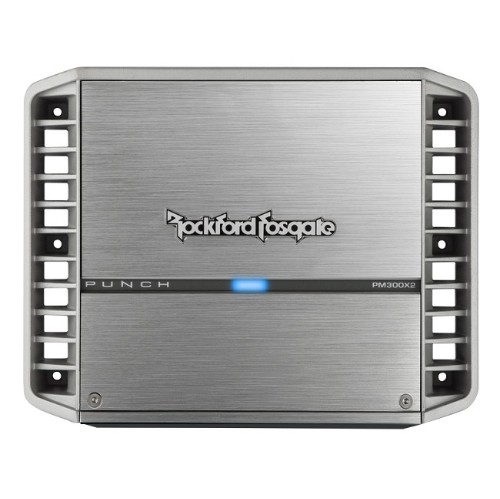

Rockford Fosgate PM300X2 Punch Marine 300 Watt 2-Channel Amplifier

The PM300X2 is a solid choice if you're looking to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the PM300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system. High level input capable with Auto Turn-On circuit RCA pass-thru outputs Features C.L.E.A.N. Set-up Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator) 12dB/octave Butterworth crossover On-board Punch EQ with +18dB boost @ 45Hz Muted turn on Stealth top mounted control panel Cast aluminum heatsink Short circuit protection Over current protection Marine grade two part epoxy coating on circuit boards Marine grade stainless steel hardware. Recommended Fuse (not included)50 A Operating Voltage9 - 16 VDC Suggested Alternator75 A Input Sensitivity150 mV - 12 V BridgeableYes CEA-2006 CompliantCEA-2006 Guidelines CEA-2006 Power Rating 100W x 2 @ 4Ω ≤1.0% THD+N Crossover ControlsHigh-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth All-Pass: Yes Signal InputHi/Low Level: 1 RCA Pair Signal OutputLow Level: 1 RCA Pair Power Input ConnectorCaptive C-Clamp Speaker Output ConnectorCaptive C-Clamp Speaker Wire Gauge8 AWG to 18 AWG CoolingConvection Remote ControlsOptional Punch Level Control (PLC2) Ready Dimensions (H x W x D)2.38 x 7.76 x 9.86 (in) 6.05 x 19.71 x 25.04 (cm) Dynamic Power (PVC/PowerCube®)120 Watts x 2 @ 4-Ohms 0° Res 203 Watts x 2 @ 2-Ohms 0° Res Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0% 2-Ohm: <1.0% Max. Current Draw (13.8V Sinewave)45 A Rated Power (RMS Continuous Power)100 Watts x 2 @ 4-Ohm 150 Watts x 2 @ 2-Ohm 300 Watts x 1 @ 4-Ohm Bridged Number of Channels2 Total Power (Sum of Rated Power)300 Watts Tone Controls0dB to +14dB @ 12.5kHz 0dB to +18dB @ 45Hz Power Wire Gauge8 AWG to 4 AWG Heat Sink TypeDie Cast Aluminum Visual IndicatorsPower/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD Circuit Topology ClassClass A/B Frequency Response20Hz-20kHz Shipping Weight9.5 Lbs. (4.3 Kg.) Efficiency (average)69% @ 4-Ohm Dimensional Diagram Average Current Draw (13.8V Music)23 A
