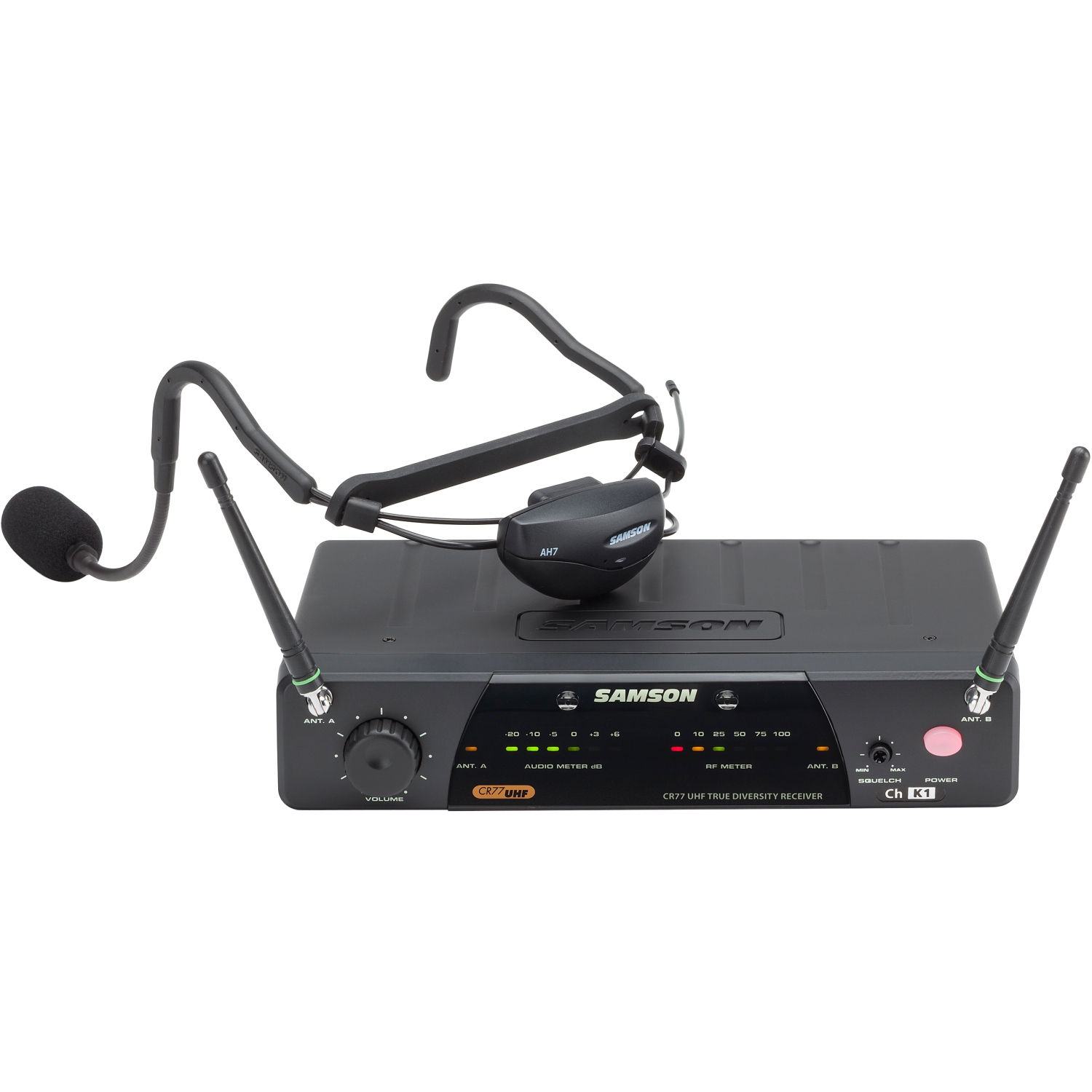

The Samson AirLine 77 AH7 Fitness Headset system is a wireless microphone solution designed to meet the specific demands of fitness instructors and active performers. With the unique AH7 micro transmitter mounted to a sweat-resistant Qe fitness headset microphone, you can free yourself completely from cables and beltpacks for a truly exhilarating and motivating experience. This allows you to focus on your class or performance, and not have to worry about your audio.
Move Free
Samson revolutionized wireless with the original AirLine transmitter. Building upon this groundbreaking technology, the AH7 micro transmitter is mounted directly on the headset. This is unique when compared to traditional wireless systems that typically use a beltpack with a wire running from the microphone to the transmitter. The AH7 eliminates these extra components that would be especially cumbersome for a fitness instructor and puts everything you need neatly and comfortably around your head. And the transmitter operates for up to eight hours straight on a single AAA battery.
The Right Mic for Fitness
The AH7 Headset Transmitter is mounted to a lightweight, adjustable headset that fits comfortably around your ears and the back of your head, even through those days when you're teaching back-to-back classes for hours on end. The headset also features the Samson Qe condenser microphone, whose sweat-resistant capsule prevents corrosion from prolonged exposure to moisture. In addition, the mic's bidirectional pickup pattern reduces background noise, minimizes feedback problems and effectively rejects signals not originating directly in front of the mic capsule.
Sound Received
The CR77 True Diversity receiver provides reliable performance with up to 300' (90m) of wireless operation. Its half-rack housing is light enough to throw in your bag, or it can be permanently installed with a rackmount kit (sold separately). The rear panel features balanced XLR and unbalanced 1/4" outputs allowing flexible connection options.
Features
AirLine 77 AH7 Fitness Headset System
* Up to 300' (90m) operating range (line-of-sight)
* Available in multiple channels (region dependent)
* AC adapter and 1/4" audio cable included

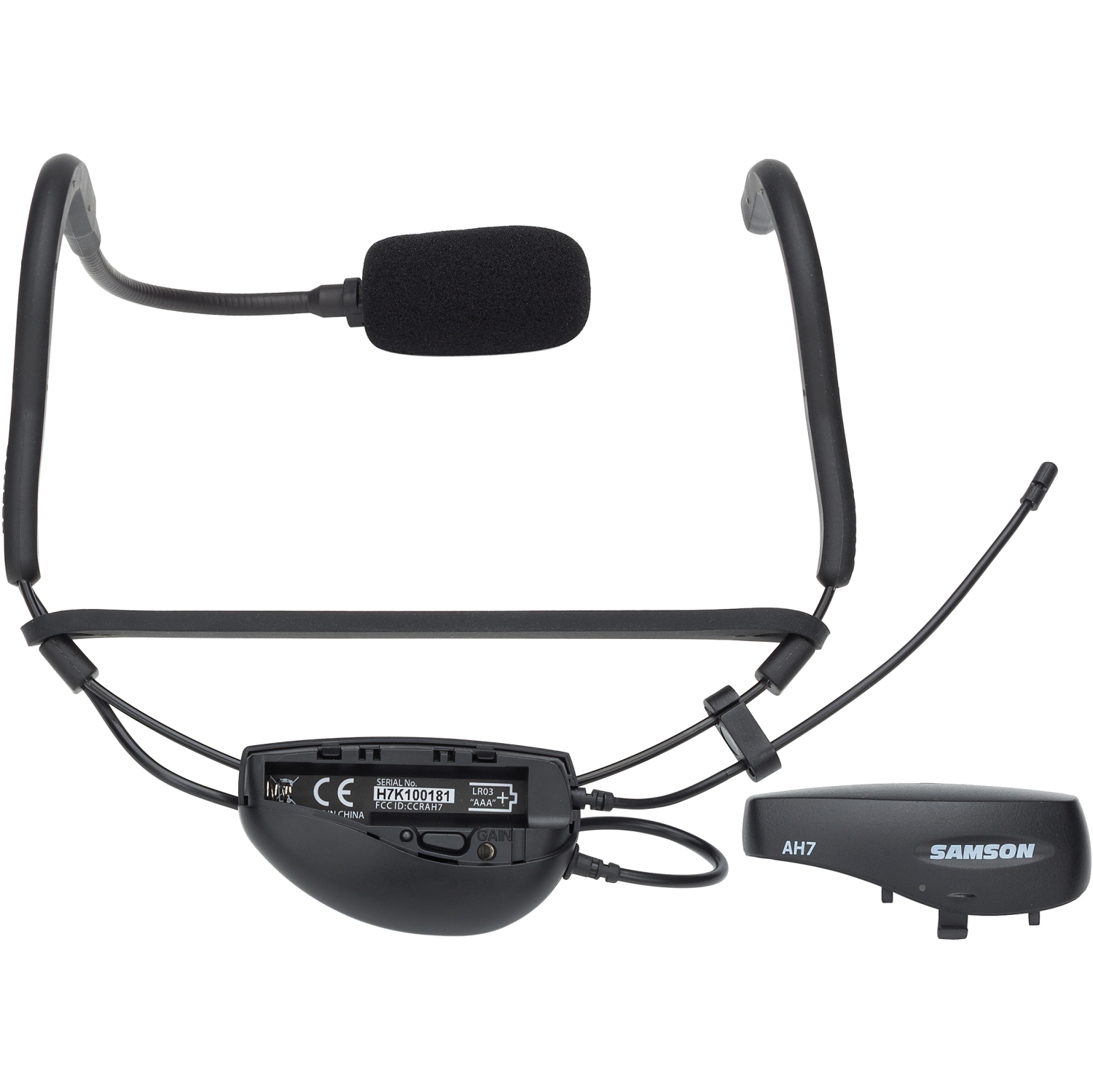

AH7 Fitness Headset Transmitter
* Fitness headset with mounted micro transmitter (no beltpack or cable required)
* Qe condenser microphone element with bidirectional pickup pattern
* Sweat-resistant mic design for high-energy instructors/performers
* Up to eight hours of battery life using single AAA battery
* Power/Low battery LED indicator
* Internal Power switch

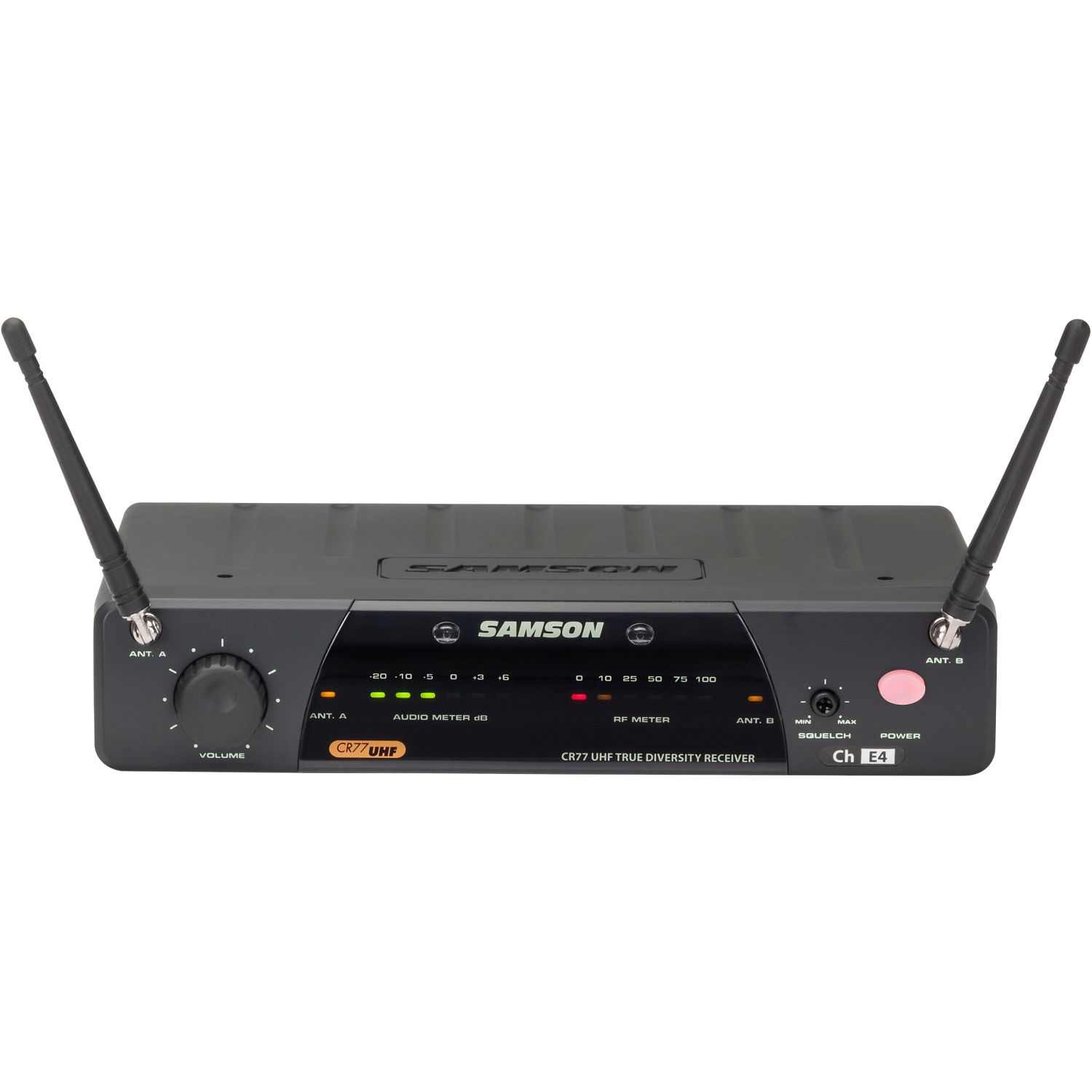

CR77 Wireless Receiver
* True Diversity design minimizes dropouts
* Mountable half-rack chassis
* 1/4-wave antennas
* Multi-segment audio and RF level LED meters
* Volume and squelch controls
* Balanced XLR output, unbalanced 1/4" output
* Mic/Line level output switch
Specifications
AH7 Transmitter
Operating Power Voltage: 1.5V Typical, 1.05V Minimum, 2V Maximum
Current Consumption: 60mA Typical
Battery Life: 8 Hours (AAA size battery)
RF Output Power (5mW): -4dB Minimum, +3dB Maximum
THD: < 2% (1 kHz deviation 15kHz)
Audio Frequency Response: 50Hz - 15kHz (3.5 dB)
Controls: Internal Power Switch
Indicators: Power On (LED Flash), Low Battery (LED On)
CR77 Receiver
Oscillation Type: PLL
Antennas: 1/4 Wavelength Rod
Indicators: Receiver A/B (Green), Power On (Red), AF Level (6 segment), RF Level (6 segment)
Level Control: Audio Level Volume, Squelch Level Control
Operating Temperature: 0⁰ C / 50⁰ C
Operating Voltage: 12 Volts +/-10%
Current Consumption: 160 mA (all LED lights illuminated)
Sensitivity: 18 dBm (@ THD 2%)
Squelch Sensitivity: 0 - 40 dBm (Adjustable)
T.H.D. (Overall): 1% Max (@AF 1 kHz, RF 46 dBu)
S/N Ratio (Overall): 90 dB (w/IHF-A Filter)
Residual Noise: 90 dBv (w/IHF-A Filter)
AF Frequency Response: 50 Hz - 15 kHz (3 dB overall)
Audio Output Level: Unbalanced: 0 dBv / Balanced: -20 dBm (Line), -40 dBm (Mic)
Audio Output Impedance Unbalanced: 5 kΩ / Balanced: 600 Ω
