Take the Worry Out of Wireless
Samson takes the worry out of wireless with the Concert 288 All-In-One Wireless System. Offering easy setup, flawless operation and premium sound, it's the ideal high-performance UHF wireless solution for vocal performances, presentations, Q&A sessions, house of worship, educational applications and more where two users are needed.
The dual-channel Concert 288 All-In-One allows for up to 24 systems (48 performers) to operate simultaneously (region dependent). The Concert 288 All-In-One gives both performers an impressive 300' range of wireless operation between the transmitters and receiver, making the system ideal for large stages and crowd participation. To ensure interference-free performance, the Concert 288 All-In-One features a true diversity design. If a drop out does occur, the receiver's tone key triggers an Auto Mute function to eliminate any background noise until the signal is restored.
Featuring a user-friendly front panel, the CR288 Wireless Receiver provides the system with fast and easy setup. To find your optimal channel, the CR288 provides two Select buttons for auto syncing the receiver and transmitter channels via an infrared signal. The panel also contains a dual 7-segment LED for the operating channels, two Volume knobs, two tuned antennas, as well as Ready and Peak indicators for optimal functionality and monitoring. The back of the receiver features two separate balanced XLR outputs for routing signals to two separate mixer channels, as well as a 1/4" unbalanced mix output that condense both signals to a single channel for a direct connection into a PA speaker.

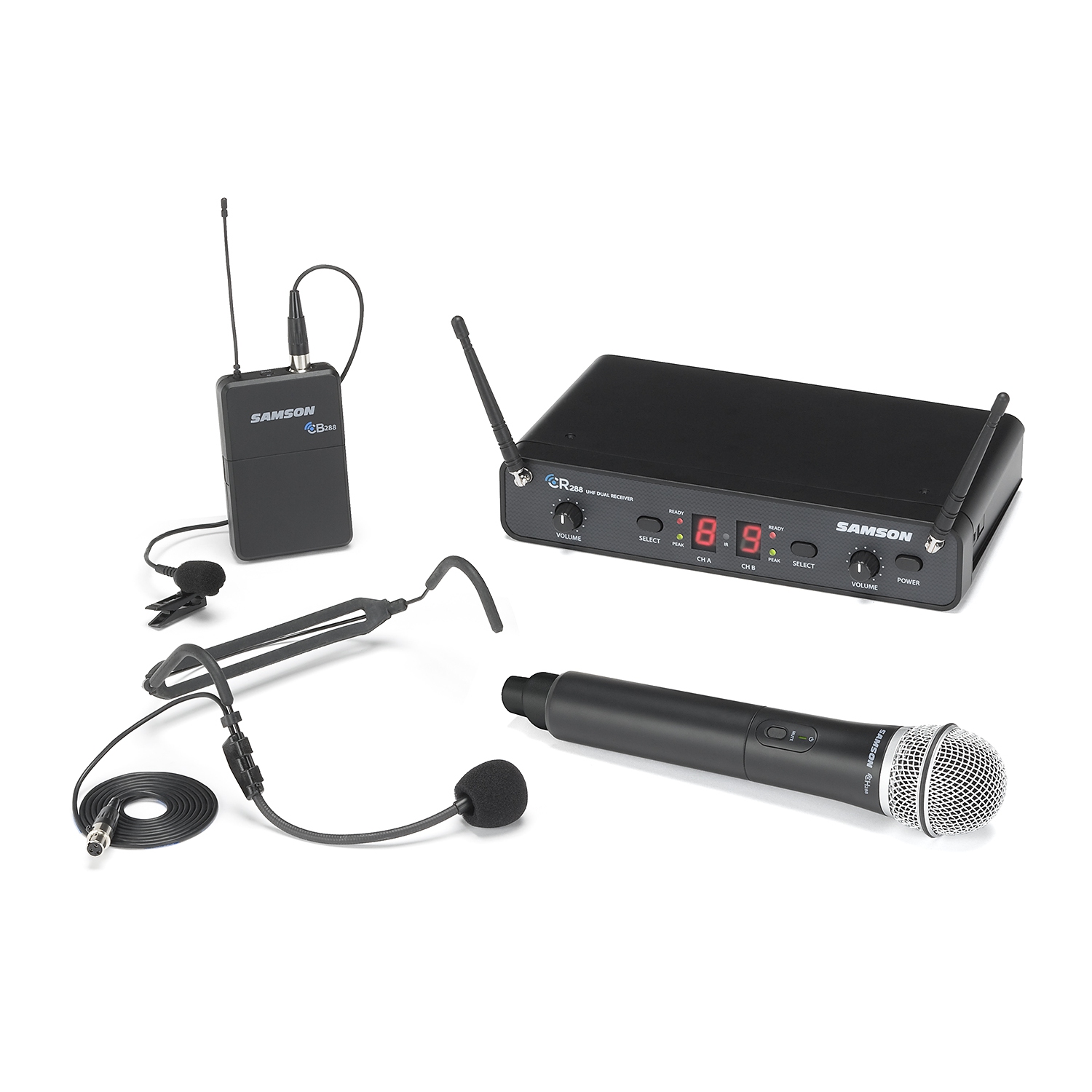

The Concert 288 All-In-One features a CH288 Handheld Transmitter with a Q6 Dynamic Microphone capsule, as well as a CB288 Beltpack Transmitter. To pair with the CB288, system also includes both an LM5 Lavalier Microphone and an HS5 Headset Microphone (both with locking connectors). These mic options bring maximum versatility to any dual-user application, particularly duet performances, as well as audience participation and interview situations. The transmitters, which can operate for up to eight hours on two AA batteries each, are engineered to the finest detail to provide the ultimate in sound reproduction.
Details
System
* Band: H
* Frequency Band: 470 to 518 MHz
* Working Range: 300' (100 m) line of sight
* Frequency Response: 50 Hz to 15 kHz
* Dynamic Range: less than 100 dB A-weighted
* Signal to Noise: Less than 85 dB
* Operating Temperature: 14 to 140F (-10 to 60C)
* Tone Key Frequency: 32.768 kHz
Beltpack Transmitter
* Input Connector: Mini-XLR (P3)
* Input Impedance: 1 MOhms
* Input Gain Range: 38 dB
* RF Power: 10 mW EIRP
* Power Requirements: 2x AA (LR6) alkaline batteries
* Battery Life: 8 Hours
Handheld Transmitter
* Microphone Element: Q6 dynamic
* Input Gain Range: 28 dB
* RF Power: 10 mW EIRP
* Power Requirements: 2x AA (LR6) alkaline batteries
* Battery Life: 8 hours
Receiver
* Audio Output Level - Mix Unbalanced: +14 dBu, Balanced: +14 dBu
* Audio Output Impedance: Unbalanced - 1 kOhms, Balanced - 470 ohms
* Sensitivity: -100 dBm / 20 dB sinad
* Image Rejection: greater than 50 dB
* Operating Voltage: 15 VDC 300 mA
