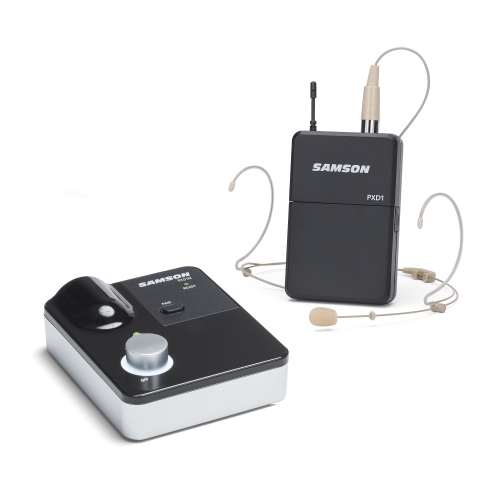

Samson makes wireless easier than ever with the XPDm Headset Digital Wireless System, a unique wireless microphone solution that is ideal for presenters, fitness instructors, educators and interviewers. This digital wireless system operates on the 2.4GHz license-free frequency and offers professional full-range audio and 100 of wireless operation at an unbeatable value.
Easily integrate the XPDm Headset System into your audio setup with a lightweight and portable RXD1M receiver that has XLR, 1/4 and 1/8 outputs. Simply pair the handheld PXD1 transmitter to the receiver via the pair button for straightforward synching. Turn the RXD1M into a dual-channel system by connecting an additional XPD Series USB digital wireless system via the USB port on the receiver.
Digital Wireless Technology
The XPDm Lavalier System delivers high-quality audio using 2.4GHz digital transmission. This wireless technology allows the microphone transmitter to send an uncompressed signal to the receiver and offers a greater signal-to-noise when compared to traditional wireless systems.
Ready Set Headset
The PXD1 beltpack transmitter allows for 100 of wireless range and provides up to eight hours of use on two AA batteries. The DE5 Omnidirectional Headset Microphone is a unique double ear headset that is designed to hold the mic in place when the user is in motion. The omnidirectional pickup pattern captures vocals for a clear and articulate sound regardless of the position of the capsule to the sound source. Included is a clothing cable clip for inconspicuous and unobtrusive cable placement as well as a windscreen to reduce wind noises and P-pops.
XPDm Headset Digital Wireless System
Dual-channel, high performance digital wireless system
Operates on 2.4GHz License-free frequency
RXD1M Tabletop Receiver
Balanced XLR, unbalanced and unbalanced 1/8 outputs
USB port for adding Samson XPD Series wireless system
One-touch pairing button
Rotary volume knob with integral power switch
PXD1 Beltpack Transmitter
Includes DE5 Omnidirectional Headset Microphone
Offers up to eight hours of battery life using two AA batteries
100 operating range
RXD1M Digital Receiver
Simultaneous Systems: 2
Working Range: 100' (30m) line of sight
Working Frequency: 2.404~2.476GHz
Modulation type: GFSK
Audio Frequency Response: 20Hz16KHz
T.H.D.: 85dB
Audio Output Level
From Φ3.5 & Φ6.3 Jack (unbalanced): 5dBu
From XLR Jack (balanced): 5dBu
Audio Output Impedance
From Φ3.5 & Φ6.3 Jack (unbalanced): 2KΩ
From XLR output jack (balanced): 4.5KΩ
RF Sensitivity: -78dBm/20dB SINAD
Operating Voltage: 5V/500mA
Product Dimensions: 4.25" (110mm) x 3.75" (95mm) x 1.5" (39mm)
Product Weight: 0.33lb (152g)
