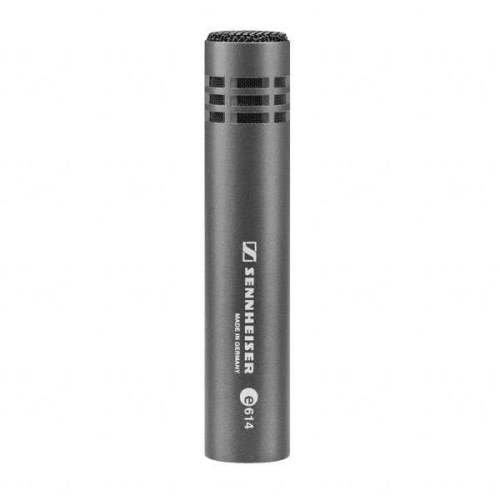

Sennheiser e 614 Super-cardioid Drum and Percussion Overhead Microphone

The e 614 is a super-cardioid condenser microphone, designed for demanding instrument recordings and performances that require extended frequency response, high SPL handling, fast transient response and compact size. While drumset overhead miking was the first design priority, the e614 also works exceptionally well on percussion setups as well, fitting comfortably into tight setups. The e 614 can handle high SPLs and features medium sensitivity, which ensures reduced bleed from other instruments on stage. Because of its excellent acoustic properties, this mic is also ideal for home recording.

Features

40-20,000 Hz

Designed for demanding applications where extended frequency range, high SPL handling, fast transient response and small size are required

Captures the shimmer and the contact of sticks, mallets and hands

Nearly flat response from 40 Hz to 20 kHz and a supercardioid pattern

What's in the box?

- e 614

- Microphone pouch

- Microphone clip MZQ 100

Specs

Connector: XLR-3

Frequency response: 40 - 20000 Hz

Transducer principle: pre-polarised condenser microphone

Weight w/o cable: 93 g

Pick-up pattern: super-cardioid

Sensitivity in free field, no load (1kHz): 3 mV/Pa = - 50dB (0 dB = 1 V/Pa)

Nominal impedance: 50 Ω

Min. terminating impedance: 1000 Ω

Phantom powering: 12 52 V / 3 mA

Equivalent noise level: 24 dB(A)

Maximum sound pressure level (passive): 139 dB/SPL
