Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, its the most accessible way to own the stage.

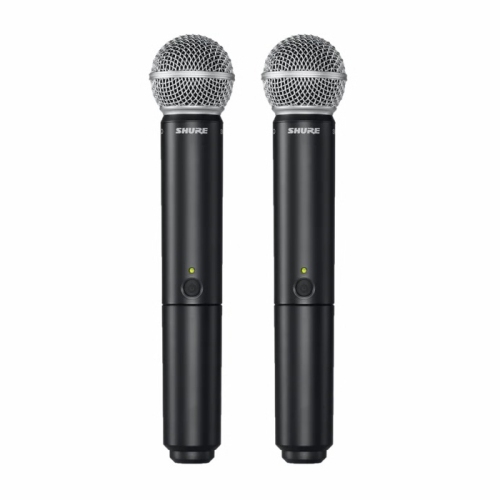

This 2-channel system includes the BLX88 dual-channel receiver, two SM58 handheld transmitters, power supply, 2x microphone clips, and user guide.

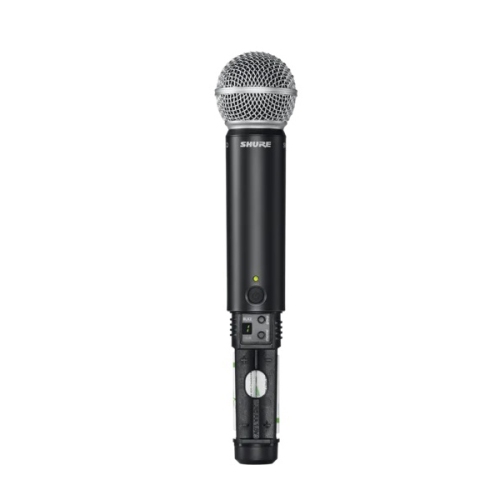

SM58 Cardioid Dynamic Vocal Microphone
The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.
Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoor
BLX88 Dual Wireless Receiver
The durable BLX88 offers simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems. Its front-panel dual-color LED status indicator displays green for normal levels and red when clipping for fast metering. It has two XLR outputs in additional to two instrument-level 1/4" outputs.
Features
* Up to 12 compatible systems per frequency band
* One-touch QuickScan frequency selection quickly locates the best frequency
* 1/4" and XLR audio outputs
* Up to 300 ft (91 m) operating range for total wireless freedom
Specifications
SM58 Handheld Transmitter
Microphone Type: Dynamic
Polar Pattern: Cardioid
Input Impedance: 150Ω
Sensitivity: -54.5dB
Frequency response: 50 to 15,000 Hz
Dimensions: 162mm x 51mm / 6.375" x 2"
Weight: 298 grams (10.5 oz)
BLX88 Dual Channel Wireless Receiver
Output Impedance: XLR connector: 200 ohm, 6.35 mm (1/4") connector: 50 ohm
Audio Output Level (Ref. 33 kHz deviation with 1 kHz tone): XLR connector: -27 dBV (into 100k ohm load), 6.35 mm (1/4") connector: -13 dBV (into 100k ohm load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: > 50 dB, typical
Dimensions: 388mm x 116mm x 40mm / 15.3" x 4.6" x 1.6"
Weight: 429g (15.1 oz.)
Power Requirements: 12 to 15 V DC @ 320 mA, supplied by external power supply (tip positive)
Available Frequency Bands:
BLX - H9 (512-542 MHz)
BLX - H10 (542-572 MHz)
BLX - H11 (572-596 MHz)
BLX - J11 (596-616 MHz)
