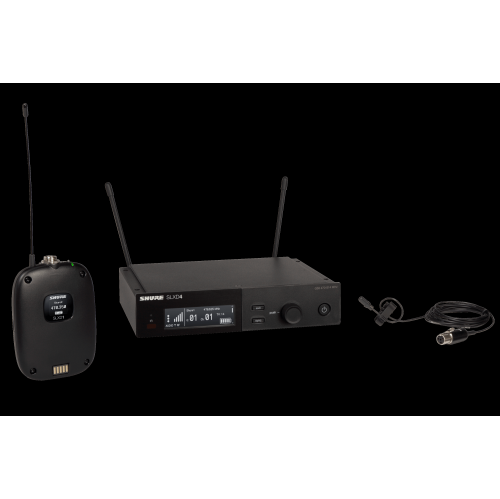

The SLXD14/DL4 Digital Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitter and DL4 IP57-rated waterproof subminiature omnidirectional lavalier microphone (black) with lavalier, antenna and rackmount accessories, and 2 AA batteries.

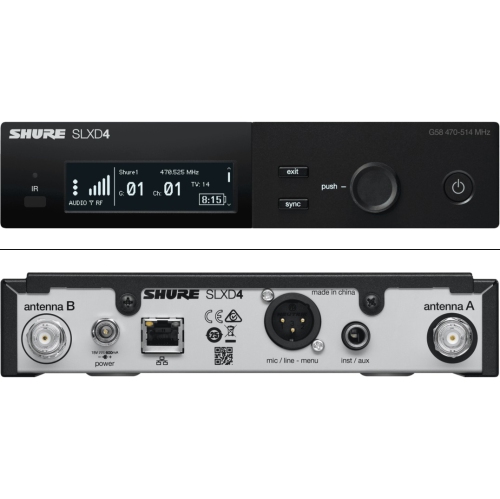

SLXD4 Single Channel Receiver
The SLXD4 receiver is a single-channel receiver. Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters.
Works with Wireless Workbench 7 - a FREE download from Shure.
Wireless Workbench is Shures free software for audio professionals that puts a full suite of RF spectrum management tools in one place to give you full command of your compatible wireless devices. Guarantee that you are prepared to succeed in any RF environment - no matter the location. See the video for more details.
SLXD4 Features* Transparent 24-bit audio
* Extended 20 Hz to 20 kHz frequency range
* 118 dB dynamic range
* Digital predictive switching diversity
* 44 MHz tuning bandwidth
* 32 available channels per frequency band
* Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
* Easy pairing of transmitters and receivers over IR scan and sync
* Automatic Channel Scan
* Compatible with Shure Wireless Workbench control
* Remote control via ShurePlus Channels mobile app
* Link multiple receivers for group scan and firmware updates via Ethernet port
* Third-party setup and control via Ethernet
* Elegant and easy-to-use interface with high-contrast LCD menu
* Guided setup mode installed in each SLX-D receiver
* Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
* Rugged metal construction
* System configurations include handheld transmitters with interchangeable microphone capsules, bodypacks with a range of lavalier, headset, earset and instrument micophones and single and dual rack-mountable receivers.

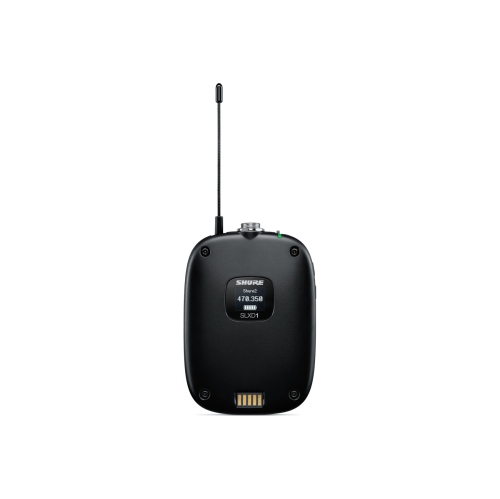

SLXD1 Bodypack Transmitter
The SLXD1 bodypack easily syncs with an SLX-D wireless receiver. A variety of microphone and cable choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

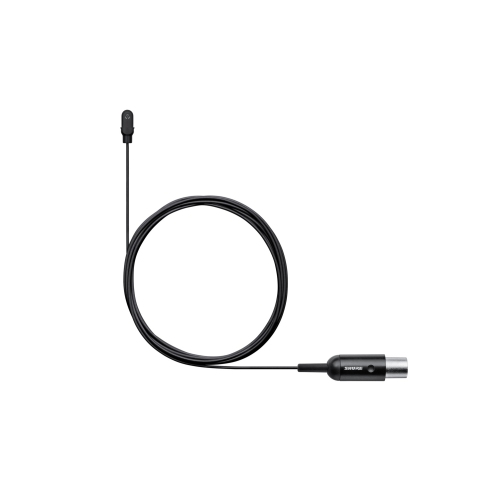

DL4 DuraPlex Omnidirectional Subminiature Waterproof Microphone
The Shure DuraPlex DL4 is a professional MEMS condenser lavalier microphone that is ideal for both speech and performance applications in challenging environments. The subminiature design and various mounting options provide discrete placement in applications for film, television, education, and corporate events. Each microphone is supplied with a storage pouch, single tie clip, sticky vocal presence frequency response cap, snap fit windscreen, foam windscreen, and TA4F threaded adapter.
DL4 Features* IP57 Certified dust resistant and waterproof/sweatproof headset
* 5mm omnidirectional subminiature design for discrete placement and improved gain before feedback
* 1.6mm PLEX Cable technology, paintable cable, and no memory effect
* Professional sound quality for speech and performance applications
* High RF immunity, compatible with digital wireless systems without RF interference
* Attachable Presence Cap included for tailored frequency response in speech applications
* Included furnished accessories for storage, mounting options, and wind protection
* TA4F and LEMO terminations for variable wireless system connectivity
What's Included
1 - SLXD4 Single Channel Receiver
1 - SLXD1 Bodypack Transmitter
1 - DL4 Professional Lavalier Microphone
1 - power supply
2 - 1/4 wave antennas
2 - 2 BNC cables
2 - BNC bulkhead Adapters
1 - rackmount kit
2 - AA batteries
1 - zipper bag
1 - user guide
Available Frequency Bands:
G58 (470-514 MHz)
H55 (514-558 MHz)
J52 (558-616 MHz)
