From lecture halls to houses of worship to performance venues, SLX-D delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring single half-rack and dual full-rack receiver options, handheld and bodypack transmitters and a wide selection of vocal, lavalier, headset and instrument microphone system configurations. Compatible with Shure UHF wireless antenna distribution and remote antenna accessories.

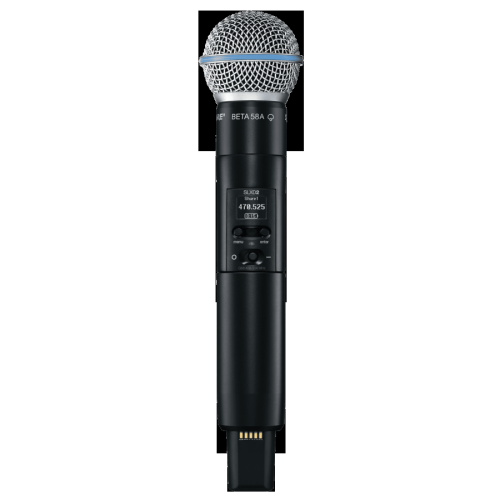

The industry-leading digital wireless technology and design of the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances. The Shure BETA58A is a precision-engineered supercardioid microphone capsule optimized for lead vocal applications. A brightened midrange and bass roll-off give lead and background vocals more presence in the mix while the neodymium magnet provides a higher output level for exceptionally clear sound.
Features
* Transparent 24-bit digital audio
* Extended 20 Hz to 20 kHz frequency range (microphone dependent)
* 120 dB dynamic range
* Digital predictive switching diversity
* Operating range of 100 m (300 ft.)
* 44 MHz tuning bandwidth
* 32 available channels per frequency band
* Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
* Easy pairing of transmitters and receivers over IR scan and sync
* Up to 8 hours from 2 AA batteries or SB903 Li-Ion rechargeable battery
* Interchangeable microphone capsules
* Rugged metal construction
Specifications
Dimensions: 37.1 x 176 mm (1.46" x 6.938")
Weight: 147 g (5.2 oz)
Housing: Aluminum
Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
AUDIO INPUT
Interchangeable microphone capsules
Configuration: Unbalanced
Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
RF OUTPUT
Antenna Type: Integrated Single-Band Helical
Occupied Bandwidth: < 200 kHz
Modulation Type: Shure Propietary Digital
Power: 1 mW/10 mW
Available Frequency Bands:
SLX-D G58 (470 to 514 MHz)
SLX-D H55 (514 to 558 MHz)
SLX-D J52 (558 to 602 MHz + 614-616 MHz MHz)
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
For use with SLX-D Wireless Systems.
