Overview

Through relentless research in our North Carolina Headquarters, Sundown optimized a 2.5” voice coil and a truly unique motor design to get the deepest possible bass response out of a 10” subwoofer.

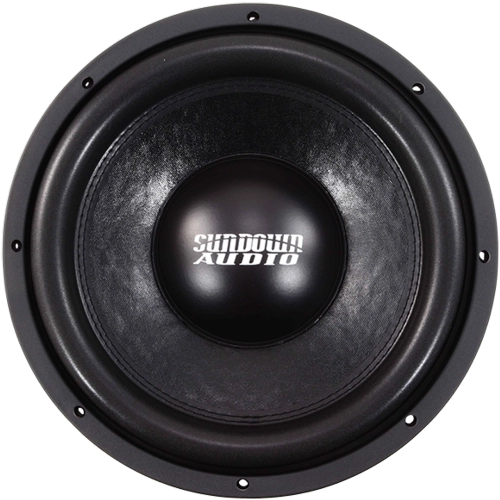

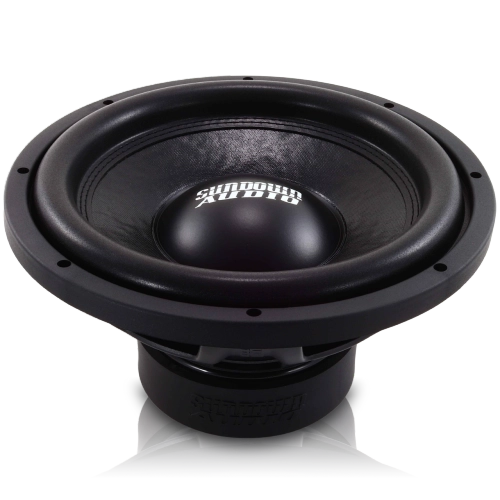

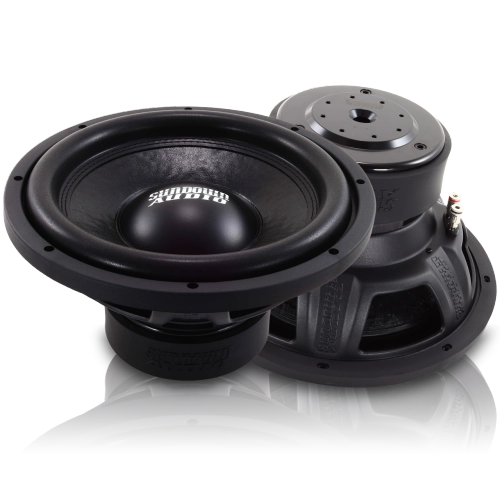

Sundown Audio E12 v.4 E-Series 12" 500W RMS Subwoofer - Dual 2 Ohm

Model: E-12 v.4 D2
Web Code: 19382447
Sold and shipped by | 4.4 seller rating (157 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

The subwoofer showcases a distinctive motor design, featuring a heavily vented magnetic gap and solid pole piece, enabling exceptional thermal power handling. The spider itself is a high strength poly-cotton blend designed to handle the full capacity of the motor. To provide an additional level of ruggedness the spider is bolted down and glued to the frame. Its motor geometry allows for a remarkable 14mm one-way linear Xmax, delivering excursion equivalent to far larger cones.

Specifications:

500 Watts RMS / 1500 Watts Peak

Dual 2 voice coils

Optimized for ported enclosures

Class-leading 14mm Xmax

Double-stacked magnet

Vented magnetic gap & pole piece for superior cooling

High strength stamped steel frame

High temp 4-layer copper voice coil wire

High-quality push terminals

Stitched-on Mini-XL tinsel leads

Enclosure Specifications:

Sealed Enclosure: Not recommended

Ported Enclosure: 1.75 cu ft

Recommended Tuning: 35hz

Recommended Port Area: 26 sq in

Displacement: 0.12 cu ft

Depth: 6.50"

Outside Diameter: 12.25"

Cutout: 11.125"

Thiele-Small Parameters:

Dc Resistance (Re): 4.030 Ohms

Resonance Frequency (Fs): 28.480 Hz

Equivalent Volume (Vas) : 53.059 L

Electrical Factor (Qes): 0.509

Mechanical Factor (Qms): 5.249

Total Factor (Qts): 0.464

Bl Factor (BL): 17.576

Mechanical Mass (Mms): 217.987 g

Mechanical Compliance (Cms): 143.258 uM/N

Sens (dB @ 1w/1m): 85.7

Xmax: 14mm
