Asterisk FreePBX Open Source RackMount IP PBX Appliance
Model: C512
Intel XEON E3-1220 CPU, 8GB RAM, 1TB HDD
Asterisk Installed
Unlimited Extensions
Digital Receptionist
Ring Groups
Remote Extensions
Follow Me
Conference Bridge
Supermicro Motherboard X9SCL
Supermicro Heavy Duty 19" 1U Rackmount Steel Case
Office PBX VoIP Telephony System
A. Software Component:
Asterisk is an open telephony platform that combines the best of the open source telephony tools into one easy-to-install package. Based on an enhanced LAAMP (an open source bundle of Linux®, Apache?, Asterisk®, mySQL®, and PHP), the trixbox® dashboard provides easy to use, Web-based interfaces to setup, manage, maintain, and support a complete IP-PBX system.
Asterisk comes stocked with hundreds of features including:
Unlimited Extensions
TDM/SIP/IAX Trunks
Remote Extensions
Voicemail
Fax Support
Voicemail to Email
IVR Menu System
Ring Groups
Call Queues
Conference Rooms
Follow-Me
Time-Based Routing
Music On Hold
Paging and Intercom
Web Access to Voicemail
Admin Status Screen
Package Manager (for easy updates)
Phone Provisioning
Network Settings
Enhanced CDR Reports
Echo Cancellation - OSLEC (Open Source Line Echo Cancelation)
B. Hardware Components:

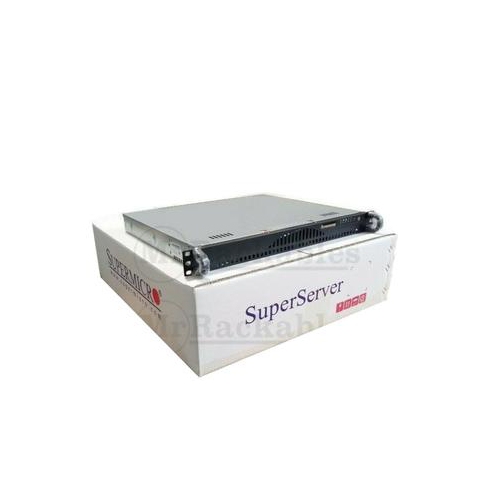

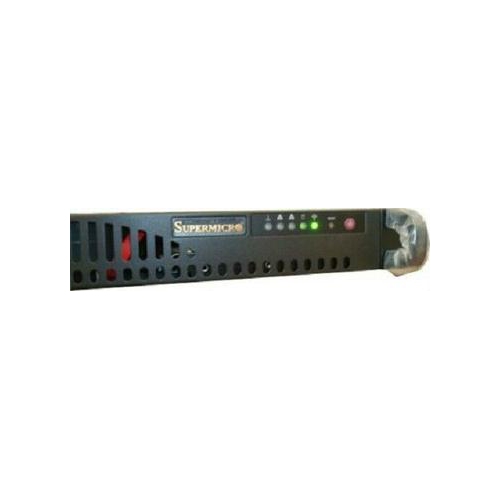

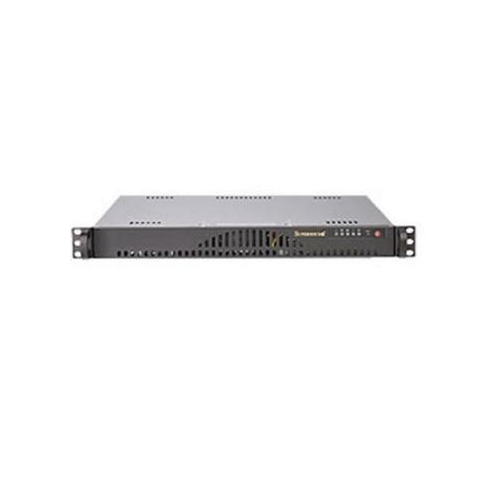

1. Supermicro 512L 19" Rack Mount Server Case
Brand New 1U Heavy Duty Rack Mount Server 1.75" x 19" x 14.25"
Black Server Finish
Ear Mount Rack Mountable Ready
1 Power FAN
3 Full PCIe Slot Expansion (can accomodate one PCI Asterisk Card, 4 Ports or T1/E1 Card)
100-240v 200W Power Supply
2. Intel XEON X9SCM-R Supermicro Motherboard)
4GB DDR2 RAM Memory included
320GB HDD or higher capacity drive
Integrated Graphics
PS/2 Keyboard Mouse Connector
Package Model: C512-XEON-X9SCM-F.8G1TB
What's Included in this package
1 unit Brand New C512-D410 Rackmount FreePBX PBX Ready System
Free 30 Day Email Support (Hourly or Annual support packages may also be purchased from us or directly from Fonality)
System Requirements:
High Speed Internet Connection.
An Static IP Address from your ISP (suggested but not a must)
An Existing Router or Switch to accept LAN connection
A Windows 2000 or XP Computer to use for configuring your Asterisk and your VoIP Phones.
Basic knowledge of the WEB, Networking and Windows. Knowing Linux is a plus, but is NOT a requirement.
Default settings are applied on this PBX system. You should ensure that you have non-conflicting ports, and have administrator rights and proper access to your internet LAN, router and firewall. A Static IP is suggested to be assigned to the FreePBX PBX for easy configuration.
Default passwords are set on the system. If you change passwords, make sure you have a way of recalling your password. We cannot support any system when you do not have your password keys.
