Overview

Taramps presents the amplifier module MD 5000.1 in the 1 ohm or 2 ohm version. It has been carefully developed with the highest technology, offering high performance and quality for the most varied automotive sound systems, serving the entire frequency range, in other words, it is a FULL RANGE module. It is an amplifier classified as mono, has a channel with a maximum power of 5000 Watts RMS. Welcome to the sound world of Taramps.

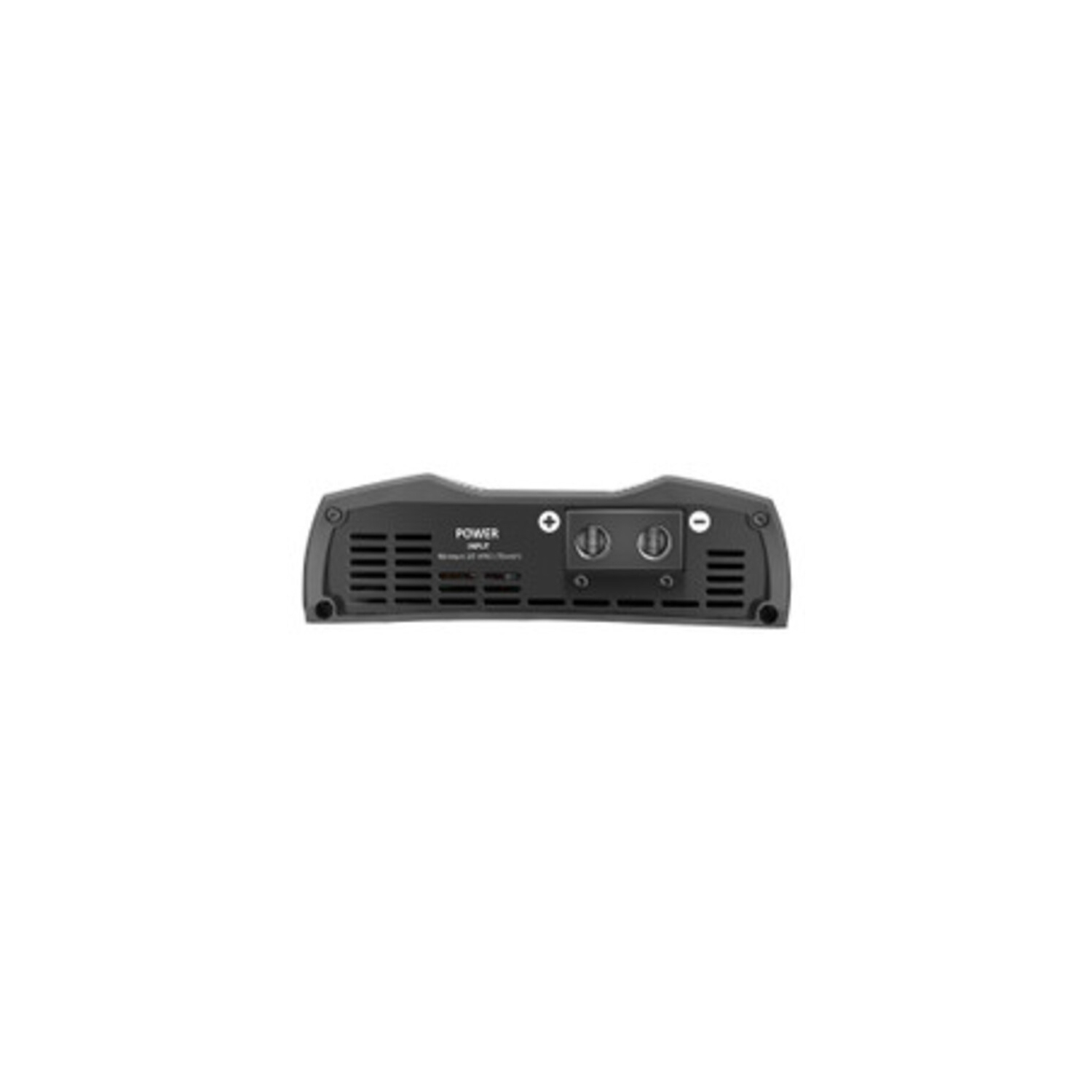

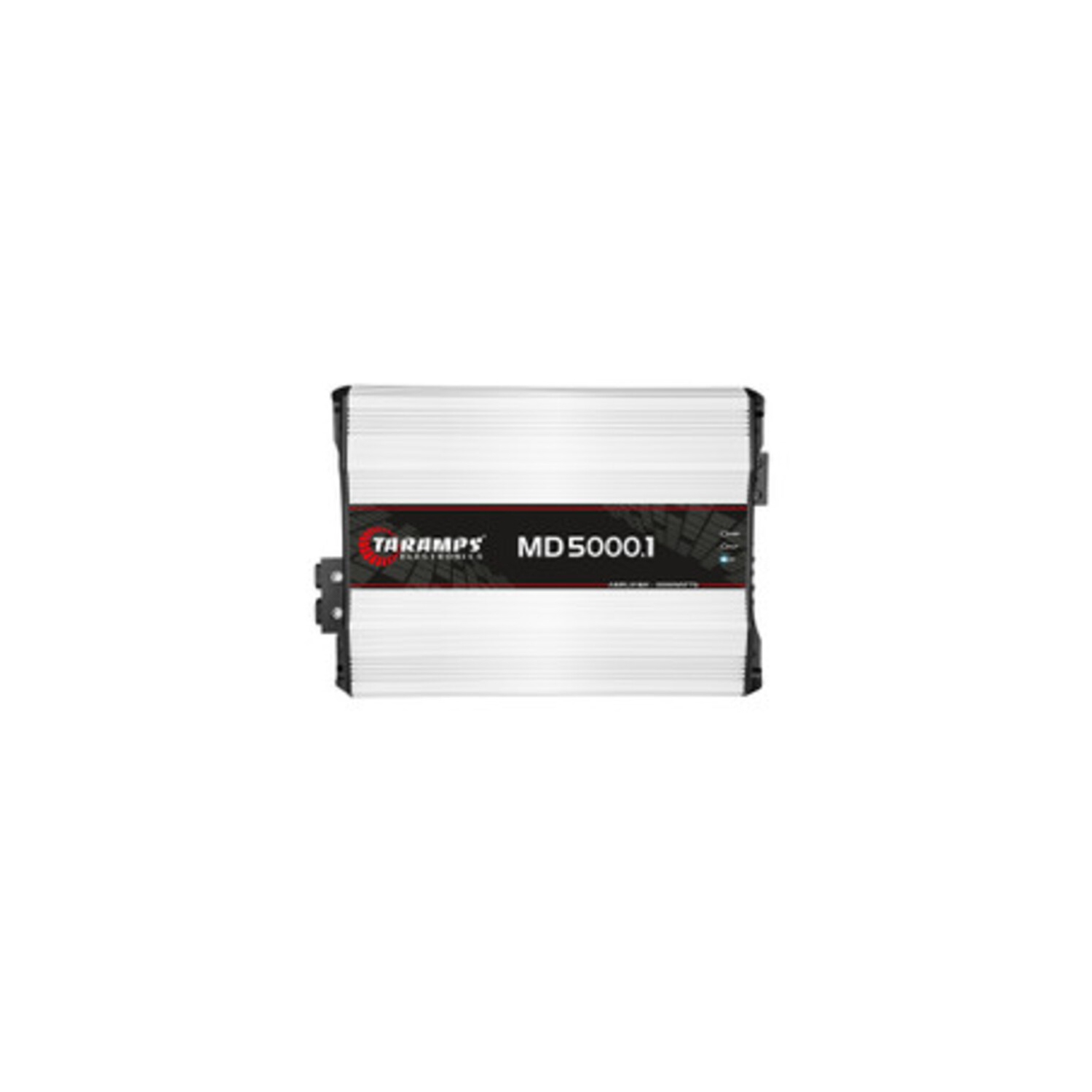

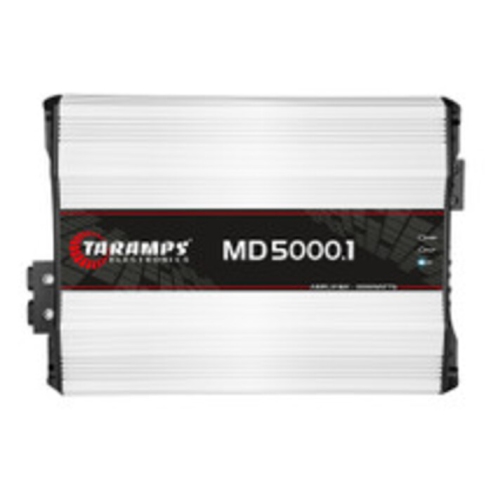

Taramp's MD 5000.1 High Power Car Amplifier

Model: MD 5000.1 - 1
Web Code: 19435055
Sold and shipped by | 4.5 seller rating (167 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

About: Taramp's MD 5000.1 High Power Car Amplifier (Taramp's Authorized Canadian Dealer)

Taramps presents the amplifier module MD 5000.1 in the 1 ohm. It has been carefully developed with the highest technology, offering high performance and quality for the most varied automotive sound systems, serving the entire frequency range, in other words, it is a FULL RANGE module. It is an amplifier classified as mono, has a channel with a maximum power of 5000 Watts RMS. Welcome to the sound world of Taramps.

Technical Information

MD 5000.1 – 1 OHM

OPERATION CLASSD

NUMBER OF CHANNELS 01

MAXIMUM POWER @ 12,6 VDC - 1 OHM: 5000W RMS

@ 12,6 VDC - 2 OHMS: 3200W RMS

INPUT SENSITIVITY 220mV

SIGNAL TO NOISE RATIO>90dB

FREQUENCY RESPONSE 10Hz ~ 10KHz (-3dB)

CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable

CROSSOVER LOW PASS (LPF) 90Hz ~ 10KHz (-12dB/8ª) Variable

BASS BOOSTFreq.: 35Hz ~ 55Hz

Boost: 0 ~10dB (50Hz)

EFFICIENCY 81%

INPUT IMPEDANCE15K Ohms

OUTPUT IMPEDANCE 1 Ohm

PROTECTION SYSTEMShort-Circuit to output, short on output compared to GND, low impedance at output, High/Low supply voltage and thermal protection.

MIN. SUPPLY VOLTAGE 9VDC

MAXIMUM POWER SUPPLY VOLTAGE 16VDC

CONSUMPTION AT REST 1.20A

MAXIMUM MUSIC CONSUMPTION 244.50A

MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL489A

DIMENSIONS (H X W X D) 8.98" x 2.76" x 12.87" (228 x 70 x 327mm)

WEIGHT 9.28lb (4.22Kg)

EAN 7898556844697

Precautions

Do not mount amplifier to speaker box. Cyclic Vibrational Failure is #1 fail rate of amplifiers and these are lighter than most so their potential is higher if not followed.

Do not wire this amplifier lower than 1 ohm nominal Impedance. (Equivalent to ~0.7 ohms DCR or Resistive measurement via DMM).

Do not clip amplifier above 15.0v for extended periods of time

Do not drive amplifier into clipping + protection for extended periods of time (exceeding 20% THD)
