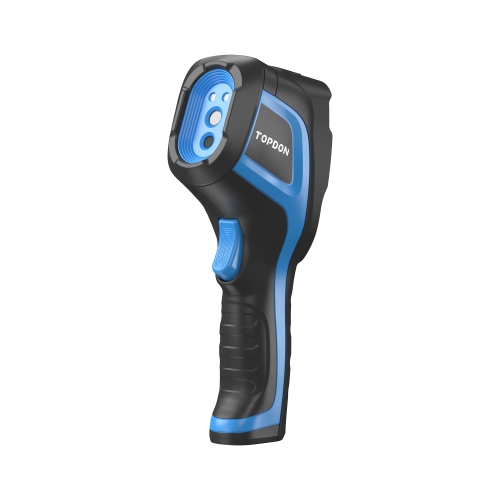

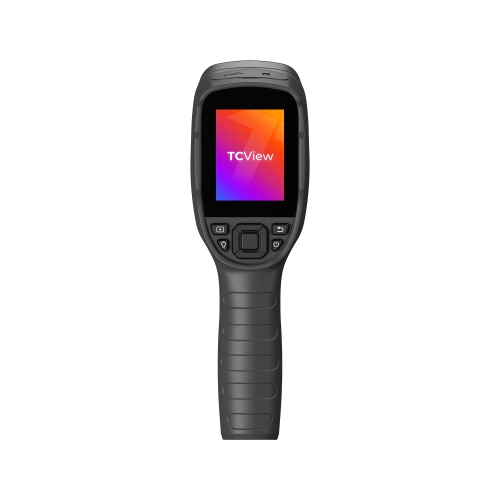

TOPDON TC005 Handheld Thermal Imaging Camera (256x192 Res. - Dual Camera)

• High Resolution & Thermal Sensitivity:

The TC005 features a high-resolution thermal camera with a resolution of 256x192.This allows users to capture more details and say goodbye to blurry images. A high thermal sensitivity of 0.05 allows the TC005 to distinguish between tiny temperature differences.

• Three Measurement Modes & Auto-Detection:

The TC005 has three different measurements to detect center, hot and cold spots. The automatic detection feature allows users view temperature differences more visually.

• Wide FOV:

The TC005 also features a wide 56° FOV to easily capture more objects in view. There is also no need to adjust focal length.

• Wide Measurement Range & Accuracy:

The TC005 features a wide temperature measurement range of -20 - +550. It can also measure temperatures with ±2 accuracy for precise temperature measurements. NETD of this high-precision infrared sensor is less than 40mK, measurement accuracy is 0.1 degree, and error is less than 2%. This is to ensure the upmost accurate thermal readings.

• Four Imaging Modes:

The TC005 has four imaging modes to identify target in a timely manner. These include: Thermal Imaging mode, Dual Light mode, Visible Light mode, and Image in Image mode.

• PC Image Analysis and Instant Projection:

Professional analysis software allows users to easily save and share diagnostic data on a PC. The TC005 also supports screen projection on a PC as well.

• Extended Battery Life:

A powerful integrated battery allows the TC005 to have a 12-hour runtime.

• Built-in Fill LED Light:

A built-in LED light allows users to record thermal readings without an additional light source.

• Built to Last:

IP54 rated for protection against water and dust and 2m drop proof allows you to be more carefree while using the device.

• Specs:

· Working Temperature Fahrenheit: 14°F to 122°F

· Working Temperature Celsius: -10 to 50

· Storage Temperature Fahrenheit: 14°F to 131°F

· Storage Temperature Celsius: -10 to 55

· Spectral Range: 8 14m

· Product Width (inches): 2.91

· Product Weight (lbs): 1.15

· Product Length (inches): 9.33

· Product Height (inches): 3.54

· Object Temperature Range Feherheit: -4°F to 1022°F

· Object Temperature Range Celsius: 20 to 550

· IR Resoltuion: 256 x 192 Pixels

· IP Rating: IP54

· Heat Sensitivity: 40mk

· Focal Length: 0.12 in. (3.2 mm)

· Drop Rating: 2m

· Display Size: 2.8 Inch
