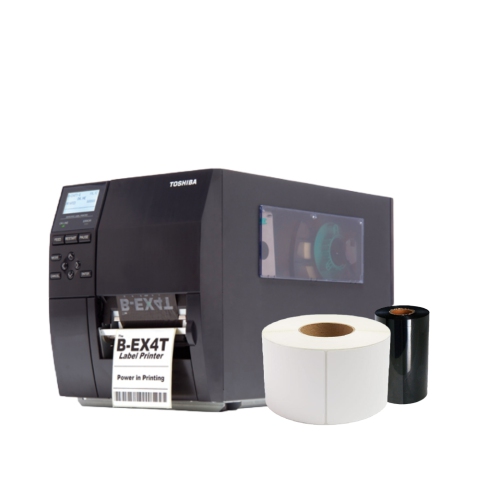

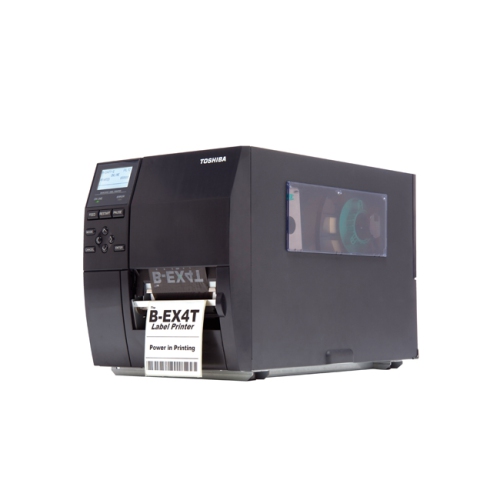

Toshiba Tec B-EX4T1, thermal transfer / Direct thermal, USB, Ethernet, Label printer

Introducing the B-EX series – a premium range of industrial printers for a wide variety of applications with a mid-range price tag, enhanced performance, serviceability and truly green credentials.

Features

Low Power Consumption

The Toshiba B-EX4 at lower than 9W in stand-by, is the ecological industrial printer that qualifies for a Energy Star program, With a nearly 40 % overall lower power consumption on stand by power compared to its predecessor.

Fast & Flexible

With a speed of 14 ips, the B-EX4 boasts a 40% improvement in productivity on the SX range (10 ips). Ethernet and USB 2.0 are standard with options for parallel, serial and wireless LAN. It is fully compatible with the B-SX range, allowing for the swift migration of legacy printers. In addition, advanced processing capabilities facilitate high throughput.

Usability

Continuing on from the easy operation of the SX range, the B-EX range also incorporates a user-replaceable snap-in printhead and platen roller, further reducing maintenance costs. The unique intuitive graphical LCD ‘helpdesk’ display improves usability and prompts even the novice user to take immediate corrective action where necessary, keeping user training to a minimum.

Durability

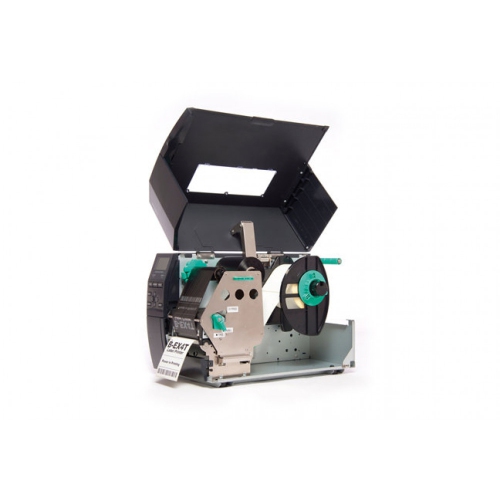

Toshiba has packaged the superior design elements of the market-leading B-SX4 into the matt-black B-EX4 to provide customers with a high-end industrial product at a mid-range price. Features include: side opening; double ribbon motor control; automatic centre media loading; near-edge or flat printhead; optional ribbon save; BCI(Basic Command Interpreter) compatibility.(Toshiba uses Basic Command Language to control the printer’s interface.)

Specifications

B-EX4T1-GS12

CHARACTERISTICS

-Printhead Near-edge

-Dimensions H:310mm(12.2″) x W:278mm(10.9″) x D:460mm(18.2″)

-Interface USB 2.0, Ethernet

-Memory 32Mbytes SD RAM, 16Mbytes Flash ROM

PRINT

-Method Direct thermal / Thermal transfer

-Print Width 104 mm (4.09″)

-Max. Print Speed 14 ips (355 mm/sec)

-Resolution 203 dpi

-Font Bitmap and outline

-Barcode Includes GS1 DataBar (RSS) compatibles

MEDIA

-Paper Width 120 mm (4.7″)

-Paper Alignment Center

-Paper Roll 200 mm (7.9″)

-Std. Ribbon Length 600 m (1980′)
