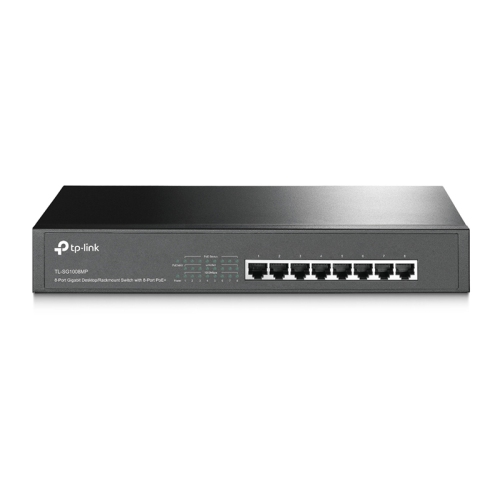

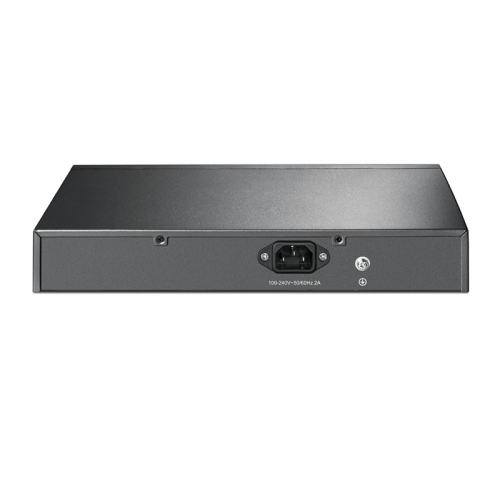

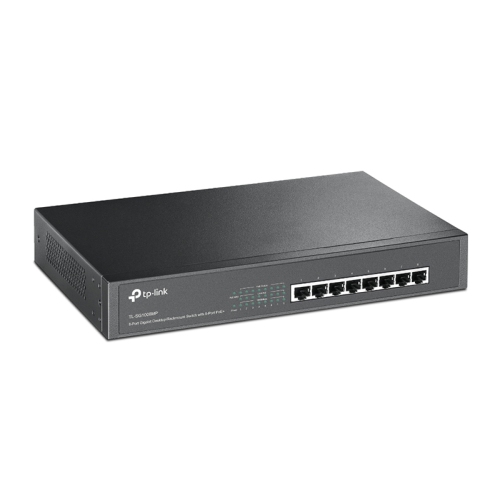

TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

Features

-8 10/100/1000Mbps RJ45 ports

-Equipped with 8 PoE+ ports to power 8 PoE devices at the same time

-Works with IEEE 802.3af or 802.3at compliant up to 30W per port device

-Innovative energy-efficient technology reduces power consumption

-Rack mountable with included rack mount bracket

-Total PoE power budget up to 126W

-Plug and play design, no configuration required

-Warranty:

Specification

Interface:

8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media:

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity:

1

Physical Security Lock:

No

Power Supply:

100-240VAC, 50/60Hz

PoE+ Ports(RJ45):

Standard: 802.3at/af (30W)

PoE+ Ports: 8 Ports

Total PoE Budget: 126W

Backbound Bandwidth:

16Gbps

Mac Address Table:

4K

Buffer Size:

1.5Mbits

Dimensions:

( W x D x H )11.6 × 7.1 × 1.7 in.

(294 × 180 × 44 mm)

Mounting:

13" and 19" 1U rack mountable

Max Power Consumption:

9.9W(no PD load)

144.4W(with 124W PD load)

Max Heat Dissipation:

33.7BTU/h(no PD load)

492.6BTU/h(with 124W PD load)

SOFTWARE FEATURES:

Advanced Features:

Compatible With IEEE 802.3af/at Compliant power devices (PD)

Port Priority Function

MAC Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control

Transfer Method:

Store-And-Forward

OTHERS

Certification:

FCC, RoHS

Package Contents:

TL-SG1008MP

Power Cord

Installation Guide

Rackmount Kit

Rubber Feet

Consumption:

9.5 watts (max. no PD connected)

140.1 watts (max. with 126w PD connected)

Environment:

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
