Tripp Lite SP2POST 2-Post Open Frame Rack Server Cabinet 45U
Amazon
null
From the Manufacturer
Do you need an economical rackmount solution for a secure network or data center environment? Tripp Lite has the solution. Our SR2POST Open Frame Rack is the cost-conscious way to accommodate your growing rackmount space requirements, particularly in areas where space is limited.

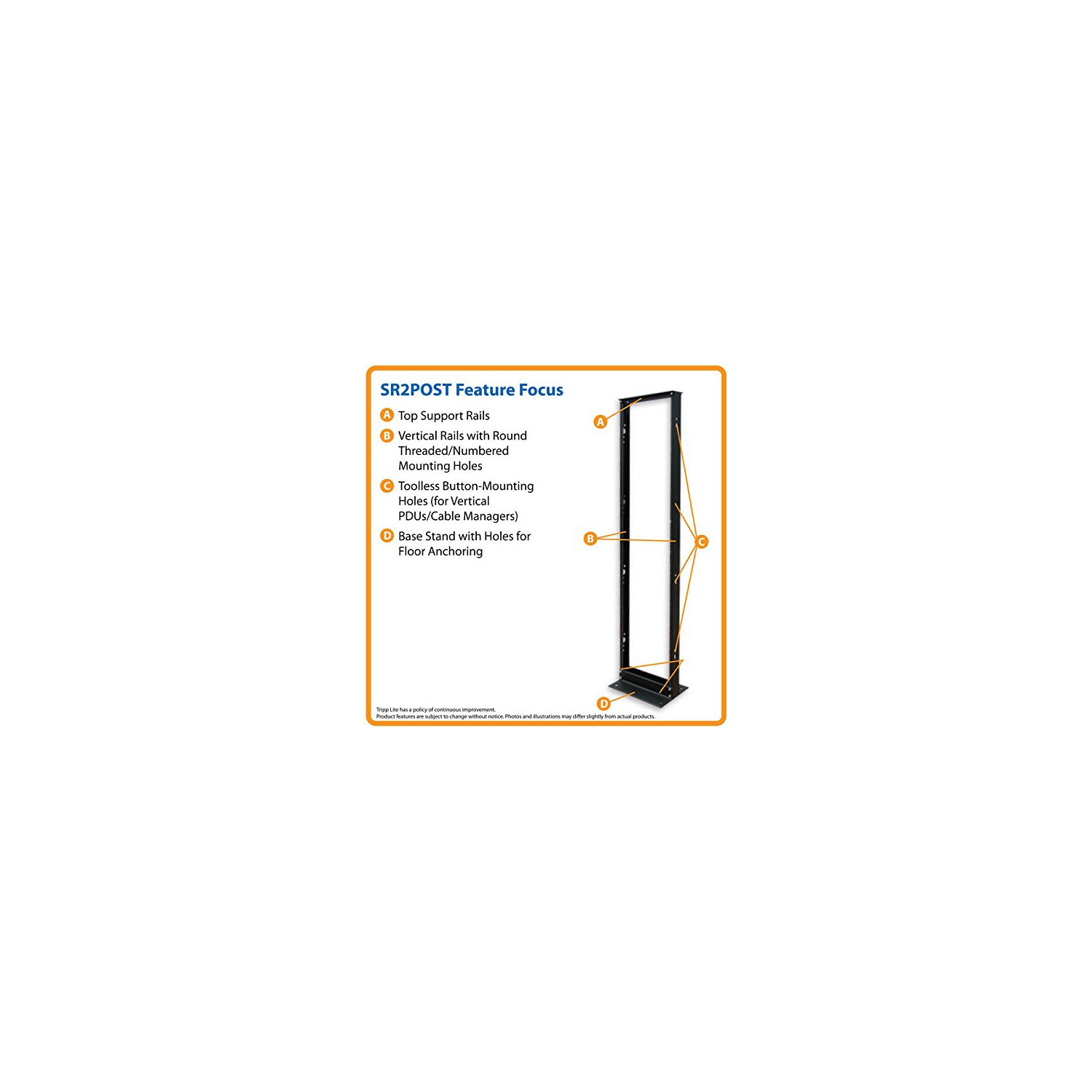

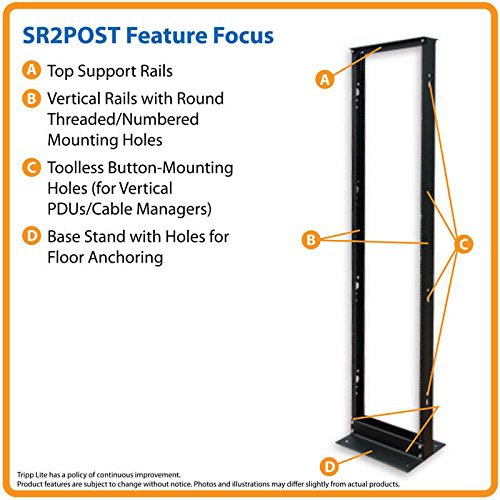

Key Features
Tripp Lite's SR2POST Open Frame Rack Offers:

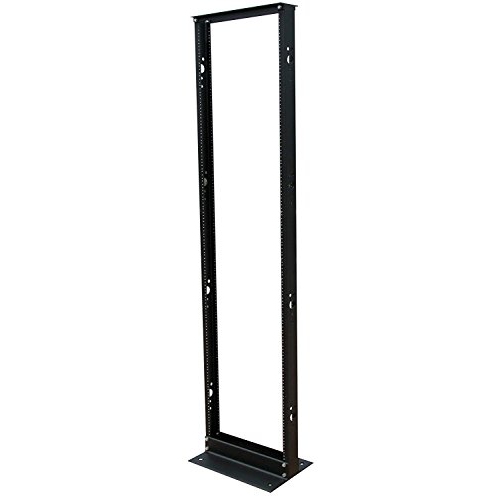

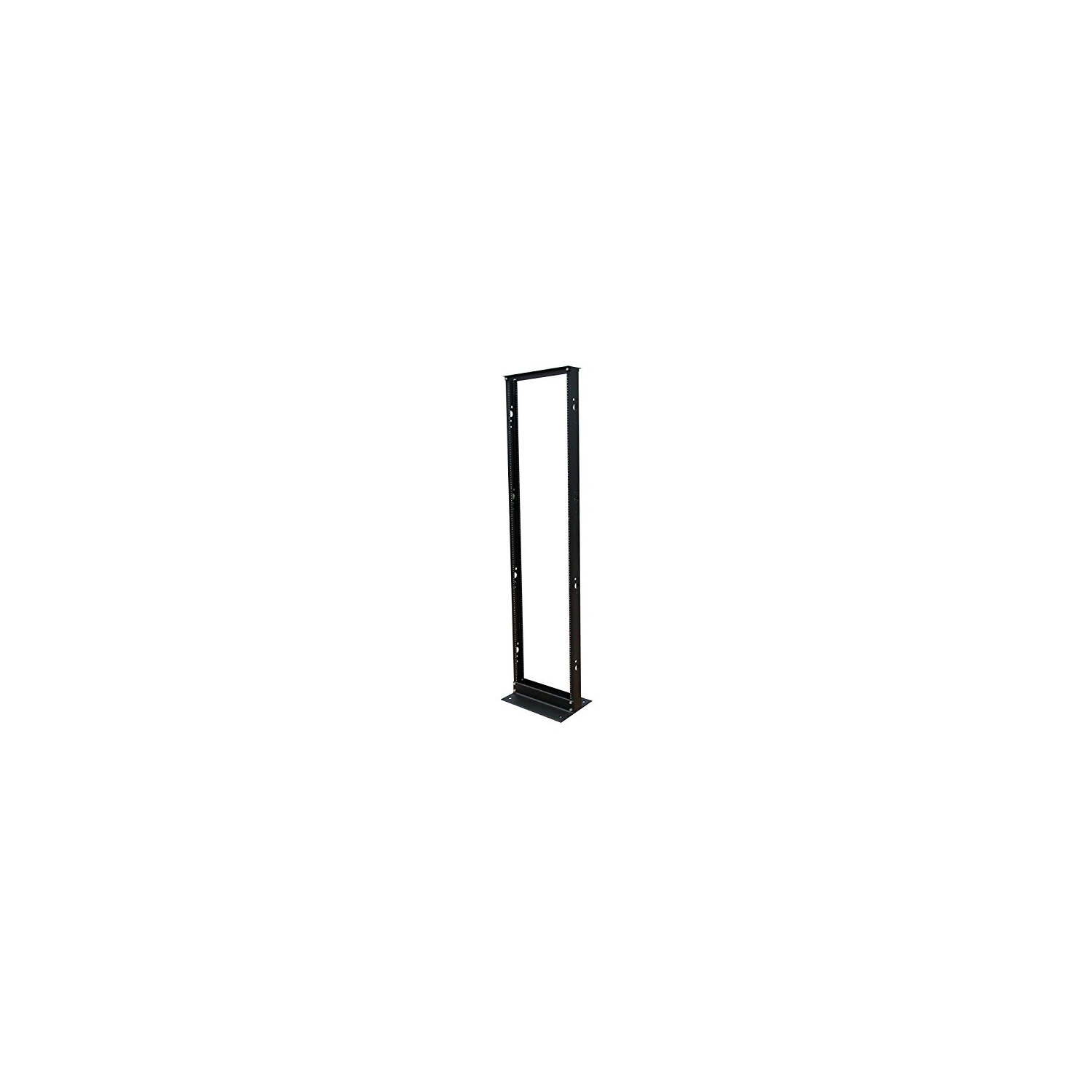

2-post 45U open frame rack organizes and secures rack equipment
Toolless mounting for vertical PDUs and cable managers
800-lb. load capacity
Heavy-duty aluminum construction
5-year warranty
The SR2POST is compatible with all standard 19-in. rack equipment that supports 2-post mounting
Economical Rackmount Solution

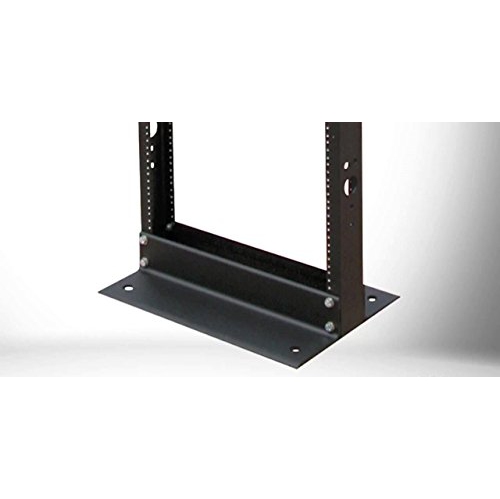

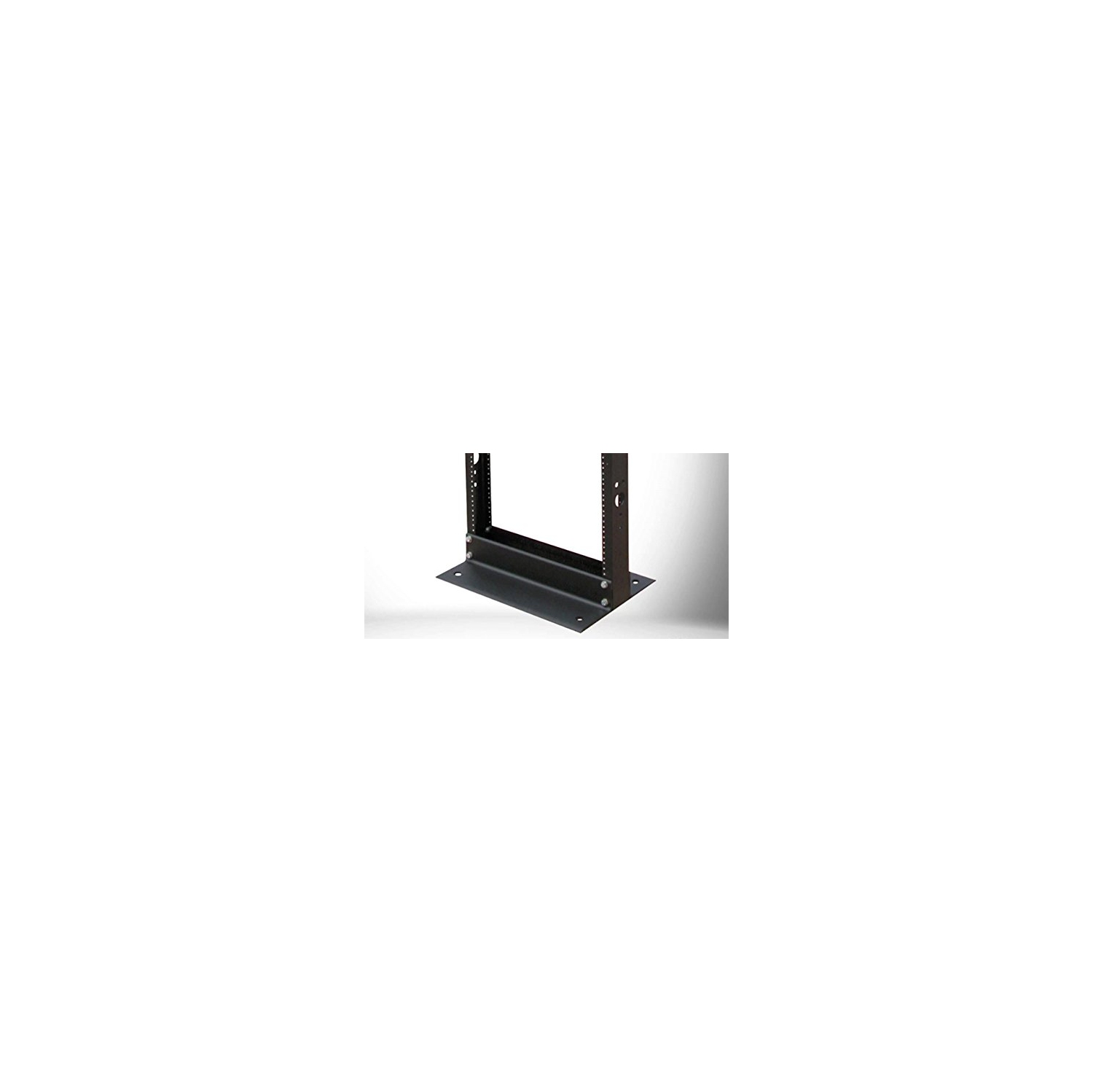

The SR2POST is ideal for growing businesses that require an economical rackmount solution. It provides 45U of rack space and can accommodate up to 800 lbs. of equipment. The SR2POST features heavy-duty aluminum construction, easy assembly and a self-squaring design with provision for bolt-down. For high-density applications, multiple units can be bolted together side by side.
Broad Compatibility
The SR2POST is compatible with all standard 19-in. rack equipment that supports 2-post mounting. Round threaded and numbered mounting holes simplify equipment installation. The open design provides easy access to equipment and cabling.
Convenient toolless button-hole mounting for vertical PDUs and cable managers
Toolless Mounting
The SR2POST features convenient toolless button-hole mounting for vertical PDUs and cable managers.
Optimized for Secure Environments
The SR2POST is an ideal solution for secure IT environments and other applications not requiring a lockable enclosure. It conserves valuable floor space, helps IT managers to better organize their equipment array, and simplifies access for equipment installation and servicing.
Technical Specifications
Model:
SR2POST
Rack spaces:
45
Load capacity:
800 lbs.
Height:
84.0 in.
Width:
20.3 in.
Depth:
4.75 in.
Weight:
29 lbs.
Material of construction:
Heavy-duty aluminum
Warranty:
5 years
Organize and Protect and Control Rack Equipment with Tripp Lite
Tripp Lite SmartRack™ Enclosures, UPS Systems and Rackmount Consoles provide reliable, cost-effective solutions for all rackmount equipment.
SMART1000RM1U SmartPro® UPS System
Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment in 1U of rack space. The SMART1000RM1U provides 1000VA/640W power capacity with 6 outlets arranged in 2 load banks. One USB port and one DB9 port with included cables and PowerAlert monitoring software provide complete power network monitoring and control. The SMART1000RM1U supports connected equipment for 15 minutes during power failures at a half load of 320 watts. $250,000 Ultimate Lifetime Insurance; 2-year warranty.
PDU1215 Power Distribution Unit
Basic rackmount PDU provides 15A 120V capacity with 13 total 5-15R outlets (1 front facing, 12 rear facing). Rugged all-metal housing and switchless design to prevent accidental shutoff. Supports 1U rackmount installation with included hardware; also suitable for 0U vertical installation in the cable management area of many rack enclosures. Lifetime warranty.
SR4POST SmartRack™ 45U 4-Post Open Frame Rack
The SR4POST supports 1000 lbs. of equipment in 45U of rack space. Heavy-duty steel construction; self-squaring design. Square, numbered mounting holes. Mounting depth is adjustable from 24 to 36 in. Toolless mounting for vertical PDUs and cable managers. 5-year warranty.
SR42UB SmartRack™ Enclosure
Premium 42U rack enclosure. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; toolless vertical mounting for PDUs and cable managers; preinstalled casters and leveling feet;
• 2-post 45U open frame rack
• Round threaded/numbered mounting holes, 800- pounds. capacity
• Toolless mounting for vertical PDUs and cable managers
• Heavy-duty aluminum construction, self-squaring design
• 5-year warranty
• 2-post 45U open frame rack
• Round threaded/numbered mounting holes, 800- pounds. capacity
• Toolless mounting for vertical PDUs and cable managers
• Heavy-duty aluminum construction, self-squaring design
• 5-year warranty
