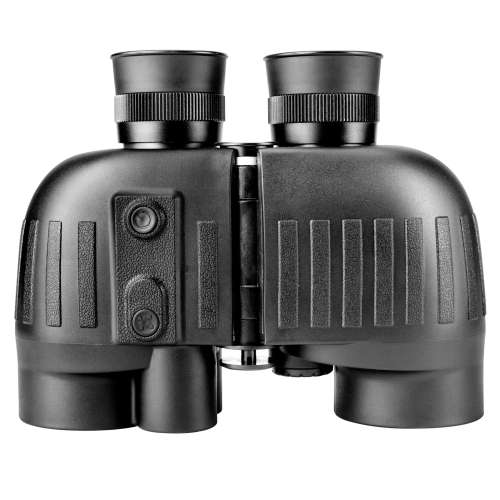

The TUTT B20 Laser Range Finder Binoculars are designed for precision and versatility, making them an essential tool for hunting, marine navigation, and various outdoor activities. Combining advanced laser technology with high-quality optics, these binoculars provide accurate distance measurements, altitude readings, angle detection, and real-time azimuth through an integrated electronic compass. With an 8x optical magnification and 40mm objective diameter, the B20 offers clear, detailed views, even over long distances.
Key Features
•Multi-Functional Laser Range Finder: Capable of measuring distances from 1m to 1500m with high accuracy (±1m for 1-600m, ±2m for 600-1000m, and ±3m for 1000-3000m), the B20 also includes altimetry and angle measurement functions, making it suitable for a variety of complex environments.
•High-Resolution LCD Display: The binoculars feature a high-transparency LCD display that provides clear data without obstructing the field of view. It delivers real-time information on distance, height, angle, and direction with quick data retrieval in under a second.
•Advanced Optics: Equipped with an 8x magnification and 40mm objective diameter, the B20 offers a wide 8° field of view. The lenses are treated with a high-definition coating, ensuring bright, sharp, and high-contrast images even at long distances.

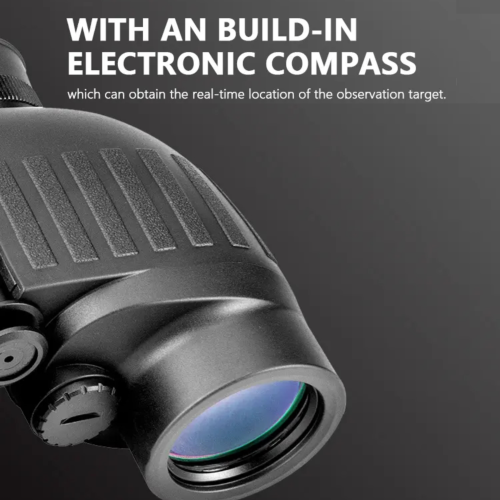

•Electronic Compass & Real-Time Azimuth: The built-in electronic compass provides real-time directional information, allowing users to precisely determine the azimuth of their target, crucial for navigation and orientation in unfamiliar environments.
•Durable and Portable Design: Constructed with a PC+ glass fiber shell, the B20 is both lightweight and robust, weighing just 955g. Its compact dimensions (180x148x68mm) make it easy to carry, while its design ensures it can withstand tough outdoor conditions.
Specifications
•Magnification: 8X
•Objective Diameter: 40mm
•Measuring Range: 1m to 1500m
•Measurement Error: ±1m (1-600m), ±2m (600-1000m), ±3m (1000-3000m)
•Screen: High-Resolution LCD Display
•Angle Measuring Range: +85°
•Functions: Distance measurement, height measurement, angle measurement, meter/yard unit switch, electronic compass
•Exit Pupil Distance: 17mm
•Exit Pupil Diameter: 4.65mm
•Field of View: 8°
•Diopter Adjustment: ±5D
•Eyepiece Diameter: 19.2mm
•Laser Band: 905nm
•Shell Material: PC+ glass fiber
•Size: 180x148x68mm
•Weight: 955g
•Additional Features: Automatic shutdown after 30 seconds of inactivity, nearest focal length of 2m, one-time/continuous measurement options
Product Introduction
The TUTT B20 is engineered based on the TOF (Time of Flight) principle, utilizing a 905nm pulsed laser for accurate and reliable measurements. The binoculars are designed with the classic nautical Paul telescope aesthetic, offering durability and style. They are easy to operate and portable, making them ideal for use in diverse and challenging environments.
Whether you’re navigating the open sea, hunting in the wilderness, or exploring rugged terrain, the TUTT B20 Laser Range Finder Binoculars provide the precision, clarity, and reliability you need.
