Overview

Designed for use with PrismStation and IsoStation, the Horn-5-30 airMAX ac Beamwidth Sector Isolation Antenna Horn from Ubiquiti Networks offers enhanced coverage with a wider beamwidth, enhanced antenna gain, and dual-linear polarization making it a viable networking solution for co-location configurations.This antenna horn can be exchanged easily thanks to the built-in single button release.

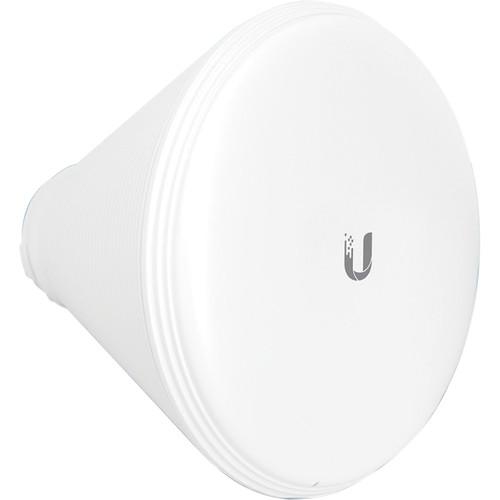

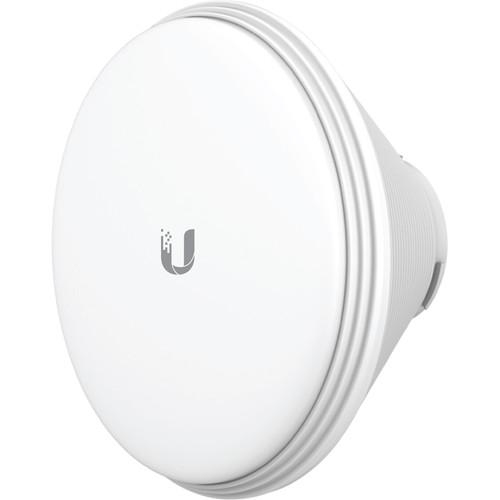

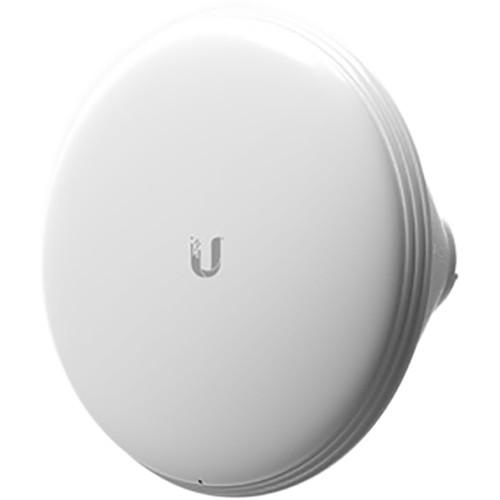

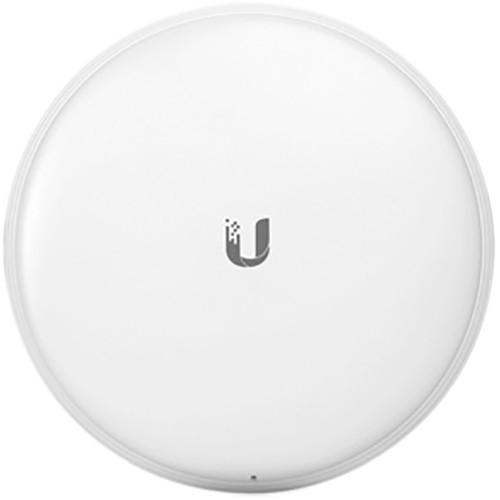

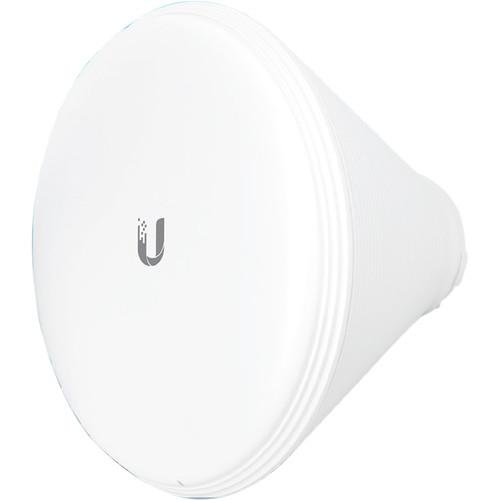

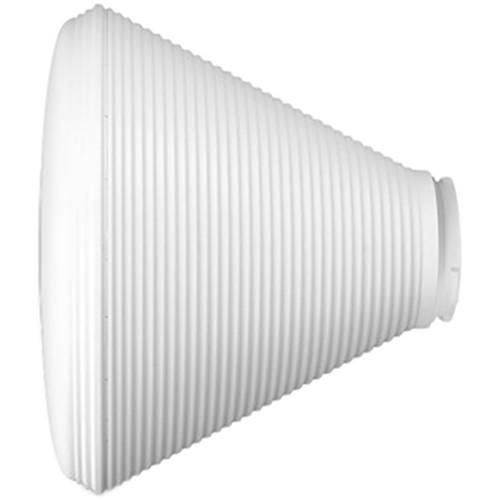

Ubiquiti Horn 5-Ghz 19-Dbi 30-Degree Beamwidth Isolation Horn Antenna

Model: HORN-5-30
Web Code: 12316058
Sold and shipped by | 3.5 seller rating (632 reviews)

Sale ends: *

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

  • Horn-5-30 Beamwidth Sector Isolation Antenna Horn

Benefits

• Designed for increased co-location performance

• Designed for use with PS-5AC, IS-5AC, and IS-M5

• Single button release for ease of changing antennas

• Newly designed horn for improved beam shaping

Technical Specifications

• Supported Frequency Range 5.15 - 5.85 GHz

• Gain 19 dBi

• HPOL Beamwidth 30 Degrees

• VPOL Beamwidth 30 Degrees

• Elevation Beamwidth 30 Degrees

• Maximum VSWR 1.7:1

• Wind Survivability 200 km/h (125 mph)

• Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph)

• Polarization Dual-Linear

• Cross-Pol Isolation 17 dB

Product Condition
Brand New
TV Antenna Type - Outdoor
Yes
Gain (dB)
19 dB

Supported Reception

Colour
White
Width
22.1 cm
Height
18.4 cm
Depth
22.1 cm
Weight
0.9 kg
