The airMAX® LiteBeam® AC 5 GHz XR (LBE 5AC XR) is an outdoor, wireless station designed to establish high-speed connections over extremely long distances, allowing you to serve more subscribers with just a single device. The LBE 5AC XR also features a proprietary, high-gain antenna capable of delivering 450+ Mbps throughput over the 5 GHz frequency range.

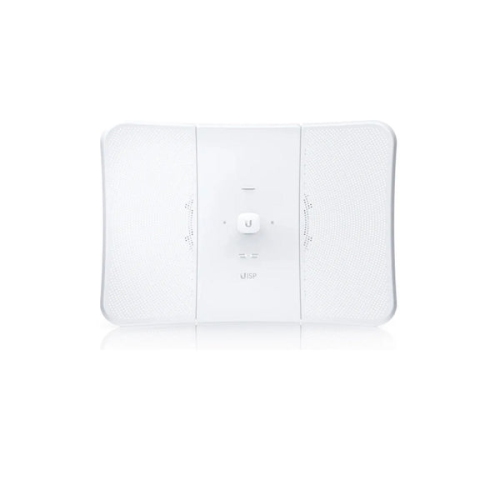

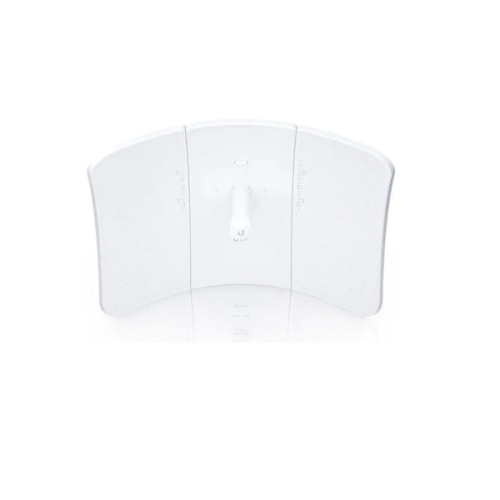

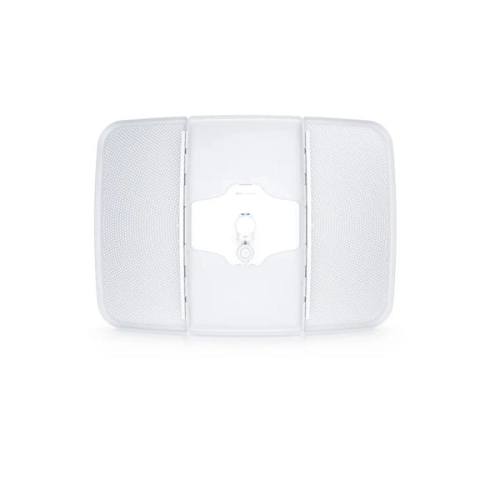

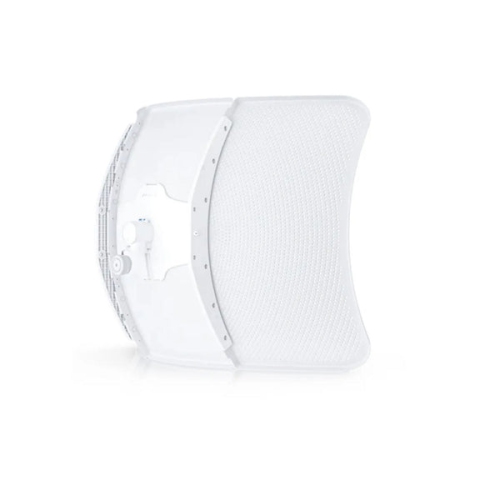

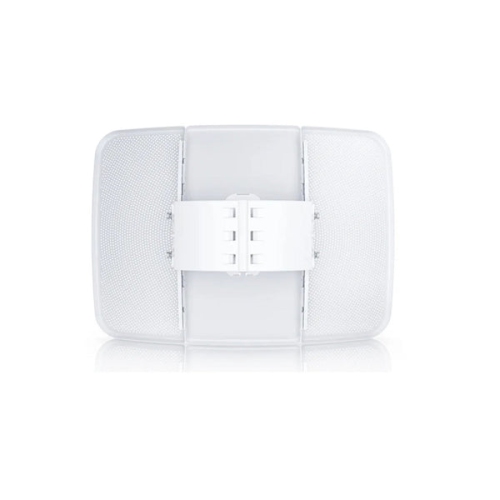

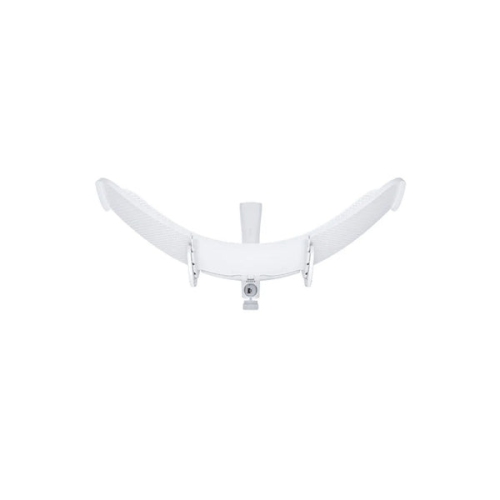

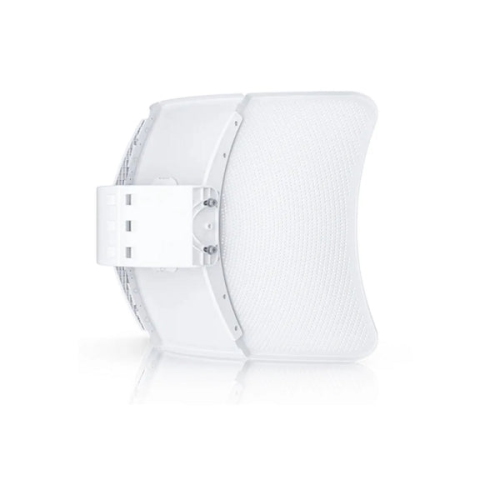

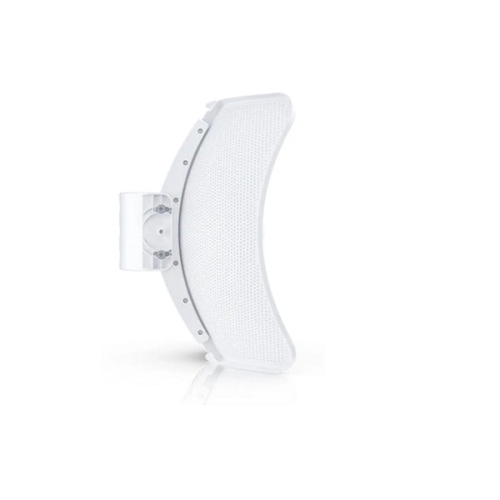

Ubiquiti UISP airMAX LiteBeam AC 5 GHz CPE - White

Model: LBE-5AC-XR
Web Code: 17103862
Sold and shipped by | 4.4 seller rating (144 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

  • 1 x airMAX LiteBeam

Benefits:

• Proprietary airMAX AC chipset

• Dedicated management radio for quick device setup via the UISP® Mobile app

• Ultra-lightweight aluminum alloy and UV-stabilized polycarbonate

• High-gain antenna with InnerFeed® technology

• Establishes high-speed, extremely-long-distance links

• Integrated GPS

Technical Specifications:

• Networking Interfaces: (1) GbE RJ45 port

• RF Connections: Internal

• Max. Power Consumption: 7W

• Power Method: Passive PoE 2-pair (4, 5+; 7, 8-)

• Power Supply: 24VDC, 0.5A Gigabit PoE adapter (included)

• Supported Voltage Range: 22-26VDC

• Wind Loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)

• Weatherproofing: IPX6

• Operating frequency*: 5.15 to 5.85 GHz* Depends on regulatory region

• Antenna Gain: 29 dBi

• Operating Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 5 to 95% non-condensing

Product Condition
Brand New
Gain (dB)
29 dB

Supported Reception

Colour
White
Width
3.47 cm
Height
5.25 cm
Depth
7.47 cm
