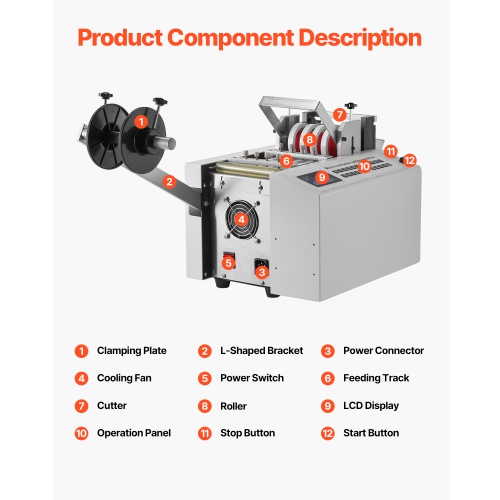

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Feeding Rod
The high-quality feeding rod ensures smooth and precise material feeding, minimizing disruption during the cutting process.
· Feeding Track
The feeding track guides the material smoothly into the cutting area, enabling fast and efficient feeding while reducing the risk of material jamming or misalignment.
· Cutting Tube Outlet
Equipped with a reliable cutting tube outlet, this cutting machine ensures that materials are easily expelled after cutting, minimizing clogs and prevent material buildup.
· Automatic Control

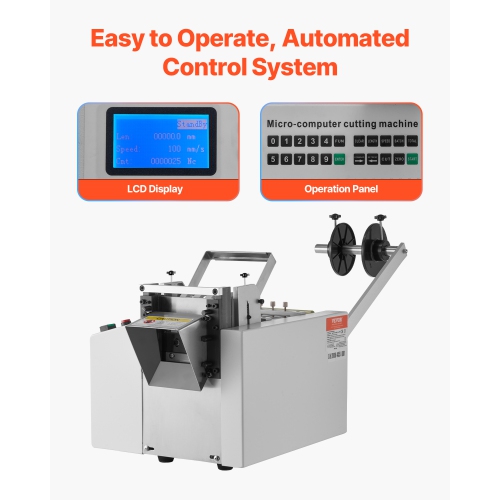

The easy-to-use operation panel and LED display allow for quick setup with straightforward operation, making it simple to adjust settings and start cutting.
· Automatic Stop
The heat shrink tube cutting machine will stop working once the cutting process is completed or when there is no material left to cut. This function ensures safer operation, improving overall efficiency.
· Sharp Blade
Equipped with SKD2 high-speed steel blade, this automatic cable pipe cutter ensures sharp, durable, and precise cuts.

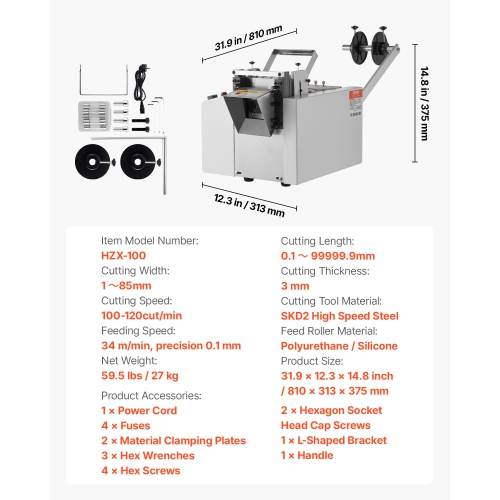

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: HZX-100
Cutting Length:0.1 ～ 99999.9mm
Cutting Width:1～85 mm
Cutting Thickness: 3 mm
Cutting Speed:100-120 cut/min
Cutting Blade Material: SKD2 High Speed Steel
Feeding Speed: 34 m/min, 0.1 mm precision
Net Weight: 59.5 lbs / 27 kg

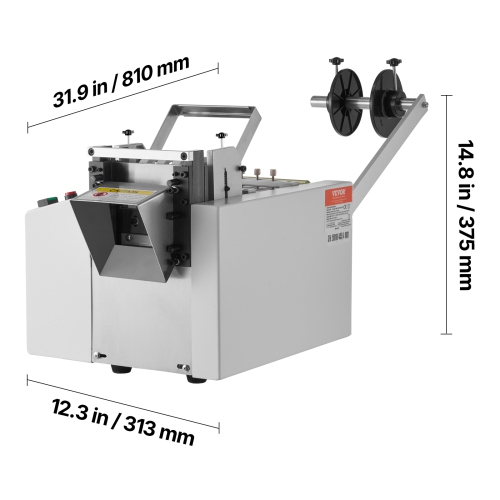

Product Size: 31.9 x 12.3 x 14.8 inch / 810 x 313 x 375 mm
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Power Cord
4 x Fuses
2 x Material Clamping Plates
3 x Hex Wrenches
4 x Hex Screws
1 x Instruction Manual
2 x Hexagon Socket Head Screws
1 x L Bracket
1 x Handle

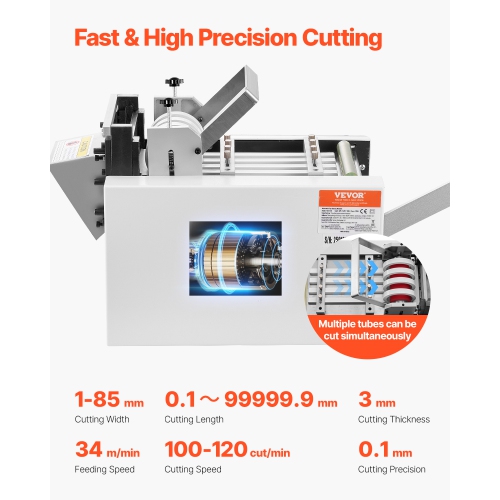

· High-Efficiency Cutting: This auto heat-shrink tube cutter delivers fast and precise cutting, with 1- 85mm cutting width, 0.1mm to 99999.9mm cutting lengths, up to 3mm cutting thickness and 0.1mm cutting precision. It can make 100-120 cuts per minute, with a feeding speed of 34m/min, and supports cutting multiple tubes simultaneously.
· Automation Control System: With a micro-computer control program, this automatic cable pipe cutting machine is easy to operate with simple settings. Parameters like cutting length and speed can be preset on the user-friendly operation panel, and the LCD screen displays data clearly, ensuring quick and efficient adjustments.
· Wide Applications: Our heat-shrink tubing cutter is designed to handle a wide range of tubular materials, including heat shrink tubes, fiberglass tubes, cables, yellow wax tubes, rubber tubes, PTFE tubes, battery sleeves, nickel belts, etc. It ensures precise cuts, improving efficiency and delivering flawless results for your cutting tasks.
· Safety & Memory Function: This automated pipe tube cutting machine will automatically stop working when the cutting process is finished or when there is no material left to cut. And it will automatically store the set cutting length, speed or other data for direct use next time. Built-in cooling fan helps dissipate heat and prevents motor overheating.
· Sharp Cutting Blade: The fiberglass tube cutting machine features SKD2 high-speed steel blade, offering exceptional sharpness and durability. It ensures precise, smooth and clean cut, delivering flat cuts for various types of tubing.
