𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

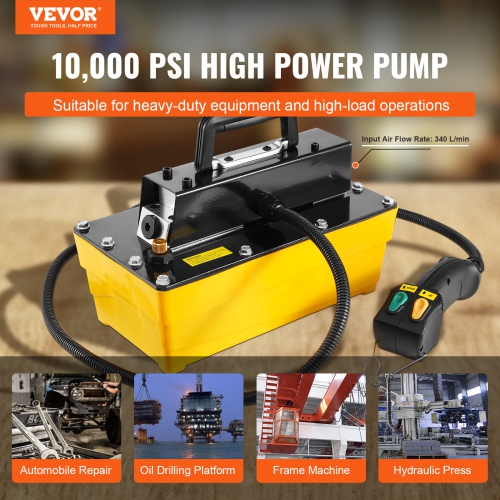

· 10,000 PSI Power
Looking for a pump that delivers severe pressure? This air hydraulic pump gives you a whopping 10,000 PSI, combining powerful performance with a sturdy protective shell. It is labor-saving and Ideal for jobs requiring a high-pressure hydraulic boost without the hassle.
· Tough Shell
The air over hydraulic pump’s rugged outer shell protects the internal components like a champ. It’s pressure-resistant, corrosion-resistant and deformation-resistant in tough conditions. Factory-filled with hydraulic oil (#13), it ensures efficient, secure, and durable hydraulic operation.
· 3-Meter Remote Control
Operate from up to 3 meters away to stay clear of hazards and maneuver easily in tight spaces. This feature helps you work securely and effectively, minimizing the risk of accidents.
· Rock-Solid Stability
With two fixing screw holes at the bottom, you can secure this hydraulic air pump for steady, vibration-free use. It’s all about keeping your operations stable and efficient.
· Quick & Easy Setup
Just three simple steps and you’re all set! Remember, open the air vent for 5 minutes before getting started, then close it to keep things running smoothly.
· Built for Tough Jobs

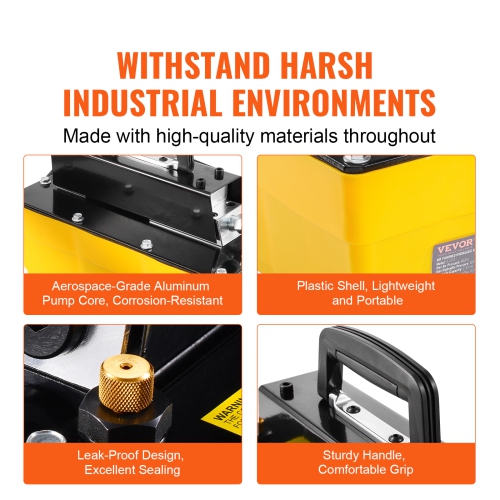

Made with an aerospace-grade aluminum pump core and a premium outer shell, this pump is ready to handle tough industrial environments. And no worries about pressure overload-the internal relief valve keeps hydraulic components running smoothly.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: TL-A5121
Input Air Pressure: 110 PSI - 145 PSI
Maximum Output Pressure: 10,000 PSI
Oil Tank Available Capacity: 2.3 L / 0.61 Gal
Air Flow Rate: 340 L/min
Hydraulic Pump Flow Rate: 0.8 L/min (No Load) / 0.16 L/min (Load)
Air Inlet Diameter: NPT 1/4" (13.7 mm)
Oil Outlet Diameter: NPT 3/8" (16.66 mm)
Net Weight: 18.74 lbs / 8.5 kg
Product Dimensions: 12.40 x 6.77 x 7.87 in / 315 x 172 x 200 mm
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Hydraulic Pump (Equipped with a 3 M Line Length Controller)
1 x Teflon Tape
1 x User Manual
· 10,000 PSI High Power: Achieve up to 10,000 PSI of hydraulic pressure with an airflow of 340 L/min. This air hydraulic pump offers 0.8 L/min (no load) and 0.16 L/min (load) flow rates, making it ideal for heavy-duty tasks like lifting, pressing, bending, straightening, cutting, assembling, and disassembling.
· 3-Meter Remote Control: Enjoy the convenience of a 9.84 in / 3 m remote that keeps you secure from hazards. This feature makes operating more accessible and comfortable while allowing quick reactions in emergencies to help avoid accidents.
· Factory-Filled with Oil: This air over hydraulic pump comes with a large 2.3 L / 0.61 gal tank factory-filled with hydraulic oil (#13) so you can start working immediately. This feature cuts down on setup time and effort. It includes an air inlet with NPT 1/4 in and a high-pressure output with NPT 3/8 in.
· Standard Size for Easy Setup: With an air inlet of NPT 1/4 in and a high-pressure output of NPT 3/8 in, this air hydraulic pump is compatible with standard pneumatic accessories. It easily connects to your existing pneumatic system for hassle-free integration.
· Durable and Tough: Made with aerospace-grade aluminum and a high-quality casing, this air hydraulic pump is built to withstand harsh industrial environments. The internal relief valve ensures reliable protection for the hydraulic components under pressure.
