𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Standard Air Inlet & Oil Outlet
The air hydraulic pump features a 1/4'' NPT air inlet and a 3/8'' NPT oil outlet, which will not leak oil easily. In addition, the 3/8 inch female NPT oil port conveniently hookups to hydraulic-powered equipment.
· Simple Foot Pedal Control
The high-intensity frame machine pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving. In addition, it allows fine control of the pump while keeping both hands free.

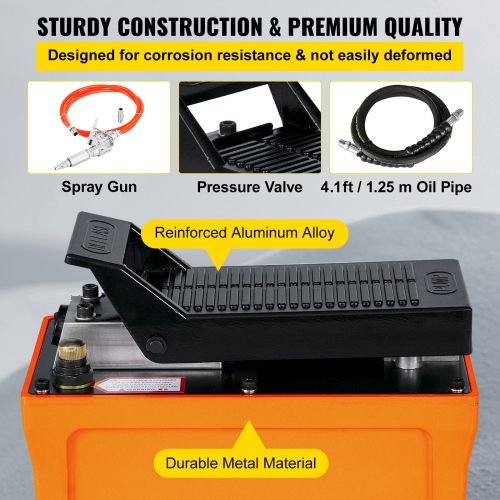

· Premium Quality & Structure
The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable metal shell protects the internal structure better and is not easily deformed.
· 1.6L Large Oil Tank
The hydraulic air foot pump adopts a 1.6L ± 0.1L aluminum alloy fuel tank with 98 cubic inches / 1.6 liters oil capacity for high performance. Moreover, it ensures you have the supply needed to power your equipment.
· Excellent Pipeline & Spray Gun
This hydraulic pump includes a 1.25 m / 4.1 ft high-quality oil pipe with 3/8 NPT that resists high pressure. The spray gun is also included to help users better use foot pumps to operate industrial and construction applications.
· Multiple Application

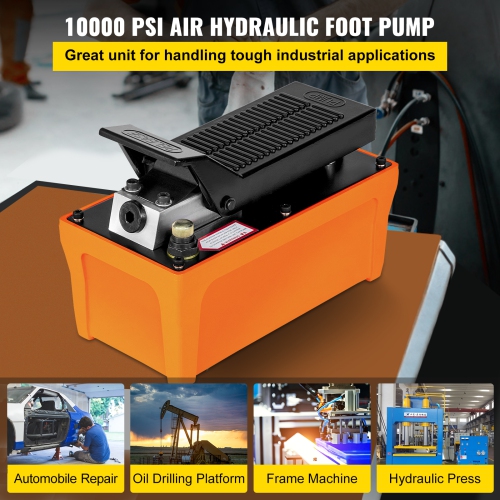

This air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance. It effectively operates your frame machine, hydraulic presses, etc.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Model: B-70BQ
Type: Air Powered Hydraulic Pump
Action: Single Acting
Control: Foot pedal pump - Release pressure to return fluid
Includes Hydraulic Hose: 1.25 m / 4.1 ft with 3/8'' NPT - Quick hydraulic coupler
Flow Rate: 0.8 liters / 0.21 gallons per minute
Air Connection: 1/4" Female NPT
Output Oil Hole: 3/8'' NPT Connection
Hydraulic Oil Type: HM22/HM32
Oil Capacity: 98 Cubic Inches / 1.6 Liters (1600 cc)
Input Air Pressure: 0.7-1MPa
Shell Material: Reinforced Aluminum Alloy
Fuel Tank Capacity: 1.6L
Capacity Tolerance: ± 0.1L
Maximum Oil Output: 1.3L
Oil Output Pressure: 70MPa
Pressure Range: ≥0.5
Max Output Hydraulic Pressure: 10000 psi, 700 kg/square cm
Total Mass: 8.0 kg / 17.64 lbs

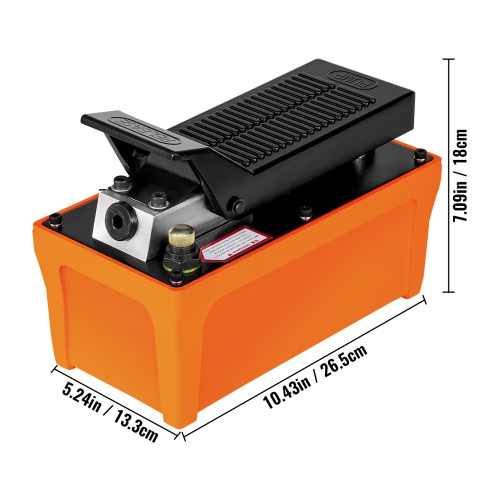

Overall Dimensions (L x W x H): 265 x 133 x 180 mm / 10.43 x 5.24 x 7.09''

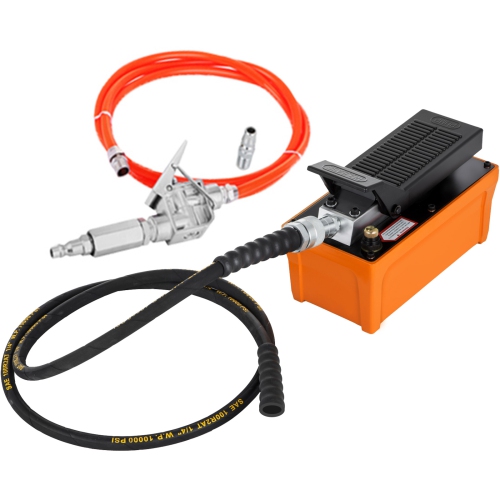

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁

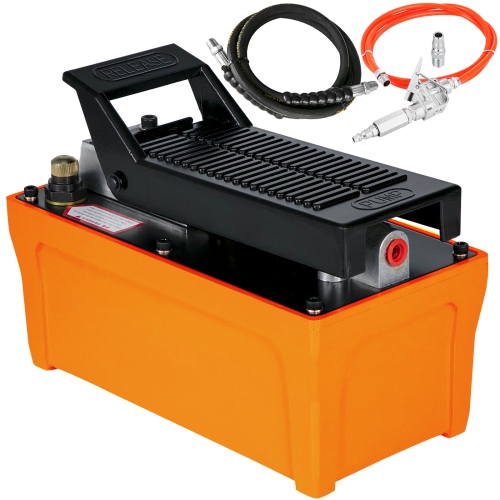

1 x Air Powered Hydraulic Pump
1 x Spray Gun
1 x 4 ft Air Line
1 x 5 ft Hose
Note: Pump comes without oil.
· Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI. Action: Single Acting, Flow Rate: 0.8 liters / 0.21 gallons per minute, Air Connection: 1/4" NPT, Output Oil Hole: 3/8" NPT, Hydraulic Oil Type: HM22/HM32, Oil Capacity: 98 Cubic Inches / 1.6 Liters (1600 cc), Input Air Pressure: 0.7-1MPa, Fuel Tank Capacity: 1.6L ± 0.1L, Maximum Oil Output: 1.3L, Oil Output Pressure: 70MPa.
· Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, saving the operator's time and effort with strong power and high output pressure. The convenient 2-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.
· Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality metal shell to handle tough industrial applications. 1.6L oil tank has a larger capacity with 98 cubic inches / 1.6 liters oil capacity. Built-in internal relief valve protects the hydraulic components regardless of hydraulic pressure.
· Oil Pipe & Spray Gun Included: This hydraulic air pump is equipped with a 1.25 m / 4.1 ft high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable. A spray gun is included to control the input and interruption of the airflow, which is an effective start-stop device.
· 10,000 PSI for Wide Application: This high-pressure hydraulic air-powered pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. An ideal all-around power source and a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.
· Note: The pump comes without oil.
