𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

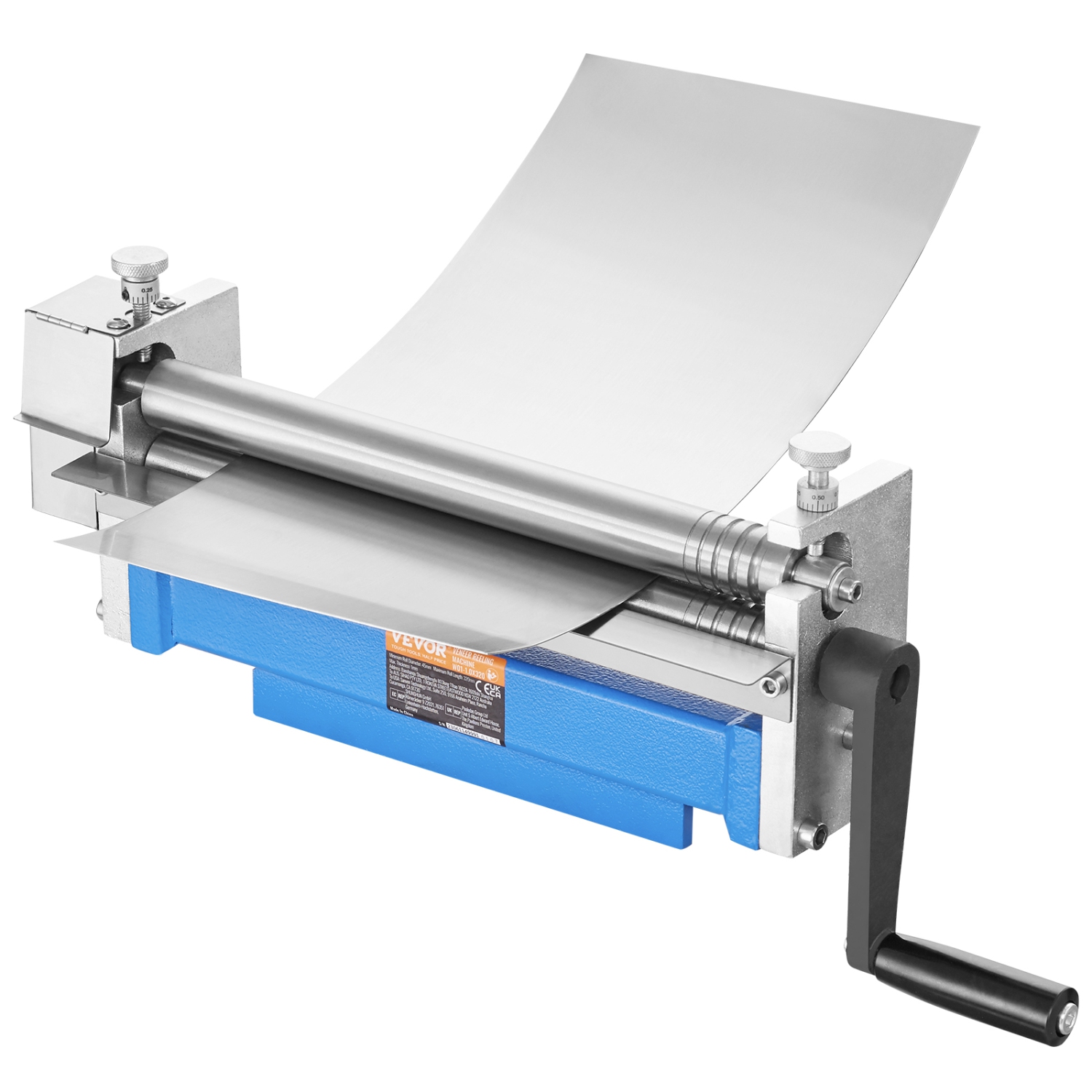

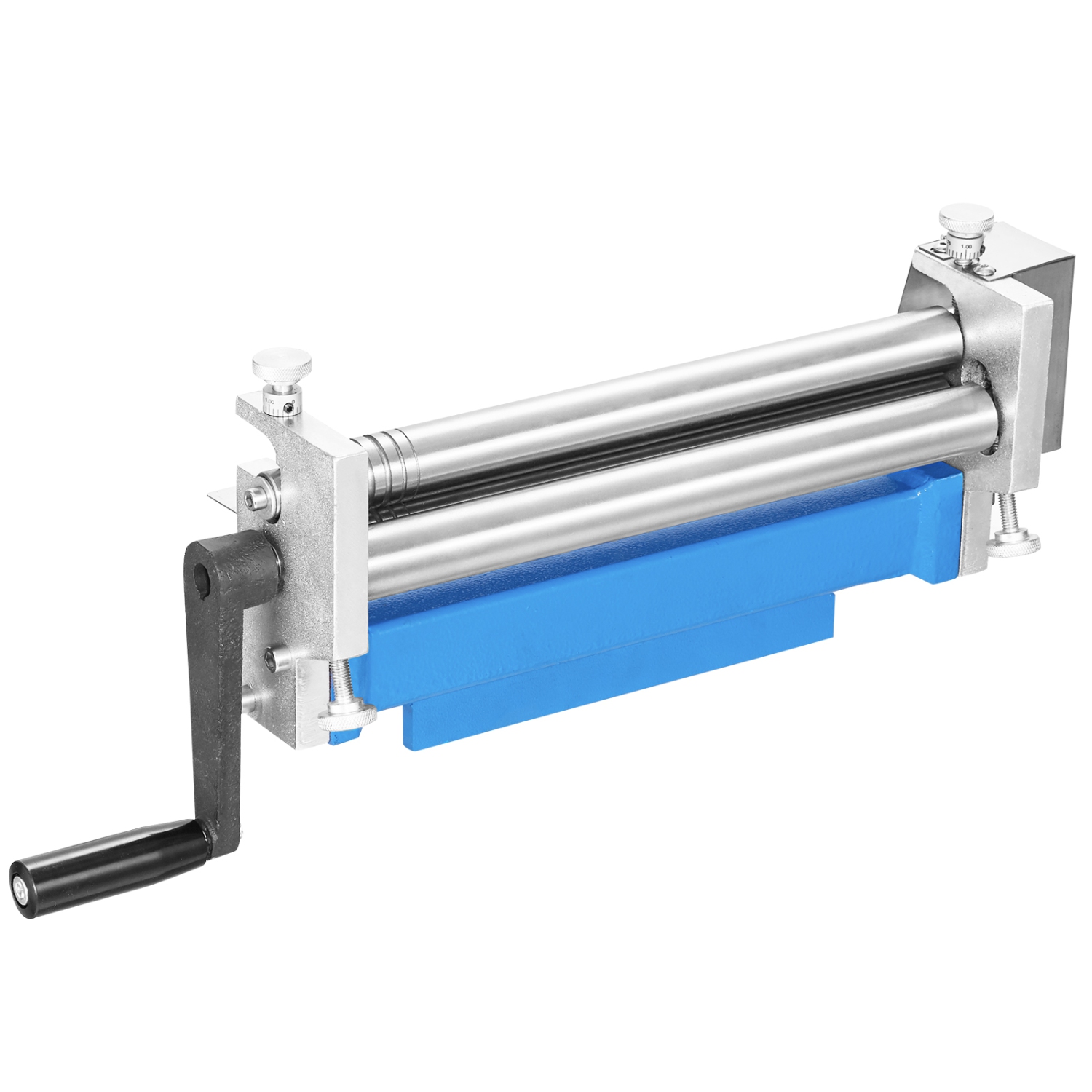

· VEVOR 12-inch Slip Roll Machine
The new 12-inch slip roll machine has undergone comprehensive improvements in performance and quality, making it more efficient, easy to use, and secure for your rolling operations. It is the ideal choice for your sheet metal rolling tasks.
· Effortless Sheet Rolling
Our sheet metal slip roller reduces friction between the sheet metal and the rollers, enhancing machine stability during operation. Besides, it minimizes the occurrence of scratches on the sheet metal due to uneven roller surfaces, thereby improving the smoothness of the sheet metal's surface.

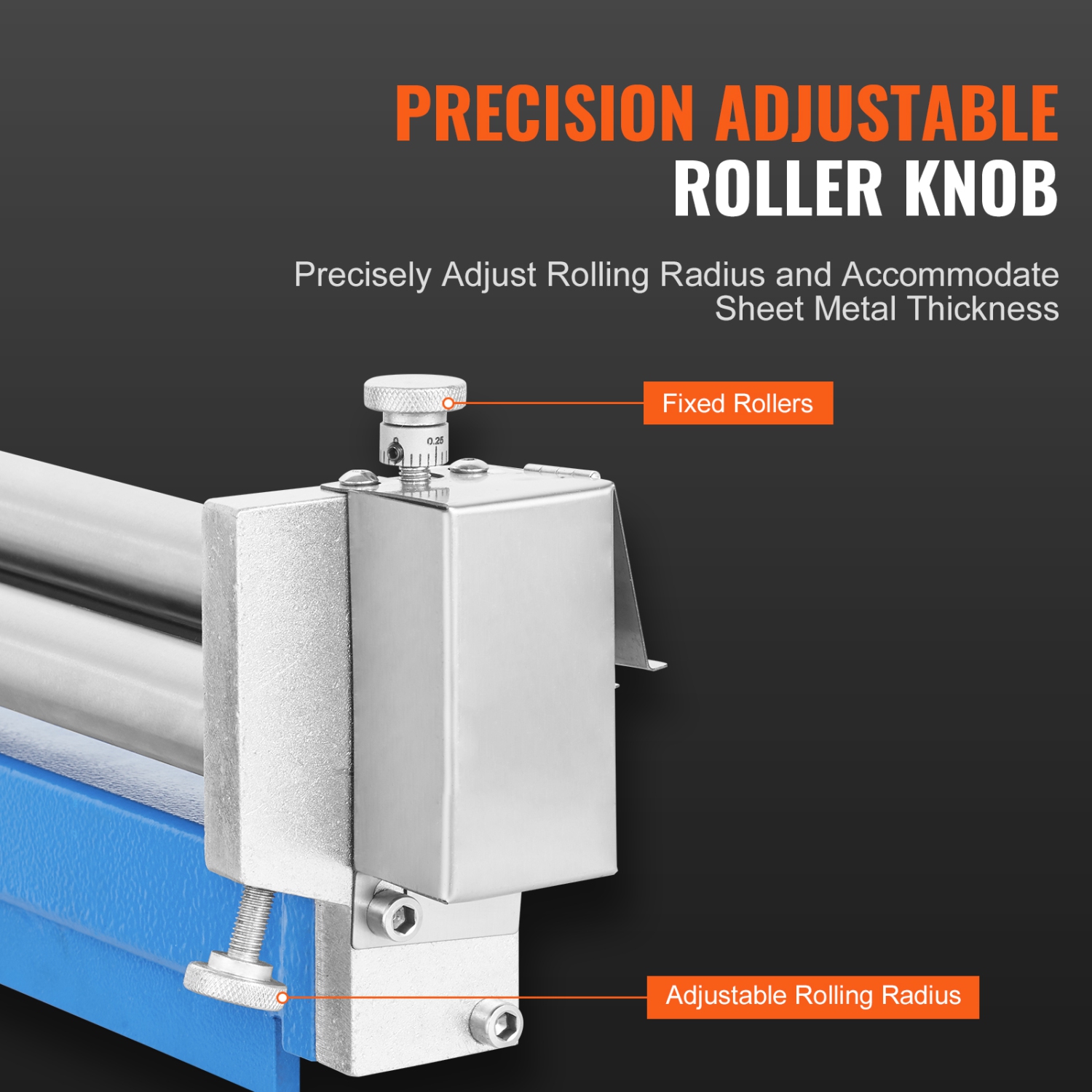

· Precision Adjustment
The optimized roller adjustment knob allows for more precise adjustment of the gap between the rollers, ensuring accurate control of the sheet metal diameter. The high-precision adjustment knob, coupled with 30mm diameter rollers, can roll sheet metal down to a minimum diameter of 1.25 inches, making it suitable for a wide range of fine precision work requirements.
· Secure Operation
With its built-in stainless steel gear cover, this metal slip roller serves a dual purpose. On the one hand, it safeguards individuals from accidental contact with the gears during rolling operations, avoiding potential injuries. On the other hand, it protects the gears from external exposure.
· Wide Application
This slip roller can shape sheet metal into curved pieces, cones, and cylinders. It is suitable for various types of sheet materials, including low-carbon steel (Q235 and Q195), copper, aluminum, and aluminum alloys, among other mainstream sheet materials.
· Built-in Gear Guard
The built-in stainless steel gear guard serves a dual purpose. It protects users from accidental contact with the gears during operation and also ensures that the gears are not exposed, thus extending the lifespan of the machine.

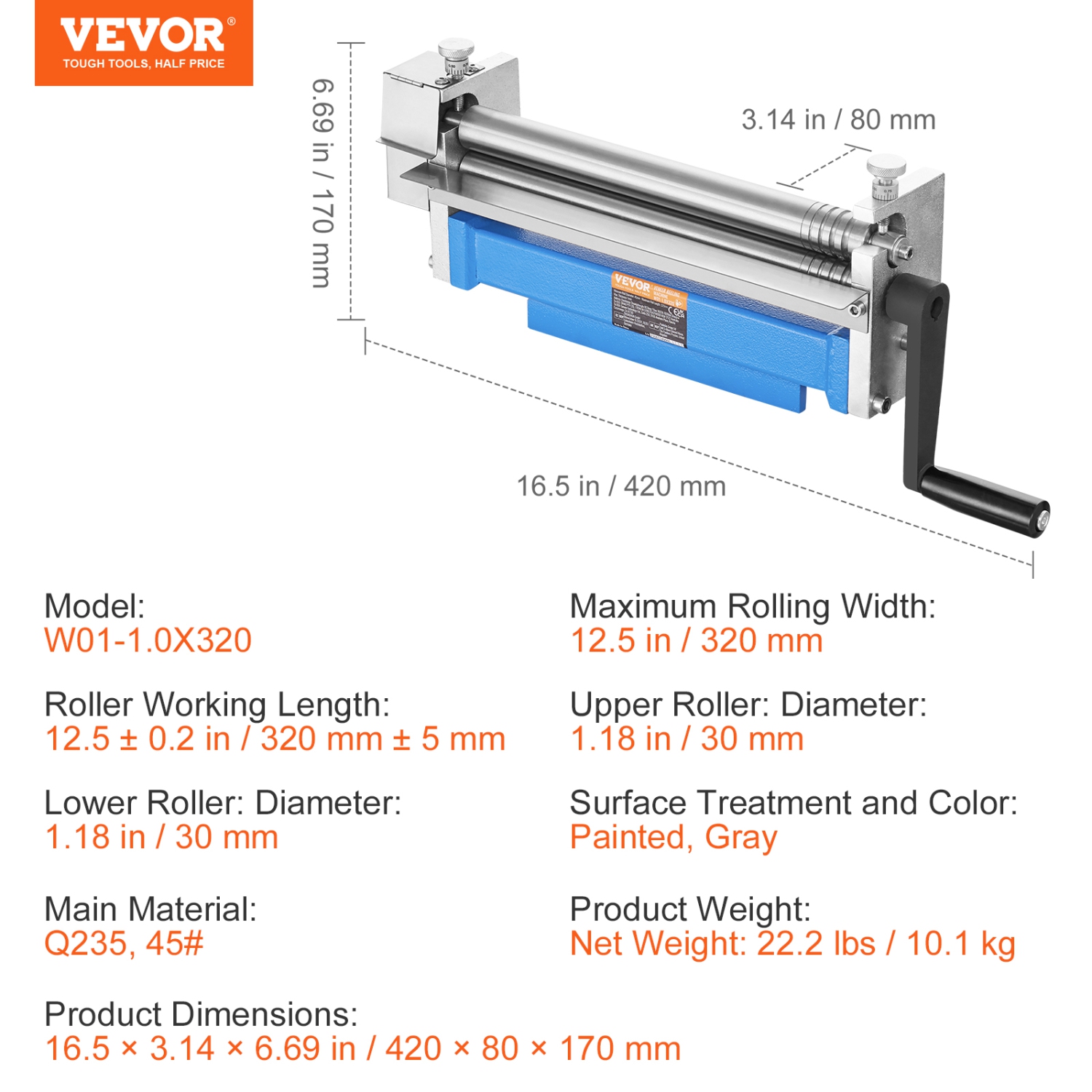

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: W01-1.0X320
Maximum Roll Width: 12.5 in /320 mm
Maximum Roll Length: 12.5±0.2 in/320 mm±5 mm
Upper Roller: φ1.18 in/30 mm, 45#, 21HRC
Lower Roller: φ1.18 in/30 mm, 45#, 21HRC
Surface Treatment: Spray Paint
Color: Gray
Main Material: Q235 & 45#
Net Weight: 22.2 lbs/10.1 kg

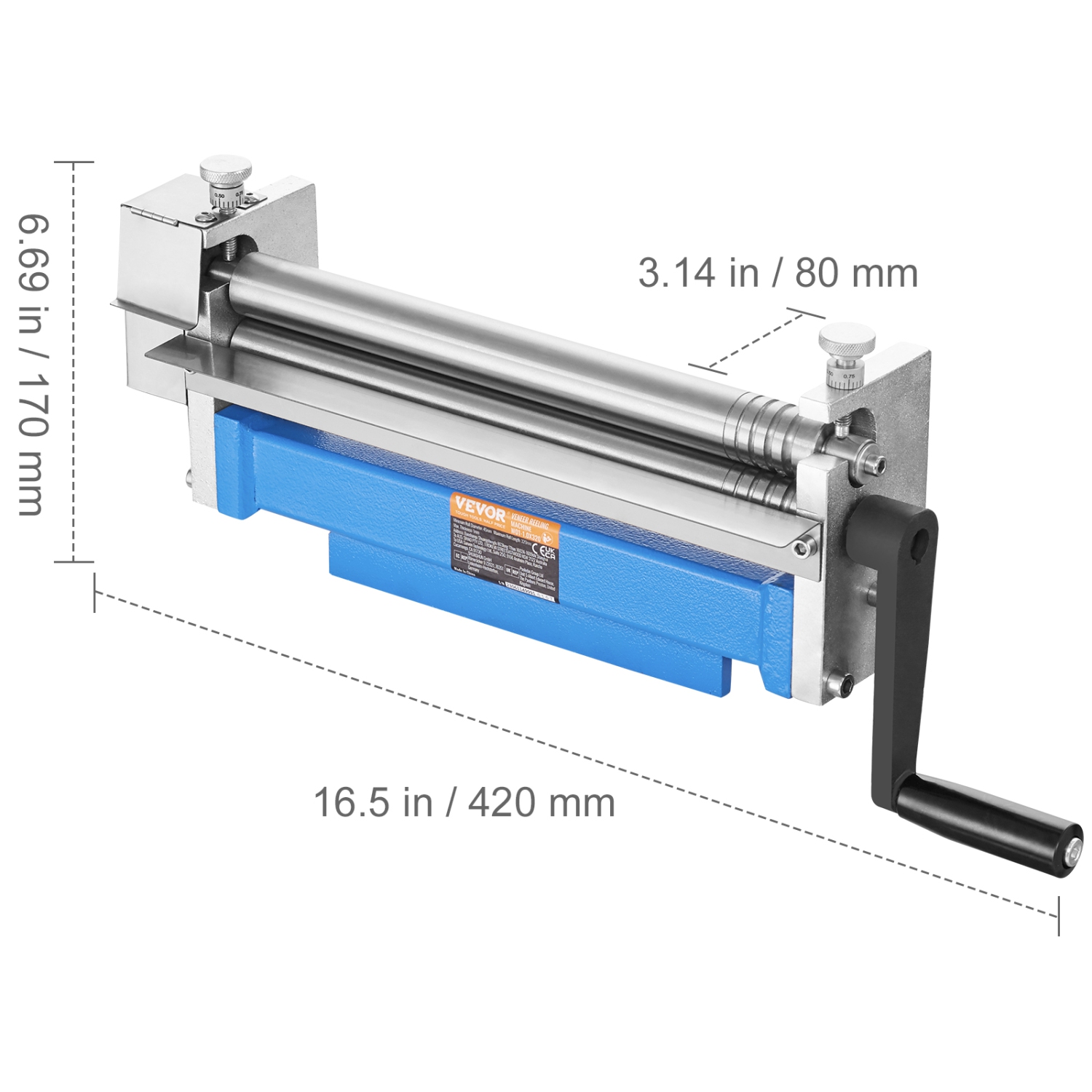

Product Dimensions(L x W x H): 16.5 x 3.14 x 6.69 in/420 x 80 x 170 mm
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Slip Roll Machine
1 x Planker
4 x Adjusting Bolt
1 x Handle
1 x User Manual
· Newly Upgraded Roller Working Surface: The rollers have been precision ground using advanced cylindrical grinding technology. This not only reduces friction between the sheet metal and the rollers, increasing machine stability during operation, but also minimizes the chances of scratching the sheet metal due to uneven roller surfaces, thus enhancing the surface smoothness of the sheet metal.
· Optimized Roller Adjustment Knobs: The improved roller adjustment knobs allow for more precise adjustment of the gap between the rollers, enabling control of sheet metal diameter and accommodating various thicknesses of sheet metal.
· 1.25-Inch Ultra-Small Diameter: With the high-precision adjustment knobs and 30mm diameter rollers, this slip roll machine can roll sheet metal down to a minimum diameter of 1.25 inches, making it suitable for a wide range of fine precision work.
· Built-in Stainless Steel Gear Guard: The built-in stainless steel gear guard serves a dual purpose. It protects users from accidental contact with the gears during operation and also ensures that the gears are not exposed, thus extending the lifespan of the machine.
· Detachable Rollers: The upper roller of our slip roll machine can be easily pulled out, allowing for the retrieval of processed workpieces. The sheet metal slip roller features two rollers with three grooves each, which can be used for wire forming.
