𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Powerful Performance

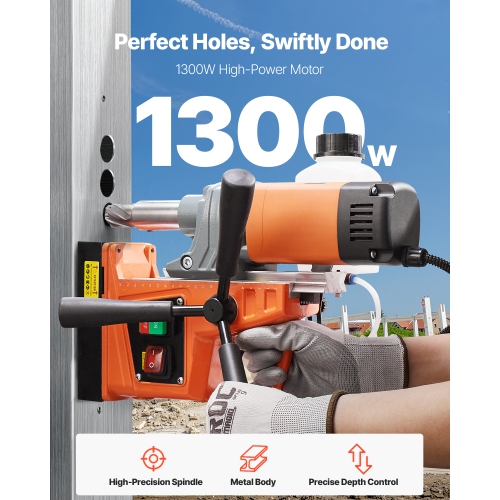

Our mag drill boasts a 1300W motor with a 810rpm speed, significantly enhancing drilling efficiency, especially for projects that require extensive drilling. It ensures more stable operation, greater precision, and improved comfort during use.
· Precision Depth Scale
The built-in scale allows you to directly monitor and control the drilling depth during operation, ensuring that each hole meets the exact size requirements. This mag press is especially valuable for applications requiring precise depth control, such as machining and construction installation.
· Durable Dovetail Guide Rails
The dovetail guide rail structure offers exceptional rigidity, capable of withstanding heavy cutting forces and torque. Even when tackling hard materials or demanding drilling tasks, the magnetic drill maintains the magnetic drill's overall stability and performance.
· Overload Protection
No need to worry about unexpected overloads damaging the equipment. This feature reduces maintenance and replacement costs, making it especially beneficial for professional users and businesses that frequently use a magnetic drill—saving both time and money in the long run.
· Strong Magnetic Adhesion

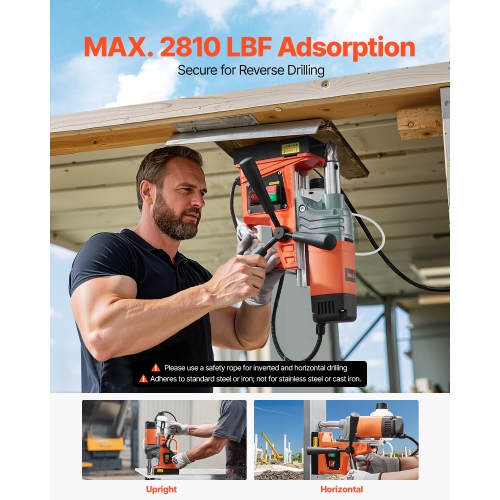

With an impressive magnetic adhesion of 2810 lbf (12500N) and an included security strap, the mag base drill provides unwavering stability during inverted, vertical, or side drilling tasks. This minimizes vibration and ensures both precision and reliability in your operations.
· Stable Base
The low center of gravity is expertly designed to ensure stability and prevent wobbling, giving you confidence to handle even the complex or time-consuming tasks with ease.

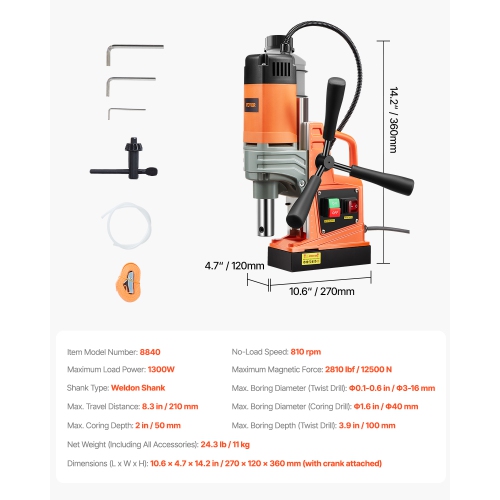

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: 8840
Shank Type: Weldon Shank
Maximum Load Power: 1300W
Maximum Magnetic Force: 2810 lbf / 12500 N
No-Load Speed: 810 rpm
Max. Boring Diameter (Coring Drill): Φ1.6 in / 40 mm
Max. Coring Depth: 2 in / 50 mm
Max. Boring Diameter (Twist Drill): Φ0.1-0.6 in / 3-16 mm
Max. Boring Depth (Twist Drill): 3.9 in / 100 mm
Max. Travel Distance: 8.3 in / 210 mm
Net Weight (Including All Accessories): 24.3 lb / 11 kg

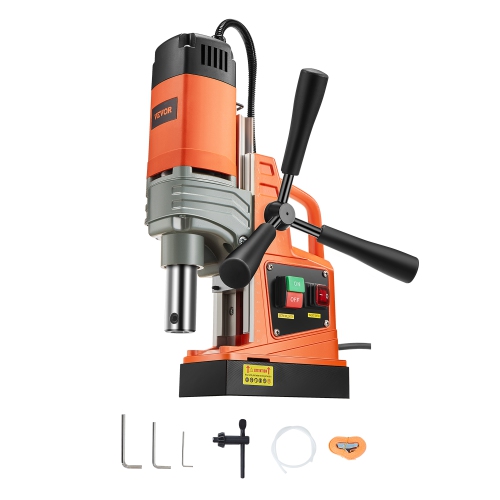

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Coolant Tank + Stand
1 x Coolant Tube
1 x Rope
3 x Hex Keys
3 x Hand Cranks
1 x User Manual
· Top-level Magnet: Get ready for unstoppable power! Our electric mag drill generates exceptionally powerful driving force with its 1300W copper motor. It is capable of drilling into the toughest material at 810 RPM. Max. Boring Diameter (Coring Drill): Φ1.6 in / Φ40 mm; Max. Coring Depth: 2 in / 50 mm
· Understand the Power: 2810 lbf / 12500N of robust force is created by the electromagnetic thickened base, featuring pure iron anchors the mag drill press solidly works at any angle stably during the drilling process

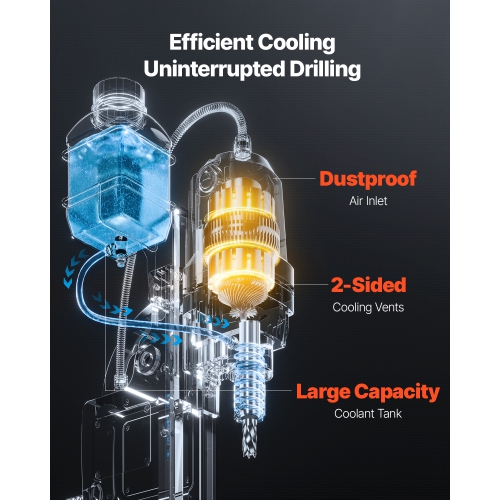

· Security and Durability: Your security comes first! That is why the combined overload protection features are in place. The cooling system features fast heat dissipation to protect operators from being hurt by instantaneous overpowering and high temperatures during drilling Besides, the premium alloy guide rail has anti-corrosion and wear resistance characteristics, significantly improving the device's service life

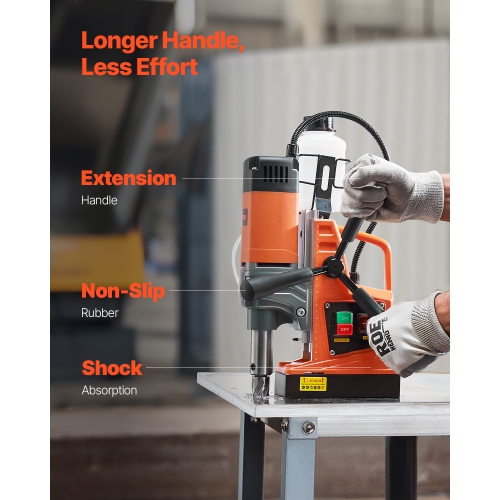

· User-friendly design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort
· Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields. Note: Ensure optimal use by adhering to a steel plate thickness of ≥ 0.39 in / 10 mm. Not suitable for stainless steel or cast iron. Please use a safety rope for inverted and horizontal drilling
