𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Unrestricted Water Usage
With a robust 1 HP / 745.7W motor, our shallow well jet pump effortlessly pumps water up to an impressive height of 164 FT / 50 m. It's your solution for everyday water needs, whether you have minimal water usage, need to pump from a distance, or require elevation.

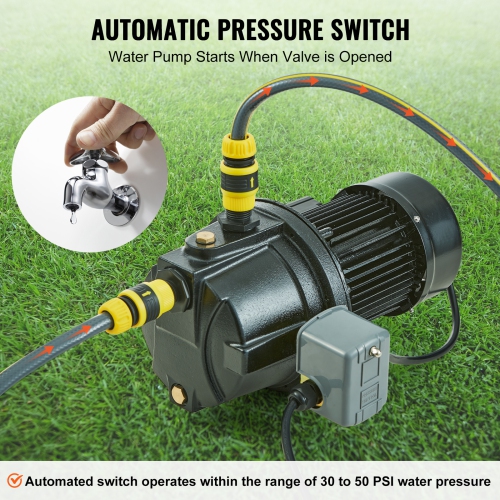

· Automatic Start/Stop
Our shallow well jet pump features automatic start-up when water is in use, seamlessly transitioning to standby mode when water usage ceases, all while conserving energy. The pump won't start if water pressure is below 30 PSI or exceeds 50 PSI, ensuring efficient operation.

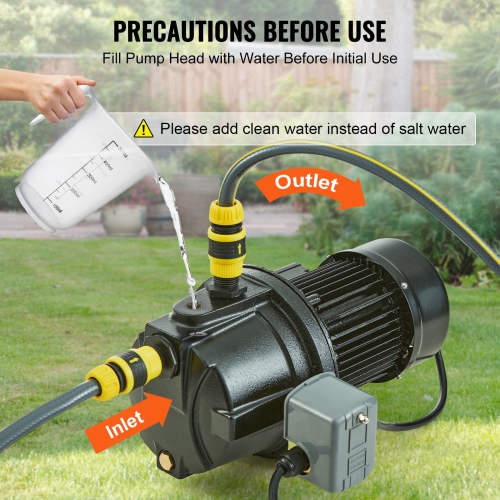

· Usage Reminder
Ensure Timely Water Filling and Drainage. Before use, fill the water filling nozzle with water until it flows out from the drain opening, then install the air vent plug. Now, you're all set to use the shallow well jet pump!

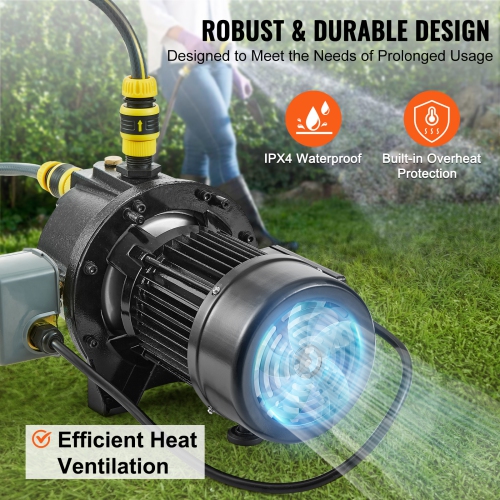

· Robust and Durable
Crafted from cast iron, our shallow well jet water pump is corrosion-resistant. With a rear heat dissipation port, it facilitates immediate cooling, while its built-in automatic thermal overload protector safeguards sustained, trouble-free usage for years to come
· Universal Whole House Water Supply
Our shallow well jet water pump is versatile, catering to the water needs of large residences, farms, and cottages alike. Whether for commercial or residential use, it ensures a reliable supply of fresh water throughout the entire property.
· Quiet Operation
With its powerful motor, our jet water pump operates smoothly and quietly, generating a noise level of ≤85 dB (as measured at a distance of 1 meter from the front), ensuring minimal disturbance. Say goodbye to worries about noisy operation!

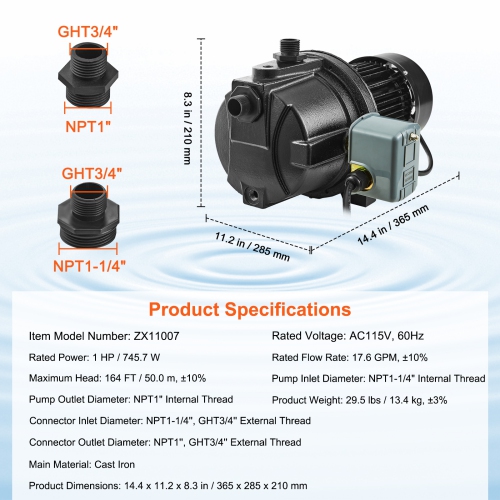

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: ZX11007
Conveyance Medium: Freshwater
Rated Voltage: AC115V, 60Hz
Rated Power: 1 HP / 745.7 W
Rated Flow Rate: 17.6 GPM, ±10%
Maximum Head: 164 FT / 50.0 m, ±10%
Pump Inlet Diameter: NPT1-1/4" Internal Thread
Connector Inlet Diameter: NPT1-1/4'', GHT3/4'' External Thread
Pump Outlet Diameter: NPT1" Internal Thread
Connector Outlet Diameter: NPT1'', GHT3/4'' External Thread
Main Material: Cast Iron
Product Weight: 29.5 lbs / 13.4 kg, ±3%

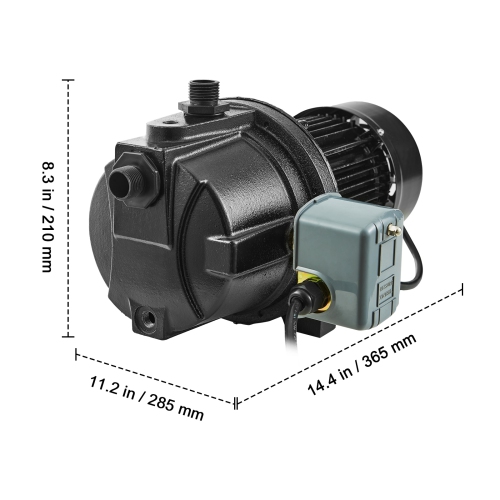

Product Dimensions: 14.4 x 11.2 x 8.3 in / 365 x 285 x 210 mm

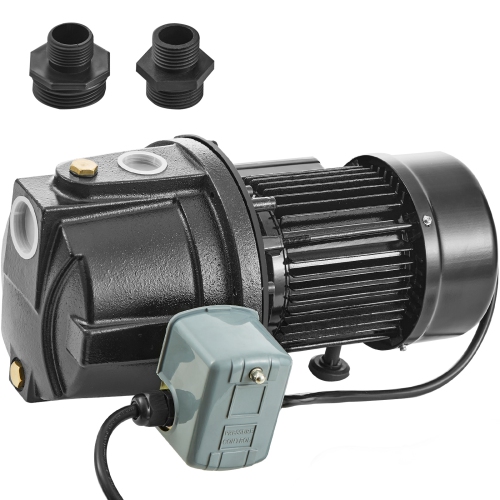

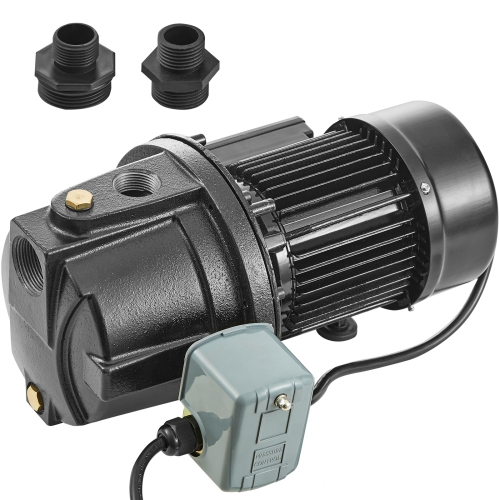

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Inlet Connector
1 x Outlet Connector
1 x User Manual
· High-Power, 164ft Head: Introducing our shallow well jet pump with a mighty 1 HP / 745.7W motor, engineered to boost water flow effortlessly. With a remarkable rated flow rate of 17.6 GPM, it reaches heights up to 164 FT / 50 m, exceeding expectations for household water needs. Say hello to superior performance and bid farewell to water worries!
· Automatic Pressure Switch: Our shallow well jet pump starts and stops automatically when you turn on and off the faucet, saving you valuable time. Operating within the range of 30 - 50 PSI, it activates or deactivates in sync with your water valve, avoiding damage from clogged pipes or insufficient pressure. For precise monitoring of water pressure, consider purchasing a pressure gauge separately.
· Easy Setup, Simple Use: Simply match the voltage, plug in the power, and install water pipes into the designated inlet and outlet ports. However, before use, fill the water filling nozzle with water until it flows out from the drain opening, then install the air vent plug. If infrequently used, remember to drain the water. Attention: For proper installation, a foot valve must be added to the other end of the intake pipe to ensure the automatic start function operates correctly.
· Built to Last: Crafted from cast iron, our shallow well jet water pump is wear-resistant and corrosion-resistant, making it ideal for outdoor use in courtyards and farms. With a rear heat dissipation port, it facilitates immediate cooling, while the built-in automatic thermal overload protector ensures uninterrupted operation for years to come.
· Commercial & Household Use: This shallow well jet pump is incredibly versatile, perfect for supplying fresh water to large residences, farms, and cottages, while also providing solutions for garden irrigation, boosting water pressure for faucets, supplying water for car washing, and even facilitating high-rise water supply needs.
