๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฐ๐ฟ๐ถ๐ฝ๐๐ถ๐ผ๐ป
ยท Feel the Speed
Feel the exhilaration of fast rides that make every journey unforgettable. (This top speed is based on no-load conditions with a 16-inch wheel โ actual speed may vary depending on load, road conditions, and rider weight)
ยท Enhance Your Ride
Take your DIY projects with our brushless DC motor, designed to elevate the performance of your electric bikes and scooters. Whether you're looking to boost speed, increase torque, or improve overall efficiency, it provides the perfect solution for customizing your ride.

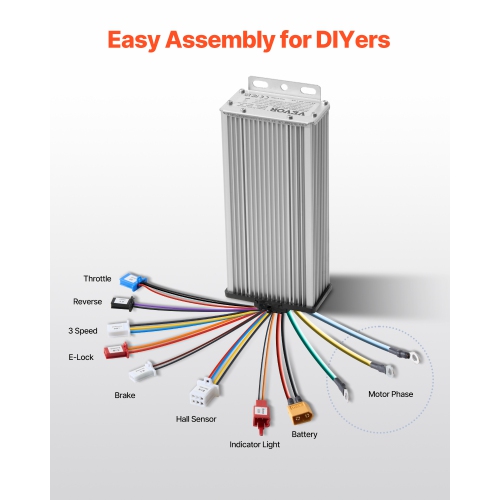

ยท New-Generation Controller
Upgrade to our new-generation controller and ride safely. Featuring an XT60 connector, it enhances power connection stability for reliable performance. The 3-position insulated terminal block reduces the risk of short circuits, adding an extra layer of safety to your journey.

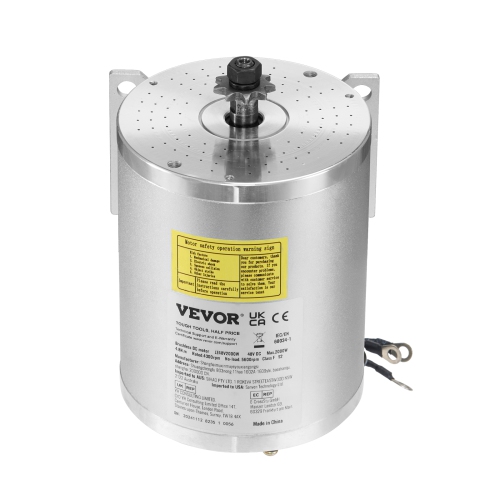

ยท 100% Pure Copper Core Motor
The 100% pure copper core motor offers exceptional resistance to deformation and rust, with high conductivity for optimal efficiency. Designed to withstand extreme weather conditions, it ensures a smooth and safe ride.

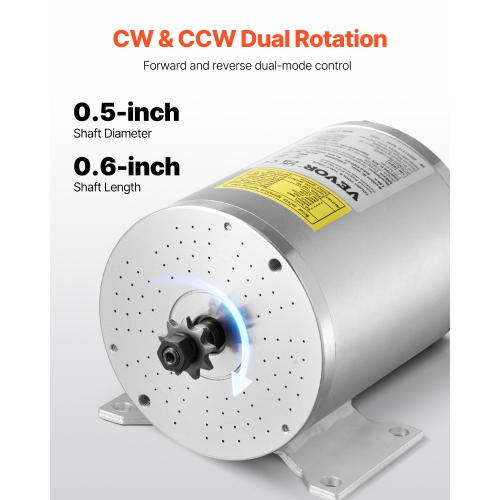

ยท Dual-Direction Control
It also features CW & CCW dual-direction control, providing smooth and precise control for a more versatile and effortless riding experience.
ยท Efficient Performance
Its powerful performance ensures stability and safety, providing you with an unmatched smooth riding experience.

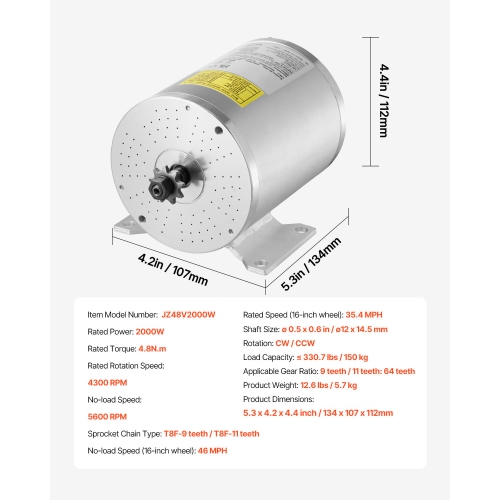

๐ฆ๐ฝ๐ฒ๐ฐ๐ถ๐ณ๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป๐
Item Model Number: JZ48V2000W
Rated Power: 2000W
Rated Torque: 4.8Nยทm
Rated Rotation Speed: 4300 RPM
No-load Rotation Speed: 5600 RPM
Rotation: CW/CCW
Load Capacity: โค 330.7 lbs / 150 kg
Noise: 70 dB
Applicable Gear Ratio: 9 teeth / 11 teeth: 64 teeth
Product Weight: 12.6 lbs / 5.7 kg

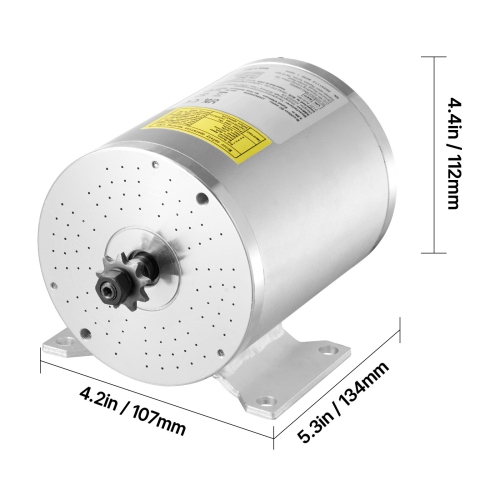

Product Dimensions: 5.3 x 4.2 x 4.4 inch / 134 x 107 x 112 mm

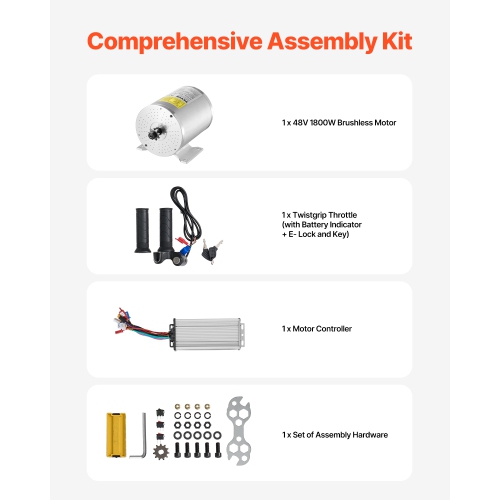

๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ผ๐ป๐๐ฒ๐ป๐

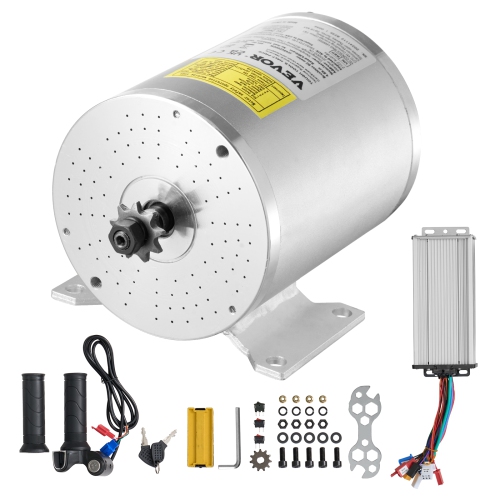

1 x 48V 2000W Brushless Motor
1 x Motor Controller
1 x Twistgrip Throttle (with Battery Indicator + E- Lock and Key)
1 x User Manual
1 x Set of Assembly Hardware (with Junction Box)
ยท High-Power, Efficient Performance: Our brushless DC motor delivers 2000W of output power and operates efficiently with โฅ85% conversion efficiency, ensuring reliable speed even on challenging terrains and less energy consumption. Perfect for electric bikes, scooters, and other DIY electric vehicle projects that require high performance.
ยท Impressive Torque and Speed: Achieve up to 35.4 MPH at rated speed, and a no-load speed of 46 MPH with a 16-inch wheel, ensuring a fast and smooth ride for commuting or recreational use. The rated torque of 4.8Nยทm ensures reliable performance even on steep inclines and rough terrains. (This motor adopts intelligent soft-start technology, ensuring a smooth and safe startup process that maximally protects both the motor and the rider's safety, without compromising the stability or power output during actual riding.)
ยท Quiet, Reliable, and Versatile Operation: 100% Copper Core Motor for excellent heat and cold resistance, ensuring stable performance in extreme weather conditions. With a low noise level of 70 dB, this motor offers quiet operation. It also features CW & CCW dual-direction control, enabling easy switching between forward and reverse for added versatility in tight spaces.
ยท Advanced Safety and Control Features: The upgraded controller integrates multiple safety protections including overload, undervoltage, short circuit. It also offers essential user functions such as speed control, braking, reverse, and slow start for smooth and reliable performance. The controller ensures optimal performance while maintaining safety and flexibility in various conditions.
ยท Easy DIY Installation: Package includes: 1 x 48V 2000W Brushless Motor, 1 x Motor Controller, 1 x Twistgrip Throttle, 1 x Set of Assembly Hardware, and 1 x User Manual. This motor kit comes with detailed wiring diagram instruction, ideal for DIY enthusiasts and hobbyists looking to upgrade or build custom electric vehicles.
