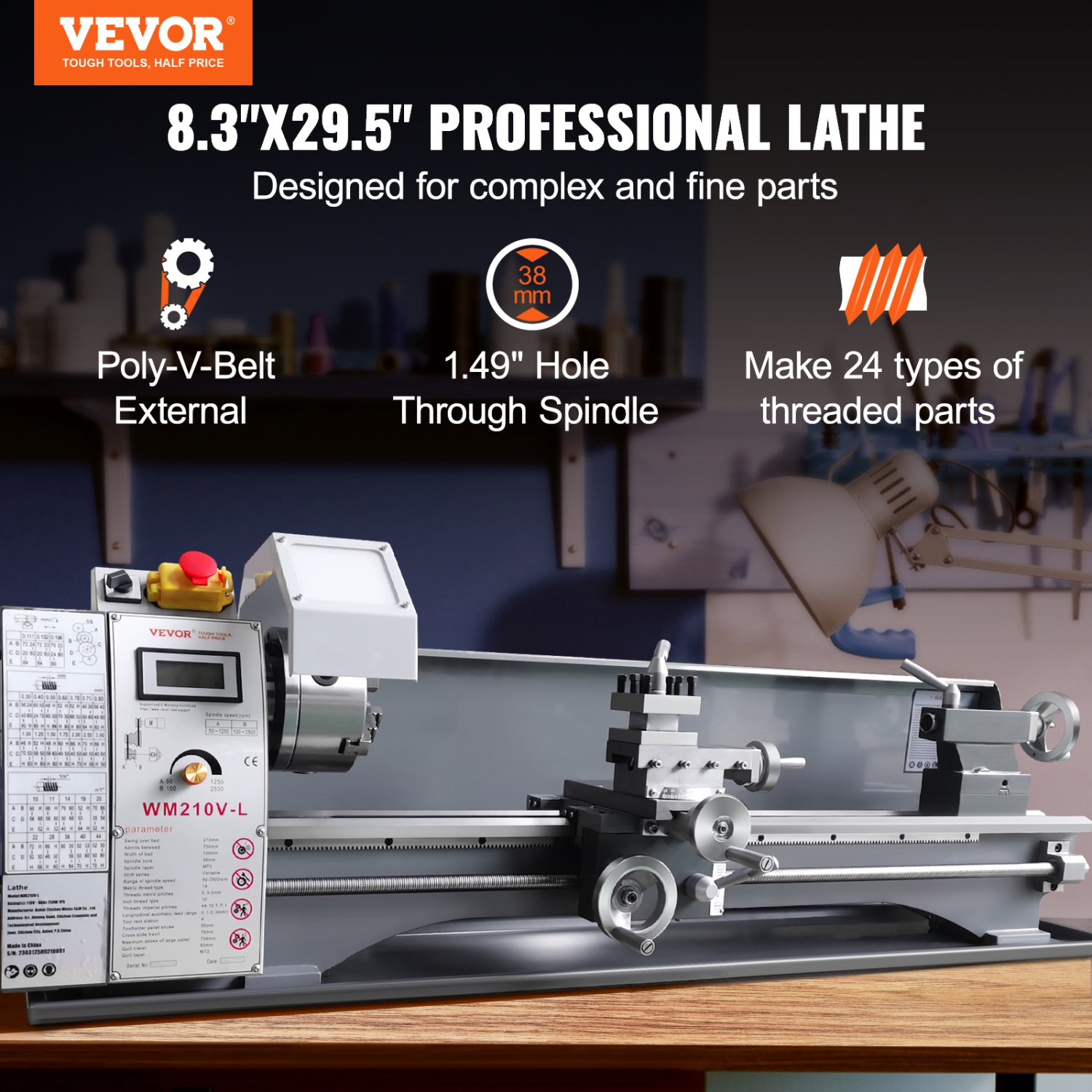

VEVOR 211 mm x 750 mm Metal Lathe Machine, Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

· Convenient Tool Holder

The 4-way rotation tool holder allows you to install 4 common turning tools simultaneously. To change tools, simply open the latch and rotate it.

· Protection Devices

Overload protection, high-speed reverse fool-proofing device, and chuck cover disconnection protection make the processing more secure.

· Precision Steel Guide

The V-shaped precision steel guide has an automatic feed screw and high strength, ensuring the parallelism of the main axis and lathe body.

· Accurate Speed Adjustment

CNC lathe features two speeds that can be precisely adjusted according to your needs: high gear with a range of 100-2500rpm and low gear with a range of 50-1250rpm.

· Wide Application

The 211 mm x 750 mm lathe metal machine is designed for complex and fine parts and accommodates the processing of various materials.

· Enhanced Security

The power lathes have an emergency stop switch, overload protection, chuck cover power off switch, pulley set housing power off switch, and main control panel security switch.

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

Model: WM210V-L

Main Material: HT200 Cast Iron

Lifespan: 3 Years

Spindle Speed: 50-2500 RPM

Hole Through Spindle Diameter: 38 mm / 1.49 in

Spindle Taper: MT5

Tail Stock Taper: MT2

Motor Power: 750W

Voltage: 110V, 60 Hz

Chuck Diameter: 125 mm / 4.9 in

Net Weight: 79 kg / 174 lbs

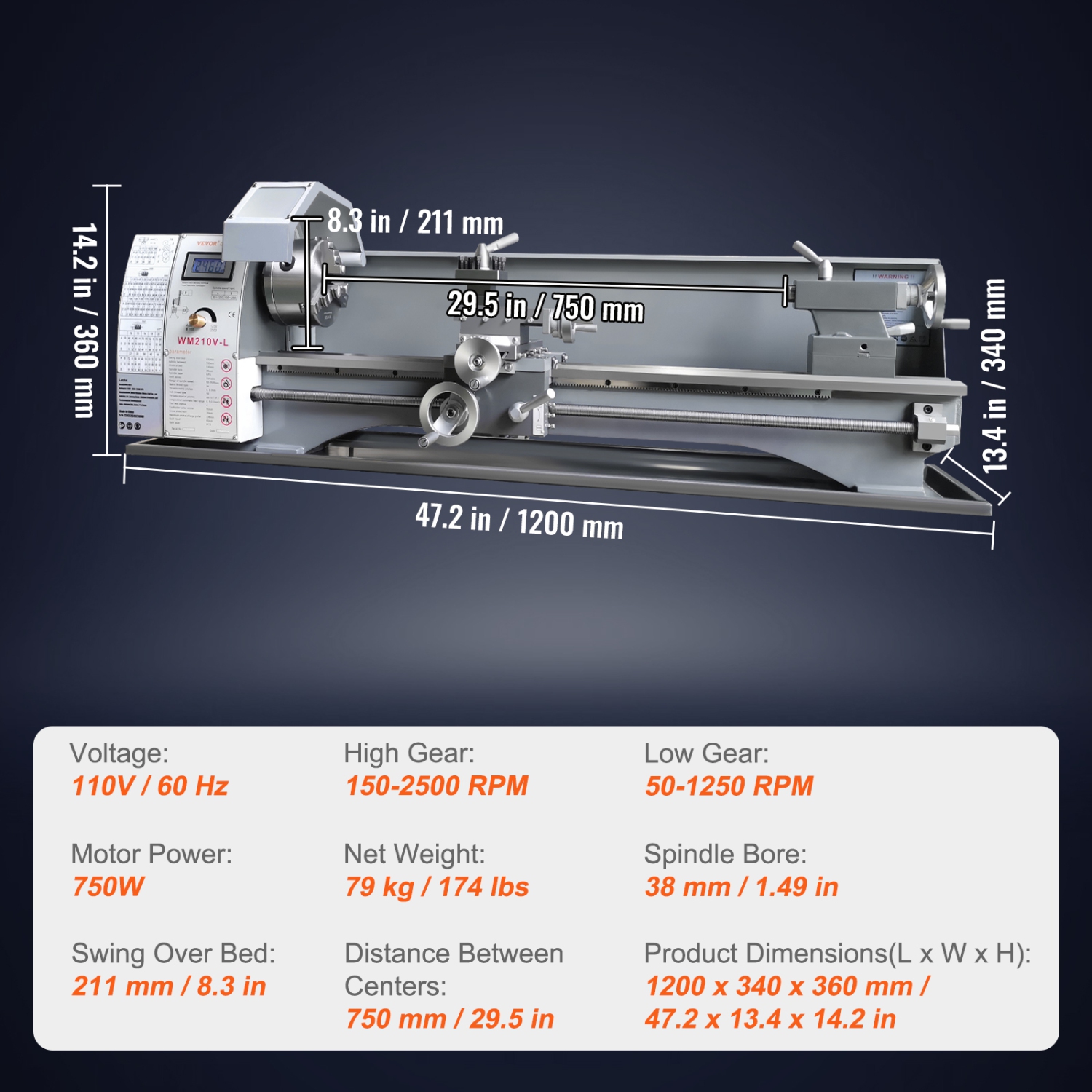

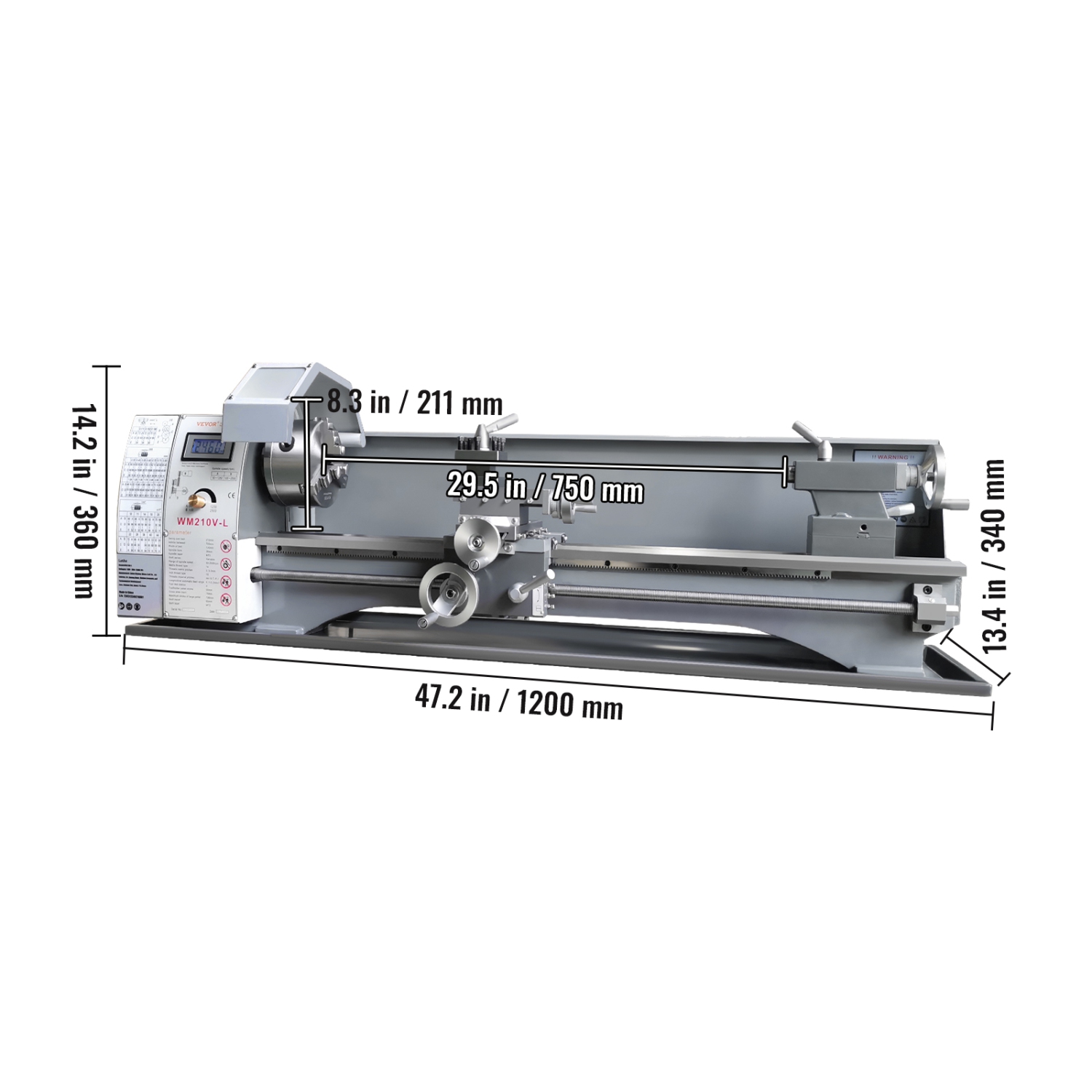

Product Dimensions(L x W x H): 1200 x 340 x 360 mm / 47.2 x 13.4 x 14.2 in

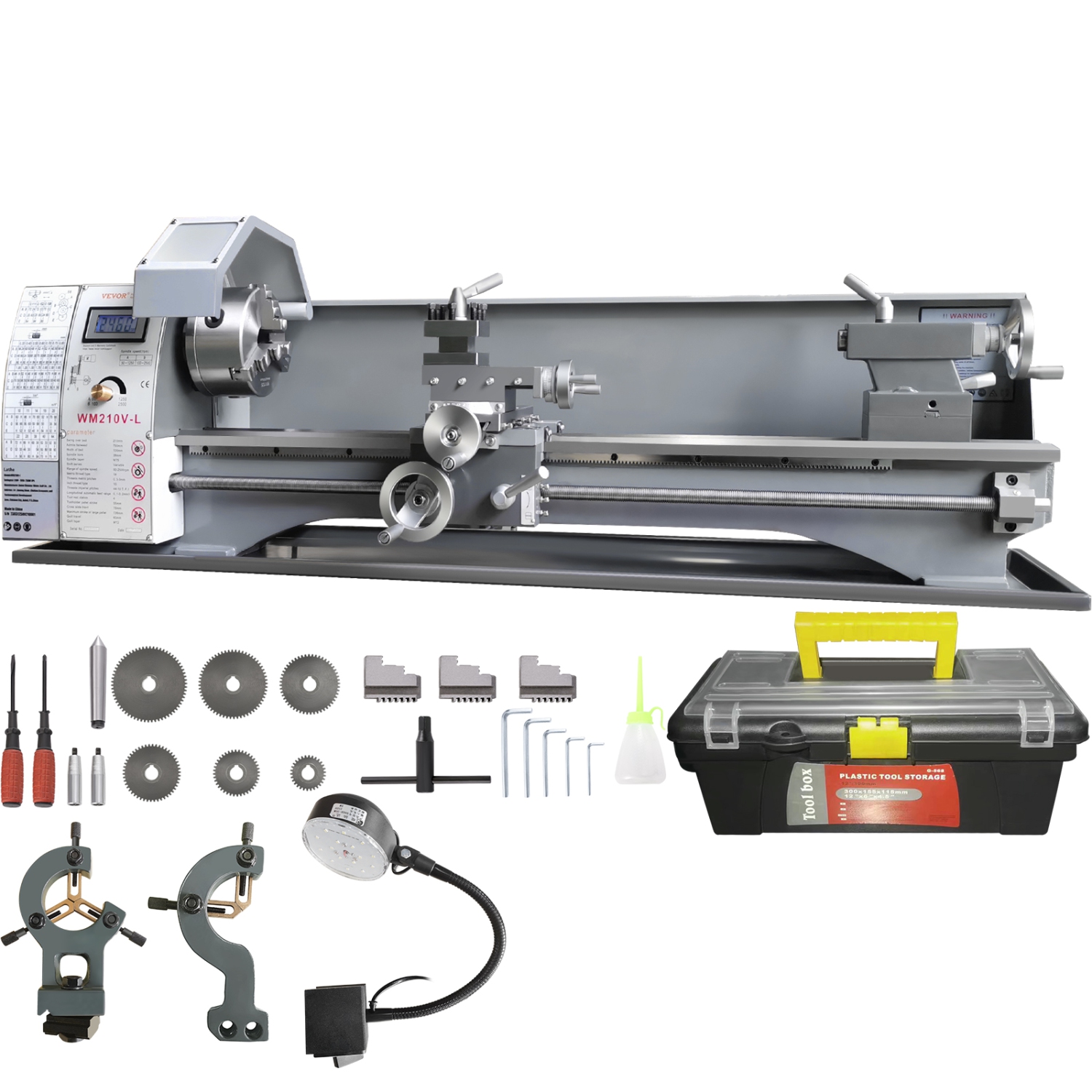

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁

1 x Oil Pan

1 x Oiler

2 x Open Spanner(8-10, 13-16)

1 x Crescent Wrench

1 x Cross Screwdriver

1 x Fiat Screwdriver

1 x Hex Socket Wrenches(2.5，3， 4，5，6)

2 x Dead Center(MT2/MT5)

1 x Pulley Set (30T,33T,35T,50T,52T,40T,60T,66T )

1 x Tool Box

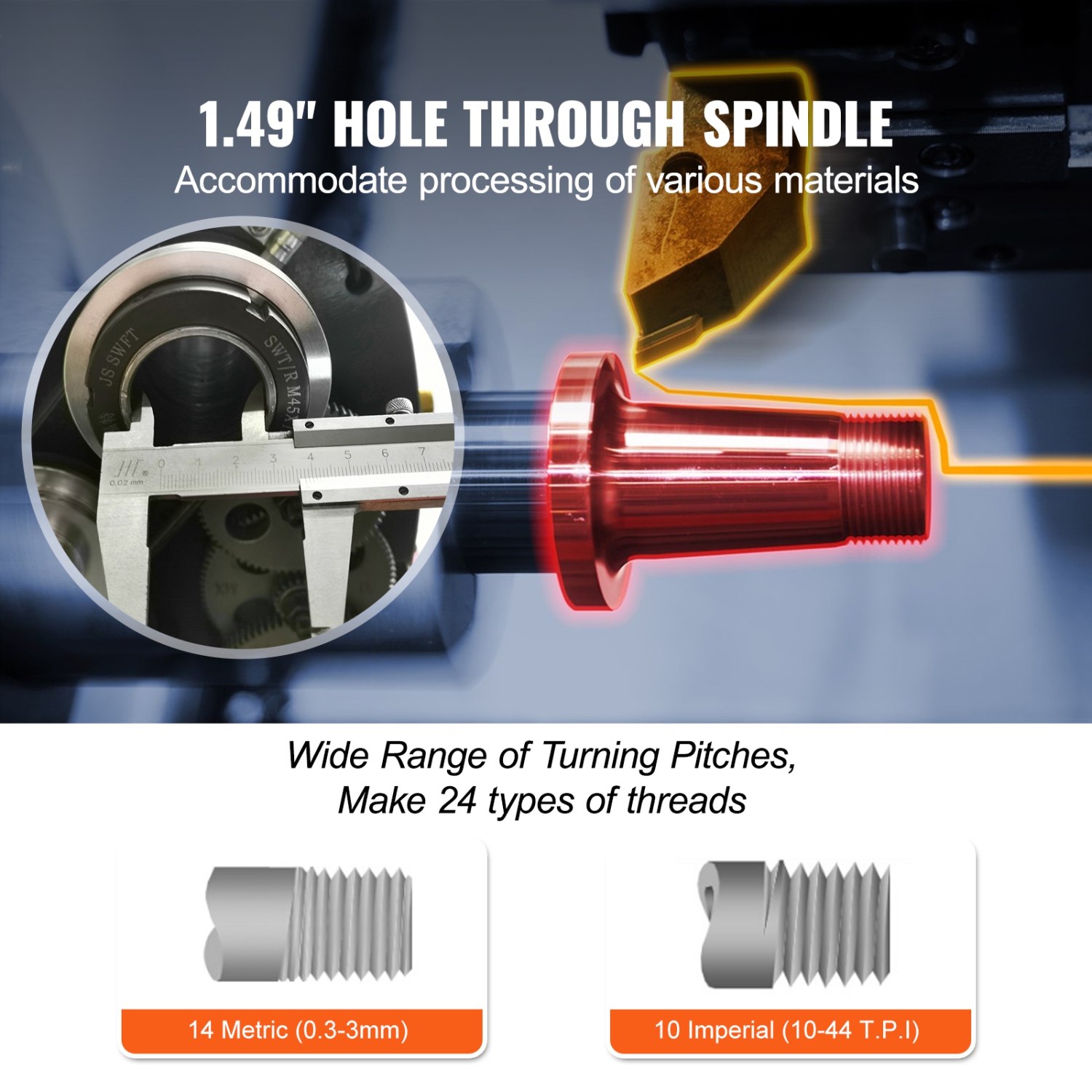

· Widely Used: Our metal lathe machine, measuring 210mm x 750mm, is perfect for processing precision parts and models. It has a wide range of turning pitches that can create 24 different kinds of threads, including 14 metric system (ranging from 0.3-3mm) and 10 imperial system (ranging from 10-44 TPI) threads.

· Built to Last: Our power metal lathes are built to last with high-quality HT200 cast iron. They come equipped with wear-resistant and strong metal gears and aluminum alloy handwheels, ensuring a longer service life.

· 750W Brushless Motor: Our benchtop metal lathe features a 750W brushless motor that provides more power and avoids the need for brush replacements, saving time and effort.

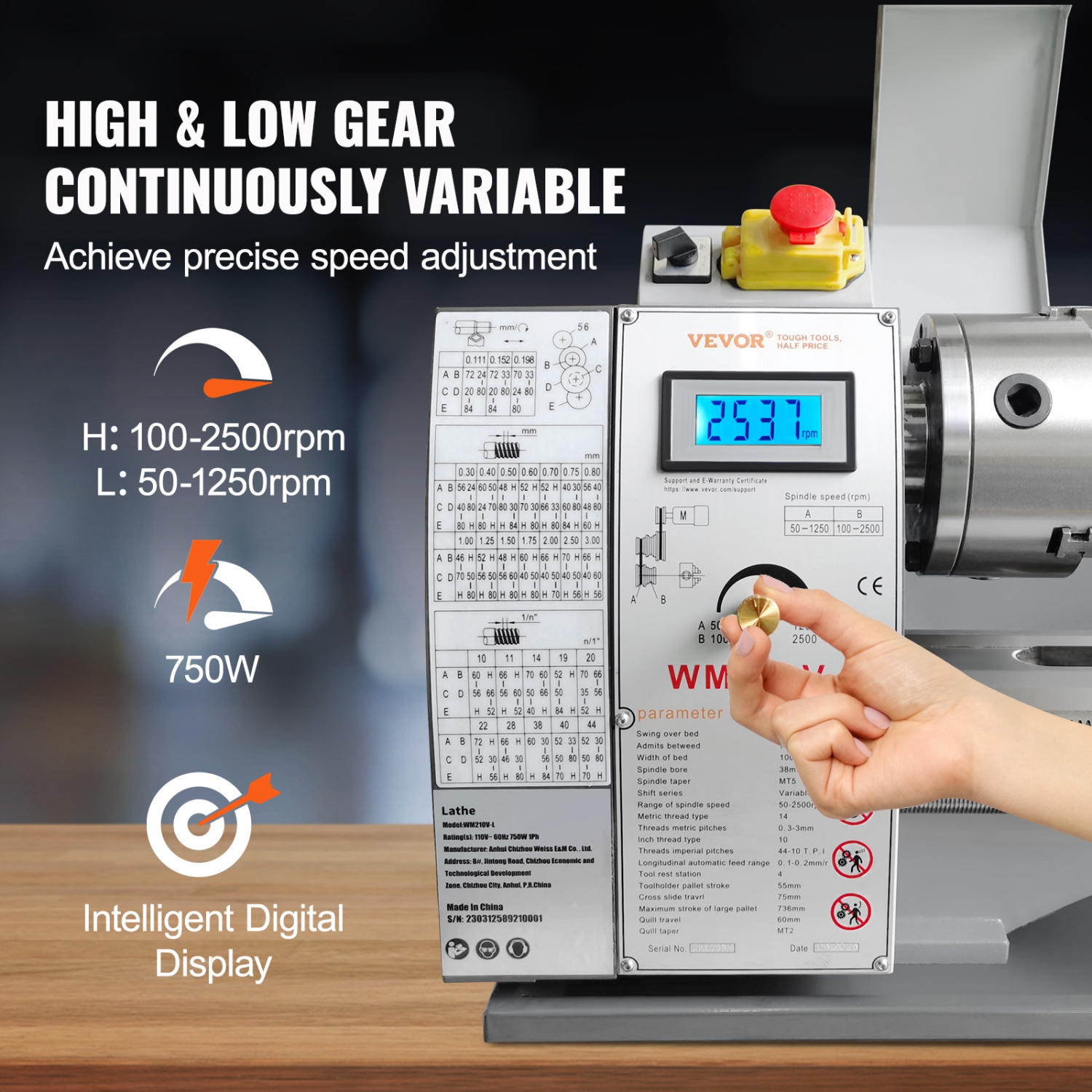

· Continuously Variable: Features a spindle that can turn in both forward and reverse directions, with two-speed options: a high gear of 100-2500 rpm and a low gear of 50-1250 rpm. It also has intelligent electric speed controls and a digital display, allowing for accurate speed adjustments and making your work easier. The height of the lathe tool is not adjustable.

· Security Comes First: Our metal lathe machine has multiple security features in case of emergency, ensuring operator security. These include an emergency stop switch, overload protection, chuck cover power off switch, pulley set housing power off switch, and a main control panel security switch.
