𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Excellent Accuracy

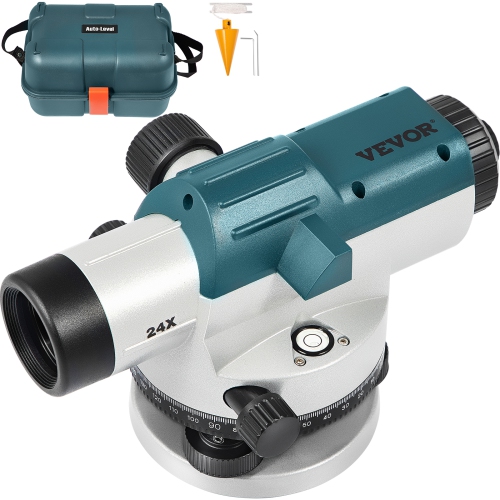

Our automatic optical level has a 24x magnification lens; it is able to provide accurate measurement of 1/16-inch at 100 feet, even in low-light conditions.
· Brighter and Clearer Image
Our optical level kit has a 40 mm larger aperture compared to others. Therefore, it can provide a more precise and brighter image within a distance of 393 feet. The dividing plate scale (crosshairs) is standard. If it is not clear, please rotate the eyepiece to the clearest position of the crosshairs.
· Magnetic Dampened Compensator
This optical level is designed with a self-leveling magnetic dampened compensator that can reduce the impact of vibration; the lock device protects the compensator during transport.
· IP54 Protection
Our automatic optical level is mainly covered by sturdy metal; it features IP54 protection for weather resistance, dust resistance, and durability.
· Ergonomic Design
This surveyors level is designed with a 5/8” X11 thread for standard tripod and a circular bubble vial for easy set-up and alignment. A thick plastic case is provided for you to carry around and store easily.
· Wide Application
Our automatic optical level has been widely used for various construction works, such as building roads or bridges, foundation installation, landscaping or excavations, this auto level offers quick, precise self-leveling.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Model: 24X OPTICAL LEVEL
Magnification: 24X
Aperture: 40 mm
Measuring Range: 393 ft / 120 m
Leveling Accuracy: 1/16" at 100Ft
Leveling Type: Magnetic dampened compensator
Minimum Measuring Distance: 1 ft / 0.3 m
Tripod Mount Thread: 5/8”
IP Rating: IP54
Weight: 2.35KG / 5.2LBS
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Automatic Optical Level
1 x Carrying Case
1 x User Manual
1 x Plumb Line
2 x Screwdrivers
· 24X ＆ 40MM Lens: With a 24X magnification lens and 40 mm large aperture, this automatic optical level allows you to acquire a clear and bright image within the range of 393 ft. In addition, it provides excellent accuracy of 1/16-inch at 100 feet.
· Self-leveling Compensator w/ Lock: This optical level kit contains a magnetic-dampened compensator to reduce the effects of vibration, while the locking device protects the pendulum against damage during transport.
· Industrial-grade Design: Our builders' level is designed with industrial-grade metal housing. It is IP54 waterproof, dust-free, and features impact resistance. Therefore, the level is very stable and ensures the measurement is more accurate.
· Easy Set-up and Alignment: The circular bubble vial with a 90-degree prism makes sure the set-up and alignment are easy and fast; the 5/8" thread at the bottom can be fixed on a standard tripod. When using it, turn the focus handwheel until the target is clear. If there is a problem, it is possible that the focus is out of order, and the rack and gear detachment (rotating too much force, can also cause de-teeth).
· With Sturdy Case: Our automatic optical level comes with a sturdy carrying case and a plumb line. It has been widely used for construction engineering surveys, deformation, and subsidence monitoring, mining survey, etc.
