饾棧饾椏饾椉饾棻饾槀饾棸饾榿 饾棗饾棽饾榾饾棸饾椏饾椂饾椊饾榿饾椂饾椉饾椈
路 The Ultimate Choice for Emergency Doors
Our push bar door locks are compatible with wooden and metal doors, ranging from 30" to 36" wide, suitable for both left and right-hand doors. Easy to operate - a simple push opens the door from the inside.
路 Strength and Security
The panic bar is made from rugged 304 stainless steel, ensuring durability and resistance to rust and corrosion. The high-hardness lock tongue prevents unauthorized access. The dogging key feature allows constant access. The zinc alloy exterior handle and copper lock core ensure longevity.
路 User-Friendly
Operating the push bar panic exit device is a breeze - a simple push from the inside opens the door, while outside access requires a key. It offers one-way access for enhanced safety. Enlarged head cover simplifies installation. Three keys are included to prevent loss.
路 Easy Installation
Installing the push-to-exit bar is straightforward. Determine the installation distance and pre-drill holes. Attach the handle, cover the hole with it, and install the mounting plate on the other side. Align the lock head, cover the hole, and tighten the screws. Secure the lock head casing with four screws.
路 Versatile Application
This exit door push bar provides secure one-way access while keeping high-traffic area doors closed. Widely used in shopping centers, hospitals, hotels, offices, airports, apartments, banks, factories, and recreational facilities, ensuring both people's and building's safety.
路 Dogging Key
The quick-open structure can be set to constant open mode with the dogging key, making rotation comfortable and effortless. It's also easy to store.
饾棪饾椊饾棽饾棸饾椂饾棾饾椂饾棸饾棶饾榿饾椂饾椉饾椈饾榾
Item Model Number: 600S
Door Width Compatibility: 30" - 36" / 762 - 914 mm
Push Plate Specifications: 1.85" x 19.69" / 47 x 500 mm
Back Plate Specifications: 1.57" x 7.63" / 40 x 194 mm
Lock Head Cover: 6.06" x 3.43" x 2.6" / 154 x 87 x 65.8 mm
Exterior Handle Dimensions: 0.83"-0.98" x 5.28" / 21-25 x 134 mm
Door Hole Diameter: 桅2.17" / 桅55 mm
Main Material: 304 Stainless Steel
Net Weight: 7.8 lbs / 3.55 kg
Product Dimensions: 31.9" x 6" x 2.6" / 811 x 153 x 65.8 mm

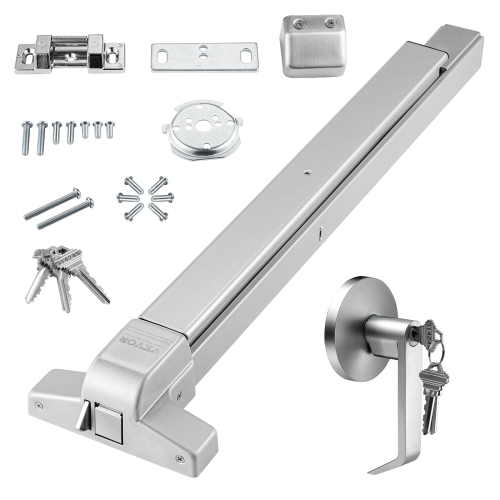

饾棧饾棶饾棸饾椄饾棶饾棿饾棽 饾棖饾椉饾椈饾榿饾棽饾椈饾榿
1 x Installation Screw Kit
1 x Dogging Wrench
1 x Seal
1 x Seal Gasket
1 x End Cap
1 x Mounting Plate
3 x Keys
1 x User Manual
路 Panic Bar for Exit Door: This push bar door lock is constructed from thickened 304 stainless steel, rust and corrosion-resistant. It complies with ANSI testing standards, enduring over 500,000 cycles of opening/closing tests. It's also fire-resistant and heat-resistant, making it the ideal choice for high-traffic emergency doors. The zinc alloy handle and copper lock core ensure the longevity of the lock, even in extreme weather conditions.
路 Convenient and Secure: In emergencies, the push bar panic exit device can be easily pushed open from the inside with a hand or another body part. External access requires a key to open the outside door handle. When closing the exit door, it automatically locks, preventing unauthorized entry. It includes a dogging quick-opening design, allowing you to set it to a constant open mode, suitable for large-scale evacuation.
路 High Compatibility: The overall dimensions of this panic bar are 31.9 x 6 x 2.6 inches (811 x 153 x 65.8 mm). It is suitable for both 30-inch to 36-inch wide wooden and metal doors and can be used on both left and right doors. Please note that it is not suitable for glass doors.
路 Easy Installation: We provide detailed installation instructions, and the lock is pre-drilled and comes with all the necessary accessories. Simply align and install quickly. The enlarged head cover design makes installation even more convenient.
路 Wide Application: The exit door push bar is widely used in various high-traffic areas, providing one-way access to effectively prevent unauthorized entry into buildings. It provides robust security for emergency locations such as shopping centers, hospitals, hotels, office buildings, airports, apartments, banks, factories, and recreational facilities.
