𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

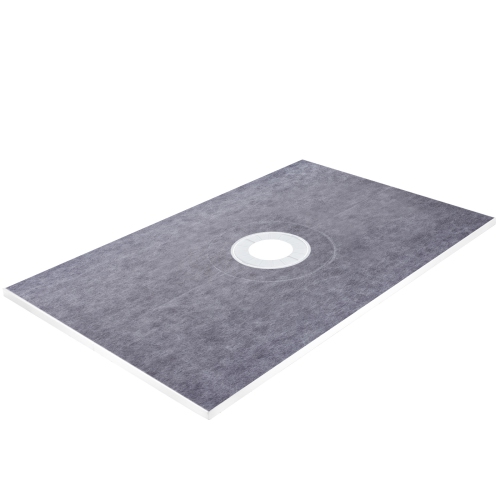

· Central Drain Tray
The high-density foam shower tray is light and only 0.8'' in thickness. It is effortless to lay under the floor tiles and has an excellent water-impermeable performance. Also, you can cut the tray according to your needs.

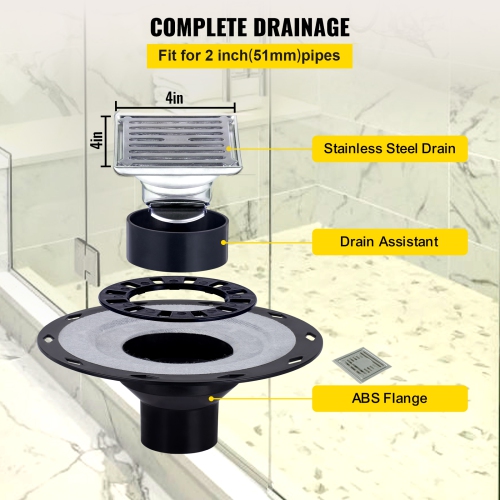

· Complete Drainage
We offer you a 304 stainless steel grate, saving your cost without purchasing separately. The flange comes with ABS material and has advantages of corrosion-proof and water-impermeable, extending use life.
· 2 Cuttable Curbs
These 2 curbs are made of high-stability XPS to effectively stop the water overwhelming out of the shower tray and avoid floor tiles soaked with water. Cut the curbs easily with a saw blade to fit using the area.

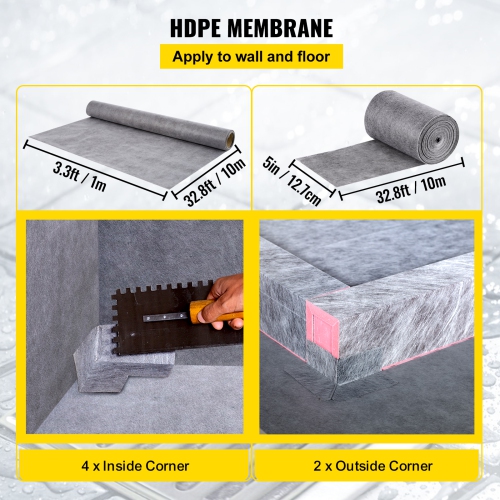

· HDPE Membrane
You have 2 rolls of the water-impermeable membrane of different sizes. Stick the membrane to ensure the wall and floor vapor-proof. There are considerate inside and outside corners for time-saving installation.

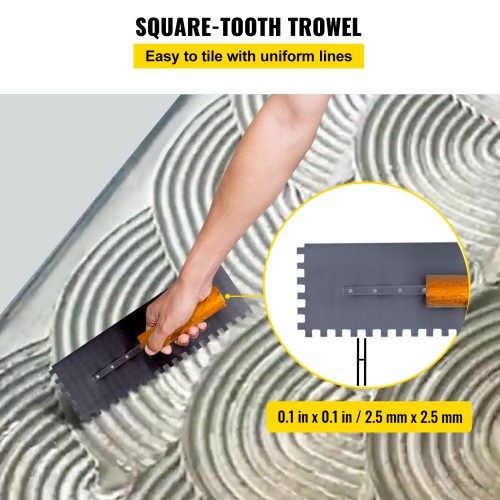

· Square-Tooth Trowel
The uneven shape of the mortar surface is conducive to the installation of wall tiles and floor tiles, so we provide you with a square-serrated trowel. Brush mortar with it; the bricks are kept from cracking.
· Ease of Installation
All the components of a perfect water-impermeable shower kit are given to you. Use these premium tools; you can enjoy your DIY time for creating a unique watertight bathroom environment.

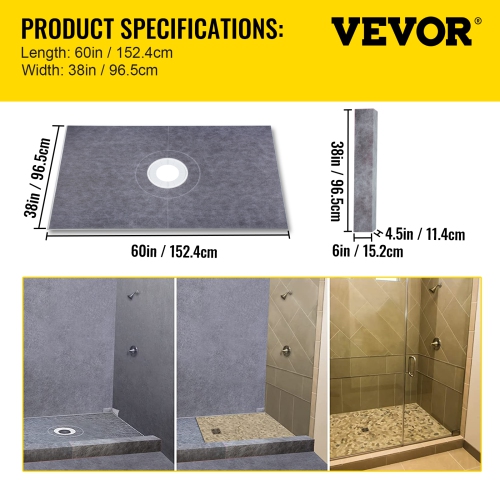

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Model: VV-LYDZ-ABS3860Z
Material of the Flange: ABS

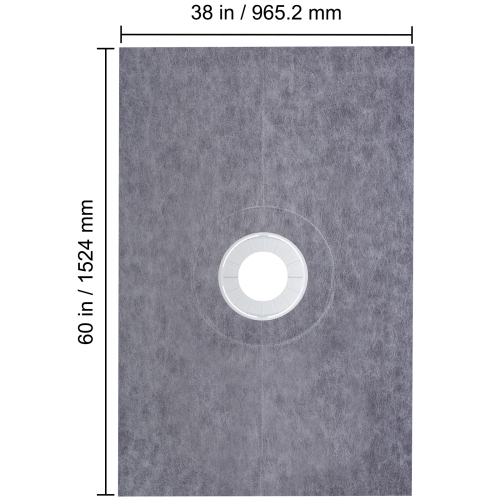

Size of the Shower Tray (W x L): 38 in x 60 in/ 965.2 mm x 1524 mm
Size of the Shower Curb (L x W x H): 38 in × 4.5 in × 6 in/ 965.2 mm × 114.3 mm × 152.4 mm
Material of the Grate: 304 Stainless Steel
Size of the Grate (W x L): 4 in x 4 in/ 10 cm x 10 cm
Size of the Membrane: 121.3 sq ft/ 11.3 m²

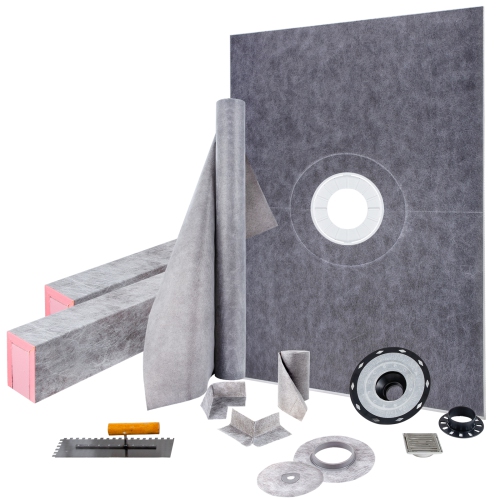

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Shower Tray
2 x Shower Curb
1 x ABS Flange
1 x Flange Collar
1 x Drainage Assistant
1 x Stainless Steel Grate
1 x Trowel
4 x Inside Corners
2 x Outside Corners
2 x Water-Impermeable Membrane
1 x Valve and Pipe Seal
· 【PREMIUM SHOWER TRAY】 - Our shower curb kit provides you a shower tray made of EPS high-pressure foam board. Overall size: 38 in × 60 in (965.2 mm × 1524 mm). The drainage hole is set in the middle with a 4 in (10 cm) diameter for effective water running. The shower tray is equipped with a gray water-impermeable membrane with fluffy texture on the surface, convenient for mortar brushing. The tray forms a 5° inclination from four sides to the middle, which is convenient for drainage.
· 【DRAINAGE ACCESSORIES】 - The shower curb overlay includes a durable ABS flange and auxiliary drainage device (fit for 2 inch pipes) to ensure smooth water flowing. With a gravity automatic seal grate, pipes won’t be blocked. In addition, we offer 2 shower curbs with the size of 38 in × 4.5 in × 6 in (965.2 mm × 114.3 mm × 152.4 mm). Adopting XPS plastic extruded board, 2 shower curbs are easy to cut and can be adjusted according to the actual needs of the length.
· 【WATER IMPERMEABLE】 - 2 rolls of HDPE material water-impermeable membrane are included in our shower base kit. Small roll size: 5 in × 32.8 ft(12.7 cm × 10 m). Large roll size: 3.3 ft × 32.8 ft(1 m × 10 m). You are allowed to choose the membrane for different areas of the wall or floor. For your quick use, 4 inside corners and 2 outside corners of the membrane are provided without time-consuming cutting.
· 【STAINLESS STEEL TROWEL】 - We give you an excellent square-toothed stainless steel trowel for mortar brushing, which is not provided by other products. This trowel is solid and non-deformed. The trowel blade features square-serrated to keep the mortar on the surface uneven, enhancing the adhesion between the membrane and the wall or floor.
· 【EFFORTLESS INSTALLATION】 - Install a shower bed kit is not difficult and won’t cost you a long time. It contains all the water-impermeable components, including the shower tray, flange, stainless steel drain, membrane, and shower curb, required to create a non-maintenance, watertight shower assembly. You should use an unmodified thin set to install it. Our product is a good choice for your water-impermeable bathroom.
