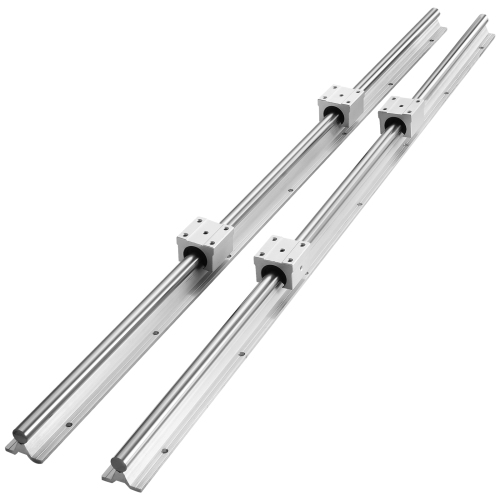

VEVOR 39.4 in/1000 mm Linear Guide Rail Set, SBR20 1000mm, 2 PCS SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Rails and Bearings for Machines DIY Project CNC Router Machines

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

· Handle Pressure with Ease

The linear bearing adopts an all-metal structure, and the slide block is tightly locked on the linear shaft, which has a high bearing capacity.

· Smooth Sliding without Stutter

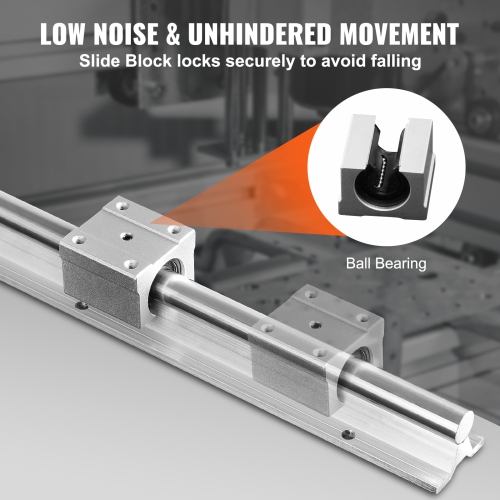

Aluminum SBR slide block and built-in ball bearings slide smoothly and move more effortlessly to ensure long-term stable operation.

· More Accurate Than Ever

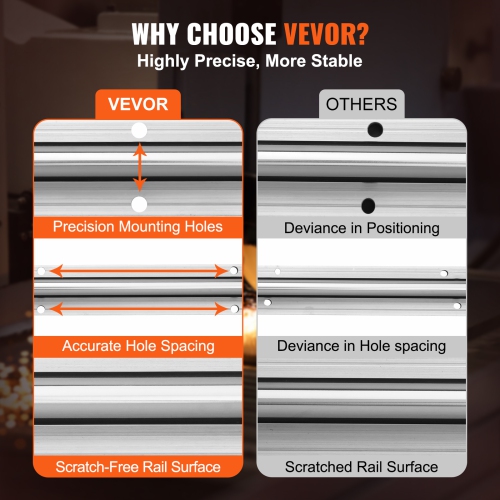

The linear motion guides have accurate hole distance, hole diameter, and standard shaft diameter, allowing you to install your equipment more precisely.

· Broad Usage Scenarios

Linear rail kit is widely used in high-load automation equipment and DIY equipment project. For example, DIY CNC engraving machines, lathes, etc.

· Strong Corrosion Resistance

The surface of the linear shaft of the linear motion slide rails is chrome plated, which is fearless of the humid environment and has good heat resistance at the same time.

· Installation Made Easy

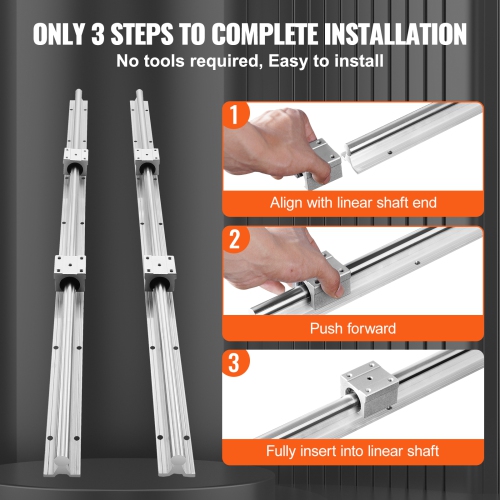

The linear guide rails come assembled with the shaft, support, and sliding blocks and have mounting screw holes in both the blocks and rail supporting base for convenient installation and connection. The sliding bearing tightness can be adjusted using the side screw hole of the block.

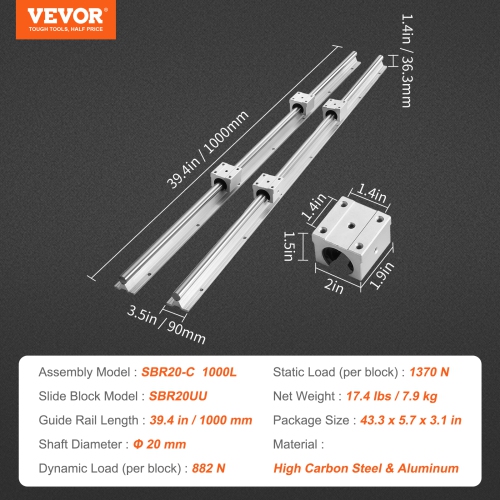

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

Model Number: SBR20-C 1000L

Slide Block Model: SBR20UU

Guide Rail Length: 39.4 in/1000 mm

Shaft Diameter: Φ20 mm

Dynamic Load (per block): 882 N

Static Load (per block): 1370 N

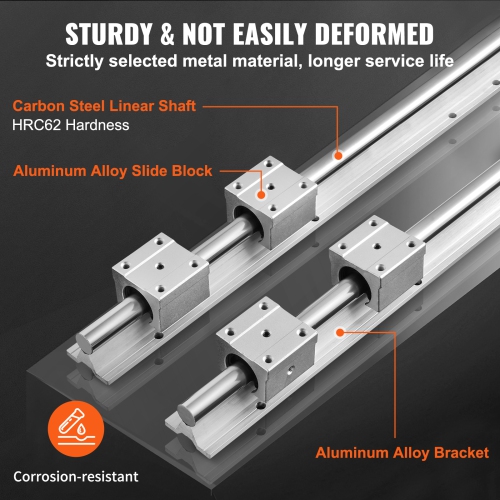

Material: High Carbon Steel & Aluminum

Mounting Hole Distance A: 1.4 in/35 mm

Mounting Hole Distance B: 1.4 in/35 mm

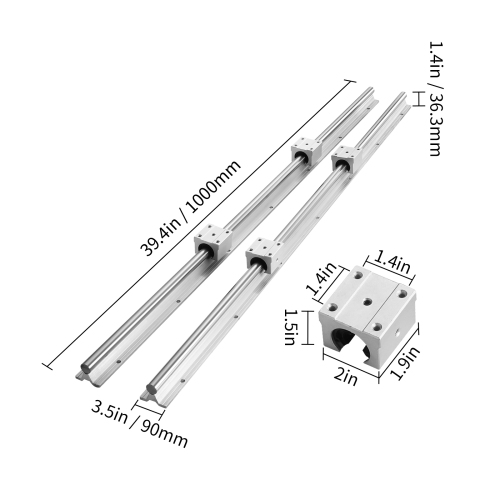

Slide Block Size(L x W x H): 2 x 1.9 x 1.5 in/50 x 48 x 39 mm

Product Dimensions(L x W x H): 39.4 x 3.5 x 1.4 in/1000 x 90 x 36.3 mm

Package Size(L x W x H): 43.3 x 5.7 x 3.1 in/1100 x 145 x 80 mm

Net Weight: 17.4 lbs/7.9 kg

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁

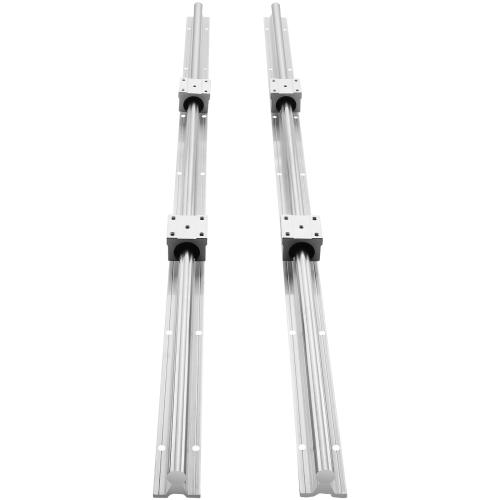

2 x SBR20 1000mm Linear Guide Rails with Supports

4 x SBR20UU Sliding Blocks

· SBR Linear Guide Rail Set: SBR20-1000 mm Linear motion guide rail includes 2 x 39.4 in/1000 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.

· Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.

· Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.

· High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.

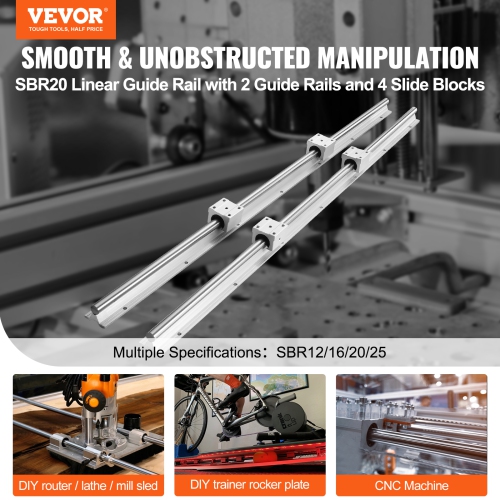

· Wide Application: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.
