饾棧饾椏饾椉饾棻饾槀饾棸饾榿 饾棗饾棽饾榾饾棸饾椏饾椂饾椊饾榿饾椂饾椉饾椈

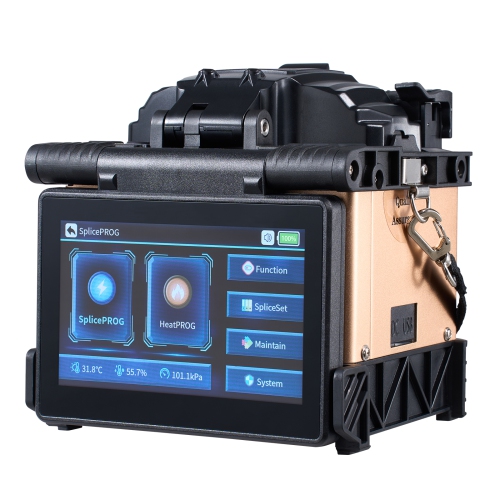

路 5-Inch Color Touch Screen
Featuring a 5-inch color touch screen with a user-friendly interface, this fiber optic fusion splicer offers multiple display modes to meet various needs, making it easy to monitor every detail throughout the splicing process.
路 Dual White LED Lights
Built-in dual LED lights provide excellent illumination, this optical fusion splicer allows precise fiber alignment even in low-light or outdoor conditions. Operate with confidence, no matter the lighting situation.
路 Reinforced for Extreme Conditions
Designed with reinforced protection, this clad alignment fusion splicer performs reliably in extreme conditions, including rain, high temperatures, snowstorms, and high altitudes, making it ideal for challenging outdoor applications.
路 Quality In the Details
Thoughtful features such as a cooling rack, protective case, automatic cleaning tank, and 3 in 1 fiber holder enhance portability and safety, elevating the overall user experience and reflecting professional-grade quality.
路 Compact and Portable
This device features a compact design that鈥檚 easy to carry, making it ideal for various work settings.
路 All-in-One Kit
This comprehensive kit comes with everything you need for seamless fiber optic work. The durable, portable case keeps each accessory neatly organized and easily accessible.
饾棪饾椊饾棽饾棸饾椂饾棾饾椂饾棸饾棶饾榿饾椂饾椉饾椈饾榾

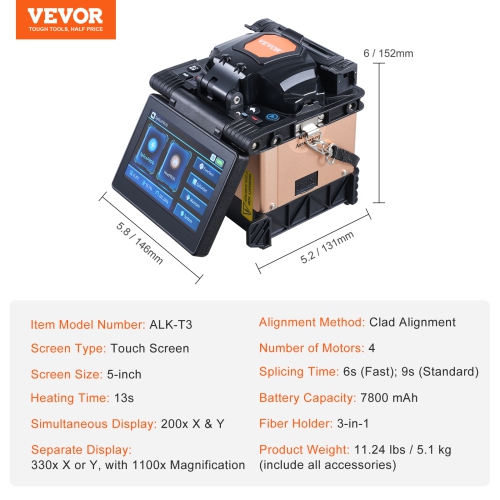

Item Model Number: ALK-T3
Alignment Method: Clad Alignment
Screen Type: Touch Screen
Number of Motors: 4
Screen Size: 5-inch
Splicing Time: 6s (Fast); 9s (Standard)
Heating Time: 13s
Battery Capacity: 7800 mAh
Separate Display: 330x X or Y, with 1100x Magnification
Simultaneous Display: 200x X & Y
Fiber Holder: 3-in-1
Product Weight: 11.24 lbs / 5.1 kg (include all accessories)

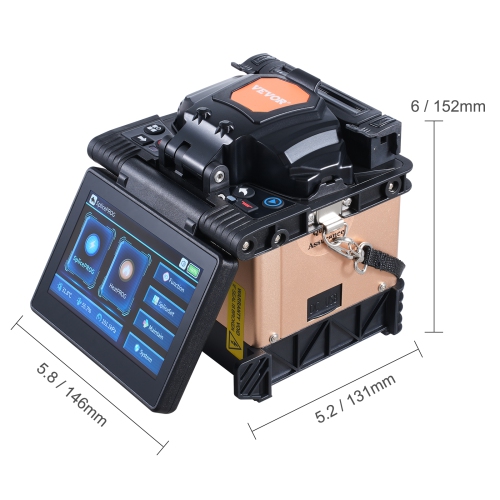

Product Size: 5.8 x 5.2 x 6 in / 146 x 131 x 152 mm

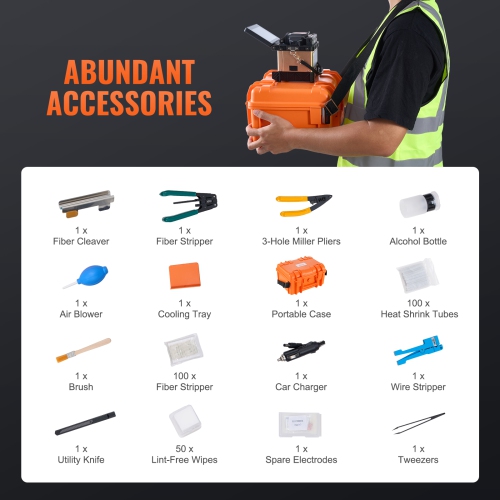

饾棧饾棶饾棸饾椄饾棶饾棿饾棽 饾棖饾椉饾椈饾榿饾棽饾椈饾榿
1 x Fiber Fusion Splicer
1 x Fiber Cleaver
1 x Fiber Stripper
1 x 3-Hole Miller Pliers
1 x Alcohol Bottle
1 x Air Blower
1 x Power Adapter + Power Cord
1 x Cooling Tray
1 x Portable Case
100 x Heat Shrink Tubes
1 x Brush
100 x Cotton Swabs
1 x Car Charger
1 x Wire Stripper
1 x Utility Knife
50 x Lint-Free Wipes
2 x Spare Electrodes
1 x Tweezers

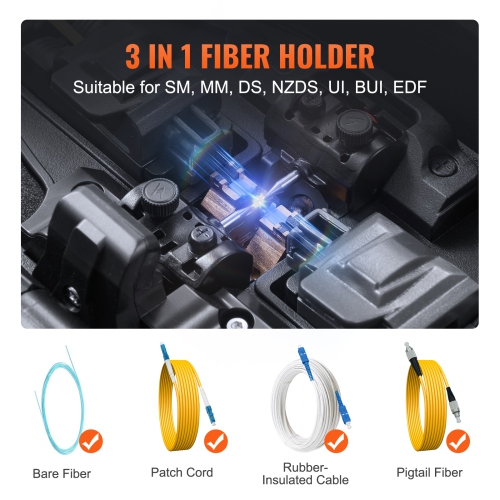

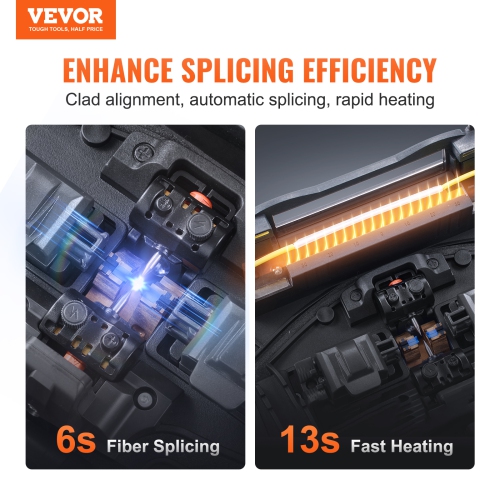

路 High Splicing Efficiency: Our fiber fusion splicer features 4 high-precision motors and clad alignment, enabling rapid splicing in just 6s and quick heating in 13s, with a fusion loss as low as 0.01 dB (MM). It features a 3-in-1 fiber holder, compatible with SM, MM, DS, NZDS, UI, BUI, and EDF fibers.

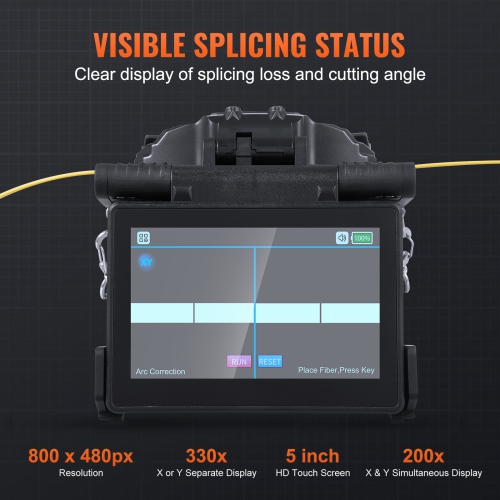

路 High-Definition Display: 5-inch color touch screen offers multiple display modes and clear viewing. It offers an independent 330x X or Y magnification display, double-click to zoom up to 1100x ; and simultaneous 200x X/Y display鈥攅nsuring clear and visible fiber cores.

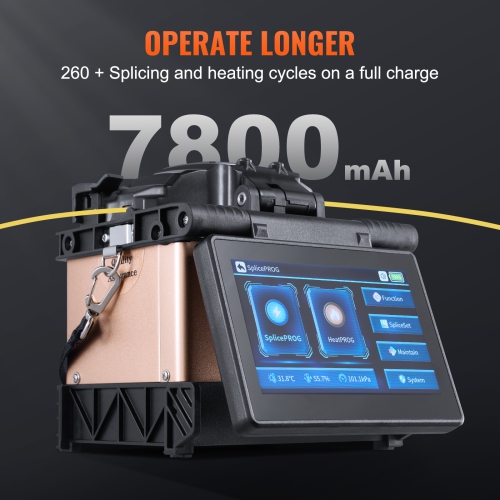

路 Extended Operation Time: 7800mAh high-capacity rechargeable battery allows for over 260 continuous fusion splicing and heating cycles on a full charge. The side USB port enables convenient data transfer and charging. Don't worry about running out of power during critical tasks anymore!
路 Sturdy and Durable: Our fiber optic fusion splicer surface is made of sturdy ABS and PC material - lightweight, compact and durable. It is dustproof, shatterproof, and shockproof, suitable for dry climates, snowstorms, high altitudes, and high-temperature environments.
路 Professional All-in-One Kit: Keep your accessories neatly organized with the portable case. The optical fusion splicer kit includes a fiber fusion splicer, fiber cleaver, fiber stripper, 3-hole miller pliers, alcohol bottle, air blower, cooling tray, heat shrink tubes, brush, cotton swabs, and other essential tools.
