饾棧饾椏饾椉饾棻饾槀饾棸饾榿 饾棗饾棽饾榾饾棸饾椏饾椂饾椊饾榿饾椂饾椉饾椈

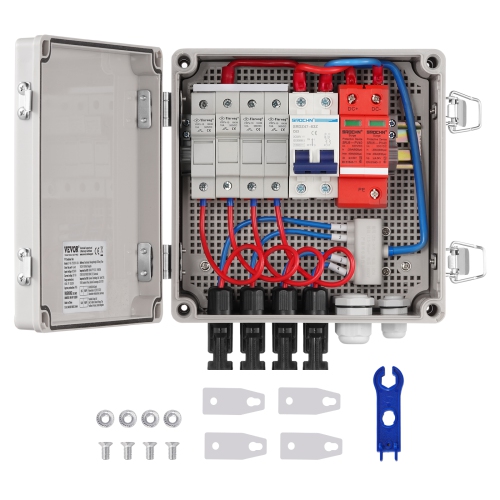

路 Professional PV Combiner Box
With four 10A DC fuses, lightning protection, and a 500V 63A circuit breaker, our PV combiner box is engineered to streamline connections between your solar array and inverters and optimize system structure.
路 Easy Opening & Closing
Our PV combiner box features a latch design for you to easily open and close the box without the need for keys. Say goodbye to the hassle of searching for keys and hello to seamless operation, ensuring quick and convenient access whenever needed.
路 Multiple Layers of Protection
With built-in safeguards, including short-circuit protection, lightning protection, overvoltage protection, overcurrent protection, and ground protection, our solar combiner box offers unparalleled peace of mind, making it the reliable choice for your solar setup.
路 Effortless Installation
Our PV combiner box comes with a complete set of installation accessories, making it a breeze to assemble and integrate into your solar panel system, ensuring seamless connections and hassle-free setup. You can install it anywhere!
路 Wide Application
Whether it's for public facilities, engineering projects, residential use, industrial settings, or even recreational vehicles, our PV combiner box is the perfect fit. Trust in our PV combiner box to power up your solar projects across different fields!
路 Dual-Color Wire
Equipped with dual-color wiring in red and blue, our combiner box for solar panels ensures tidy and efficient connections. You can easily identify and connect the wires with confidence. Say goodbye to tangled and messy wiring!
饾棪饾椊饾棽饾棸饾椂饾棾饾椂饾棸饾棶饾榿饾椂饾椉饾椈饾榾

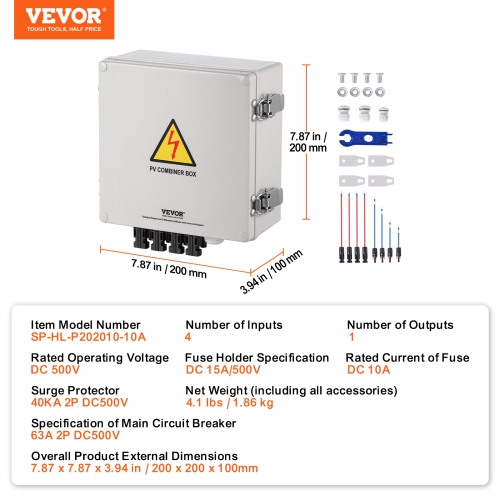

Item Model Number: SP-HL-P202010-10A
Number of Inputs: 4
Number of Outputs: 1
Rated Operating Voltage: DC 500V
Fuse Holder Specification: DC 15A/500V
Rated Current of Fuse: DC 10A
Specification of Main Circuit Breaker: 63A 2P DC500V
Surge Protector: 40KA 2P DC500V
Protection Rating: IP65
Door Opening Method: Latch Opening
Mounting Plate: Detachable Mounting Plate(Material: ABS Mesh Plastic Base)
Sealing Strip: PU Polyurethane Foam Material(Black)
Main Material: ABS Plastic Material+RAL7035 Grey-White Finish
Net Weight (including all accessories): 4.1 lbs / 1.86 kg

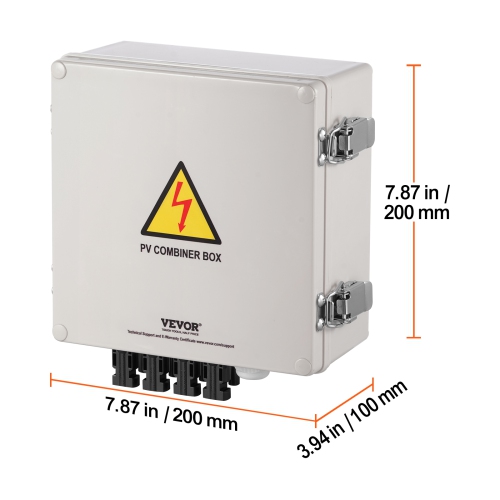

Overall Product External Dimensions (L x W x H): 7.87 x 7.87 x 3.94 in / 200 x 200 x 100 mm

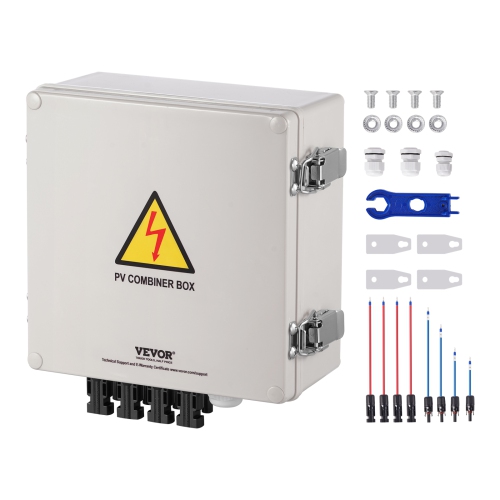

饾棧饾棶饾棸饾椄饾棶饾棿饾棽 饾棖饾椉饾椈饾榿饾棽饾椈饾榿
4 x MCB Female Connectors with Red Wire (2.5 mm虏)
4 x MCB Male Connectors with Blue Wire (2.5 mm虏)
2 x PG13.5 Plastic Waterproof Glands
1 x PG9 Plastic Waterproof Gland
1 x MC4 Tool
4 x Cold Rolled Steel Wall Mounting Brackets
4 x Screws

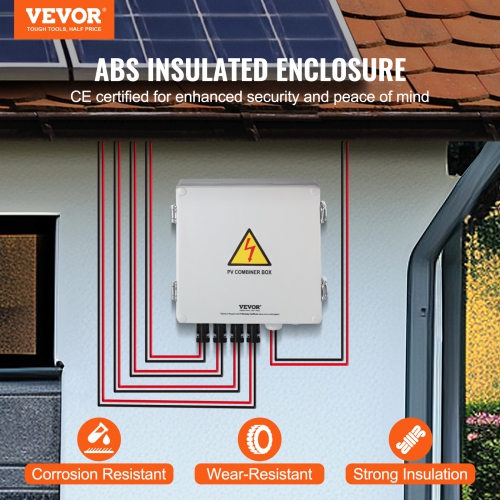

路 Durability Meets Reliability: Engineered from ABS insulation material and tested to CE standard, our PV combiner box ensures impeccable insulation, moisture resistance, and drip-free performance. Plus, It is built to resist impacts and breakage, ensuring your equipment remains secure in even the most challenging environments. Elevate your solar setup with our solar combiner box!

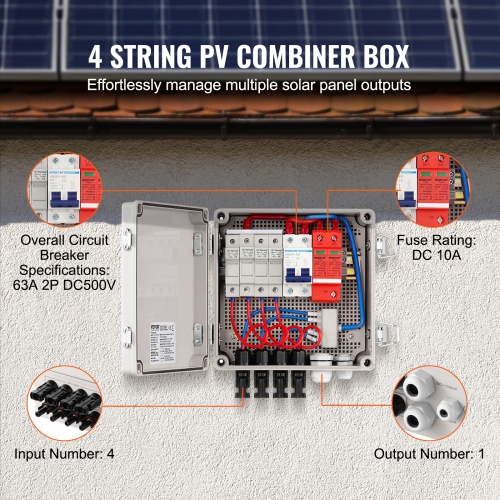

路 Professional PV Combiner Box: Featuring 4 10A DC fuses and a 63A circuit breaker, our 4 string PV combiner box makes maintenance a breeze, and you can easily cut off circuits. Say goodbye to the large scope of power outages in case of PV system failures. Get ready to optimize your PV system's performance and boost output power to new heights.

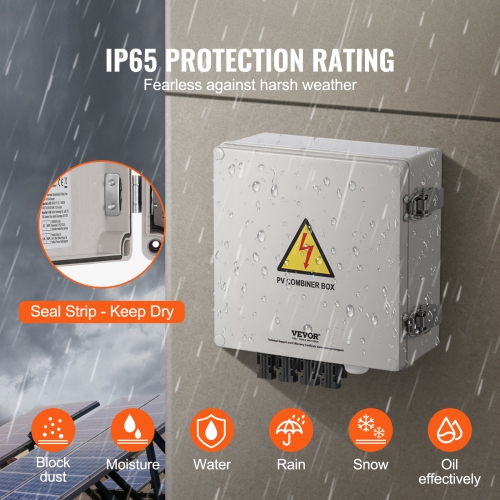

路 IP65 Dust & Water Barrier: Our solar PV combiner box boasts an IP65 rating, ensuring waterproof and dustproof protection for long-lasting durability. No frequent replacements are required鈥攐ur combiner box is built to withstand the elements. Equipped with sealing strips, it ensures a dry interior, seamlessly deflecting rain and dust. Enjoy peace of mind with outdoor use!

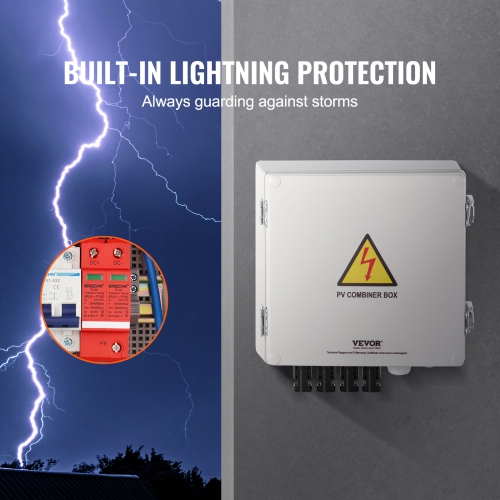

路 24/7 Lightning Protection: Our solar PV combiner box is the perfect outdoor companion. With built-in lightning protection, it effortlessly shields against lightning strikes, ensuring peace of mind in any outdoor environment. Bring on the harshest weather鈥攐ur combiner box is ready to weather the storm.

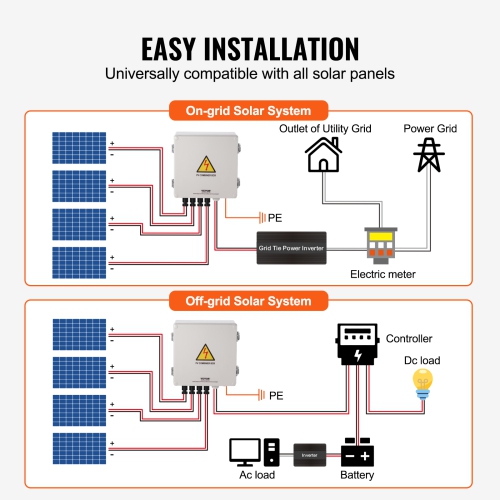

路 Installation Made Easy: Set up your solar system in no time with our user-friendly PV combiner box, which is perfect for both grid-tied and off-grid solar power systems and is compatible with various solar panels that use standard solar connectors. Experience hassle-free installation and enjoy a secure connection that stands the test of time!
