𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Fit for Yamaha 4-Stroke
If your Yamaha boat (4-stroke) has problems with sticky throttle, unresponsive throttle, or even a broken controller, then you need our boat throttle control box that can withstand multiple push-pull maneuvers.
· Smooth Operation
The large button below the control level opens the throttle to warm up before starting the yacht, giving you a smoother driving experience
· Reliable Trim Switch
The control lever is equipped with a reliable trim switch, the key is not easily damaged, and the outboard motor's tilt lift and tilt drop can be effectively performed.
· Air-fuel Ratio Adjustment
Our remote control box equips with low temperature start air oil ratio adjustment function, can adjust the air volume and fuel volume, in cold weather can also start the engine.
· Installation Tips
The original push switch can be changed to a pull switch by adjusting the cable. When installing the boat throttle controller, turn off the engine and measure the cable length.
· Completed Accessories
All accessories required for installation are included in the package, including throttle joints, sponge decorative rings, protective rubber sleeves, screws, nuts, etc., which can be used and assembled correctly with clear instructions.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: 704-48205-P1
Operating Voltage: DC12-24V
Operating Current: 2A
Installation Method: Top Mount
Compatible Outboard Motor Brand: Yamaha (4-Stroke)
Number of Cable Pins: 5-Pin Plug
Cable Length: 4.6 ft / 1440 mm
Main Material: Aluminum Alloy ADC2+ASA
Product Weight: 5.5 lbs / 2.49 kg
Product Dimensions: 17.9" x 7.1" x 3.8" / 455 x 180 x 96 mm

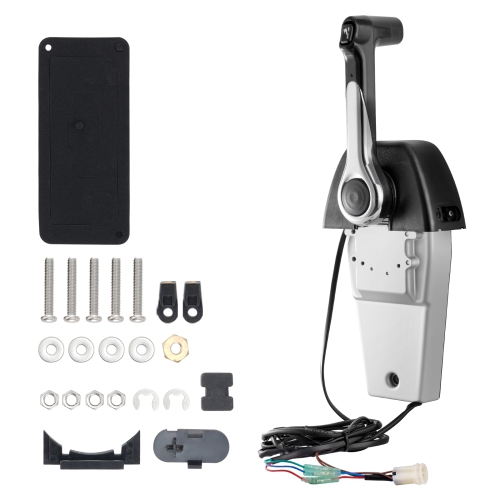

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Outborad Remote Control
5 x M5*30 Round Head Screws
4 x Flat Washers (6)
4 x M5 Hex Nuts
1 x M5 Copper Nut
2 x Spring Clips
1 x Rubber Sleeve
2 x Throttle Connectors
1 x Foam Ring
2 x Plastic Mounting Blocks
1 x Protective Rubber
· Boat Throttle Control: Our top-mounted outboard remote control kit is compatible with Yamaha outboard motors (4 strokes). It's made from aluminum ADC2+ASA and an ABS shell handle that resists cracking. The plastic button ensures firm and reliable operation. The Yamaha boat throttle control box is more robust and withstands multiple push-pull maneuvers.
· Smooth Operation: Press the neutral release button to shift into gear. Push forward about 35° into forward gear, and push back about 35° into reverse gear. The front-end friction adjustment knob provides personalized control over throttle operation, allowing you to manage speed and thrust with precision. With the control lever in Neutral, push the free accelerator button to open the throttle for starting and warm-up.
· Trim and Tilt Switch: Enhance your boating experience with the power trim and tilt switch directly on the control lever handle. This design allows for easy adjustment of the stern engine's position, aiding in cargo loading/unloading and preventing prolonged engine immersion. Press "↑" to tilt the engine upward and "↓" to tilt the engine downward.
· Low-Temperature Operation: The outboard remote control is equipped with a low-temperature air-fuel ratio adjustment function, which can adjust the fuel and air mixture ratio in cold weather, helping to ensure that the vessel can operate reliably in extreme temperatures.
· 4.6 ft Control Cable: Our remote control box has a 4.6 ft/1440 mm long harness with a 5-pin plug, ensuring ample reach for remote power supply setups. During installation, turn off the ignition, remove the key, disconnect all cables and power, and measure the cable length.
