𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Two-in-One Hinge Slot Locator
This hinge slot locator is designed for quick positioning of both hinge slots and lock body guide plate installation. It provides flexibility to switch between usage modes, catering to various work needs. You can choose based on specific work scenarios, and there is no need for other devices.
· Aluminum Alloy Monolithic Construction
The main panel of our door hinge jig is made of aluminum alloy 6061. It features a stable overall structure, robust durability, and the ability to withstand substantial weight and pressure. It is designed for extended service life and can maintain stability in complex environments.
· Length and Width Positioning Adjustability
Our hinge jig kit features adjustable length and width positioning, supporting flexible adjustments in 4 directions for precise positioning. The built-in scales provide specific slotting positions, ensuring accurate hinge slotting and secure installation of hinge slots and lock body guide plates.
· Quick and Secure Clamping
This concealed hinge jig requires no additional tools for quick clamping. Manual tightening of screws allows for fast and efficient clamping. The quick clamping design eliminates the need for extra adjustment time. This results in an efficient, convenient, and comfortable experience.
· Precision Components
This cabinet hinge jig includes a comprehensive set of accessories. With all the necessary components, one set can easily handle hinge slotting tasks, providing a convenient drilling experience.
· Built-In Stainless Steel Threaded Insert
This hinge hole positioning tool features a built-in stainless steel threaded insert, effectively protecting the internal threads of the fixture. This enhances product durability while providing stable positioning support, preventing workpiece wobbling or misalignment during slotting.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: SXRJL-2303
Middle Pre-slotted Size: 7.2 x 1.81 inch / 183 x 46 mm
Side Pre-slotted Size: 1.97 x 0.79 inch / 50 x 20 mm
Limit Adjustment Space
Length Range: 5.51-10.04 inch / 140-255 mm
Width Range: 2.17-4.72 inch / 55-120 mm
Maximum Clamping Range: 2.36 inch / 60 mm
Main Materials: Aluminum Alloy (Body) + Steel
Product Weight: 3.64 lbs / 1.65 kg
Product Dimensions: 13.39 x 8.07 x 2.56 inch / 340 x 205 x 65 mm
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁

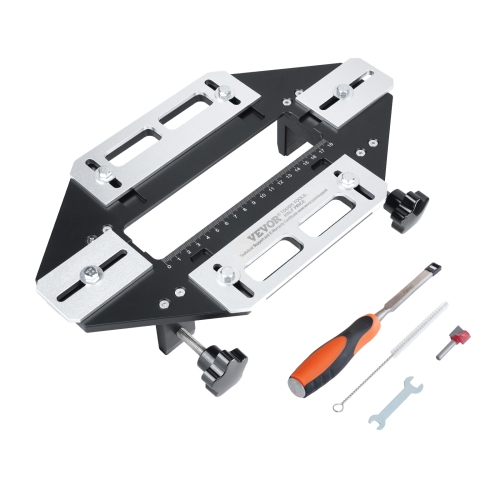

1 x Slotting Locator
1 x Side Cutter（Clamping Diameter: 0.25''/6.3 mm)
1 x Woodworking Chisel （0.47''/12mm)
1 x Open-end Wrench
1 x Hairbrush
1 x User Manual
· Two-in-One Functionality: This hinge jig is designed for both hinge groove and door lock fixture installation, catering to different usage needs. With a dual-purpose design, it allows you the freedom to choose based on specific requirements without the need for other devices. This brings a more efficient and convenient slotting and positioning experience.
· Sturdy and Durable: The entire door hinge jig is constructed using high-strength materials, with the main panel made of aluminum alloy 6061. It is wear-resistant, rust-resistant, and features a stable structure, ensuring excellent durability. It can withstand various environmental conditions, including harsh weather, high temperatures, and humidity. It is resistant to deformation or damage even with prolonged use.
· Precision Slotting: This tabletop hinge jig kit supports flexible adjustments in four directions, with adjustable length and width positioning for precise alignment. It has built-in scales to provide specific slotting positions, enabling accurate and rapid hinge slotting and lock plate installation.
· User-Friendly: The concealed hinge jig is simple and convenient to operate, requiring no tools. Tighten the screws manually for quick clamping. The clamping parts feature a rubber anti-slip design to prevent damage to wooden door surfaces. Just follow the instructions, and you can complete the installation in minutes.
· Complete Accessories: This cabinet hinge jig comes with a comprehensive set of accessories, including 1 x slotting locator, 1 x side cutter(clamping diameter: 0.25''/6.3 mm), 1 x woodworking chisel (0.47''/12mm), 1 x open-end wrench, 1 x hairbrush, and 1 x user manual. This all-in-one kit makes hinge slotting positioning a breeze.
