饾棧饾椏饾椉饾棻饾槀饾棸饾榿 饾棗饾棽饾榾饾棸饾椏饾椂饾椊饾榿饾椂饾椉饾椈
路 Robust Load-Bearing
Our long ram hydraulic jack effortlessly handles weights up to 3 tons, making them perfect for cranes in various fields, including professional machinery, maintenance, and home use. The hoist jack transforms your existing crane into a convenient, efficient, and safe lifting solution.
路 Effortless Lifting

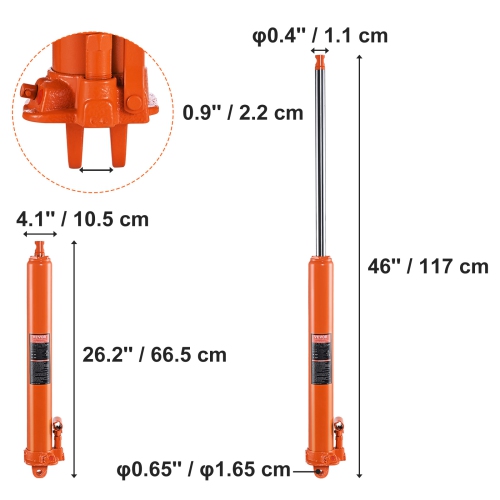

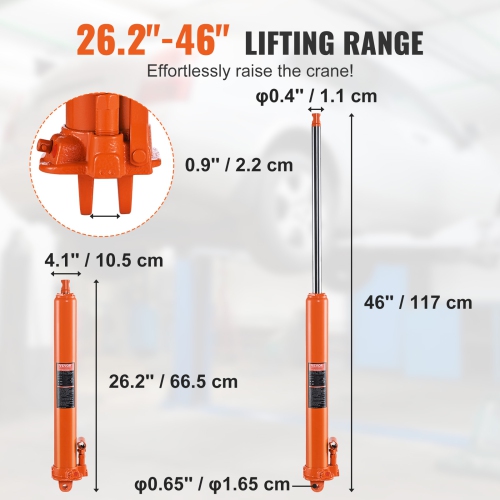

With a lifting range of 26.2" to 46" (665-1170 mm) and a lifting stroke of 19.9 inches (505 mm), our engine hoist jack allows you to handle large objects with ease and speed.
路 Rugged Construction

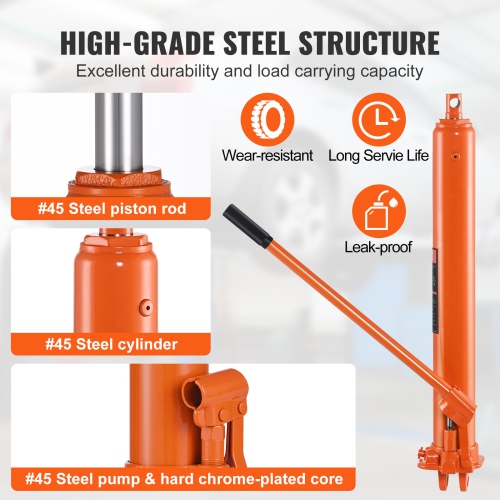

The 3-ton long ram jack is crafted from durable #45 steel and equipped with a hard chrome finish on the pump core. The large 28 mm hydraulic cylinder reduces the required oil pressure for load movement. The Y-ring plunger design ensures a stable and safe lifting process, preventing slow descents or oil drift.
路 User-Friendly Operation
Our hydraulic ram pump allows you to apply minimal muscle force for lifting heavy objects. The oil return valve should be gradually loosened when retracting the piston rod to prevent rapid descent.

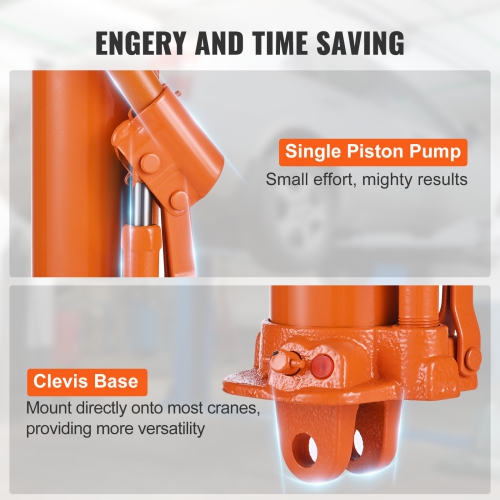

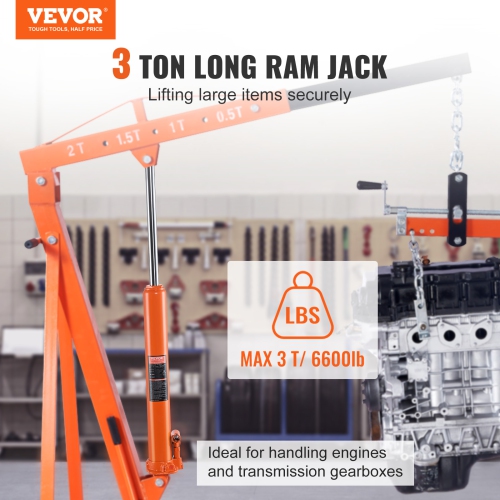

路 Versatile Crane Companion
This clevis base long ram hydraulic jack can be easily installed on most cranes, making it suitable for off-road backup, construction, industrial, mining equipment, and various lifting scenarios.

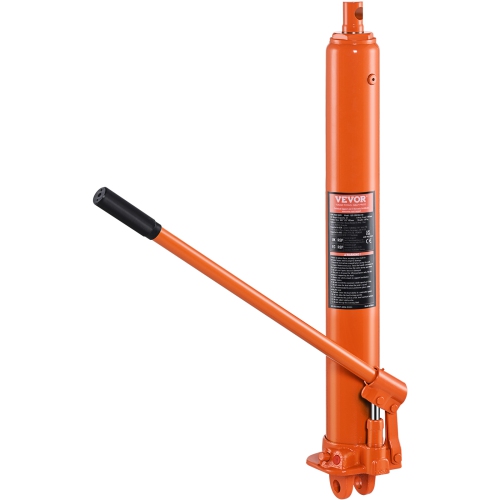

路 Comfortable Grip
The hydraulic long ram jack has a user-friendly handle featuring a rubber grip for added comfort during operation. The handle ensures easy and convenient handling of lifting tasks.

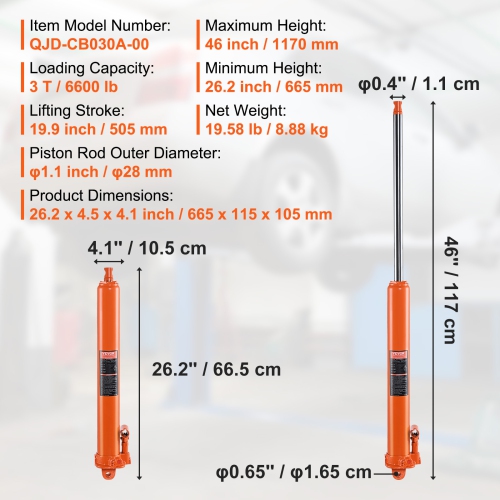

饾棪饾椊饾棽饾棸饾椂饾棾饾椂饾棸饾棶饾榿饾椂饾椉饾椈饾榾
Item Model Number: QJD-CB030A-00
Loading Capacity: 3 T / 6600 lb
Lifting Stroke: 19.9 inch / 505 mm
Maximum Height: 46 inch / 1170 mm
Minimum Height: 26.2 inch / 665 mm
Net Weight: 19.58 lb / 8.88 kg
Product Dimensions: 26.2 x 4.5 x 4.1 inch / 665 x 115 x 105 mm
Piston Rod Outer Diameter: 蠁1.1 inch / 蠁28 mm
饾棧饾棶饾棸饾椄饾棶饾棿饾棽 饾棖饾椉饾椈饾榿饾棽饾椈饾榿
1 x Hydraulic Long Ram Jack
1 x Handle
1 x Manual
路 3-Ton Load Capacity & Adjustable Height: With a robust 3-ton/6600 lb load capacity and an adjustable height range from 26.2" to 46" (665-1170 mm), this hydraulic long ram jack effortlessly lifts heavy loads. And its slow-release function allows you to control your lifting tasks safely.
路 Built to Last: Crafted from durable #45 steel with a hard chrome-plated surface, the engine hoist jack 's core components ensure wear resistance. The large-diameter hydraulic cylinder reduces oil pressure requirements, minimizing wear and extending the long ram jack's lifespan.
路 Effortless Lifting: The engine hoist cylinder is engineered for ease of use, requiring minimal physical effort even for heavy loads. The handlebar design enhances user convenience, and the comfortable rubber grip handle simplifies the lifting process.
路 Safety and Reliability: Our hydraulic ram cylinder has integrated oil bypass and overload valves, which protect against overloads. The hydraulic unit is corrosion-resistant and great for various temperature conditions, ensuring a hassle-free operation. The unique Y-shaped seal ring and plunger design ensure a stable and safe lifting process by preventing slow descents and oil bypass.
路 Versatile Applications: This engine hoist jack suits various applications in workshops, stores, and maintenance tasks. Its clevis base allows for direct mounting on various lifting equipment, making it a versatile and ideal solution for residential and commercial lifting needs.
