Wilson Electronics Indoor 50 Ohm Wide Band Fabric Panel Antenna

Wilson Electronics Indoor 50 Ohm Wide Band Fabric Panel Antenna

Model Number: 314440
Web Code: 14417611
Sold and shipped by | 4.6 seller rating (48 reviews)

Available online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.


Overview

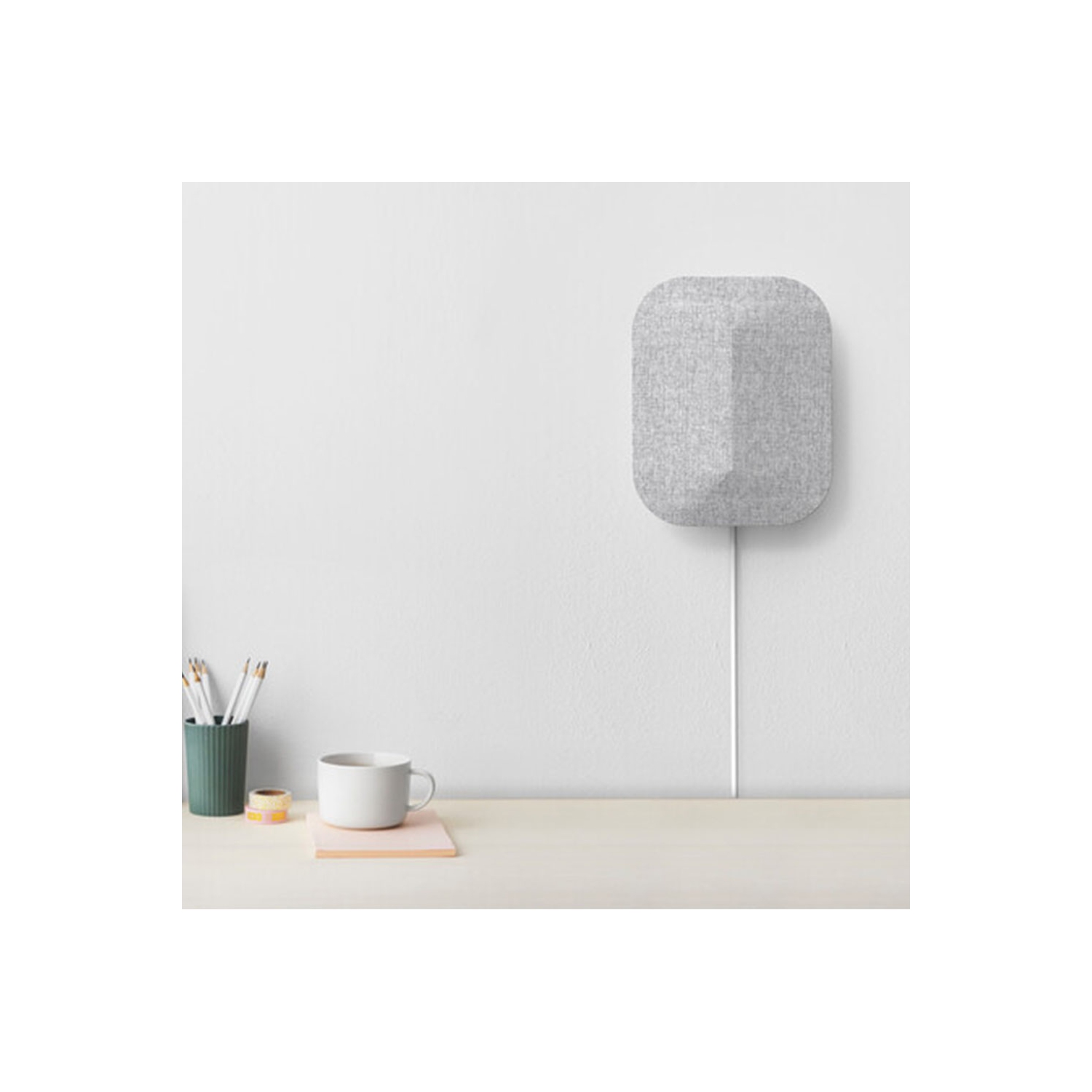

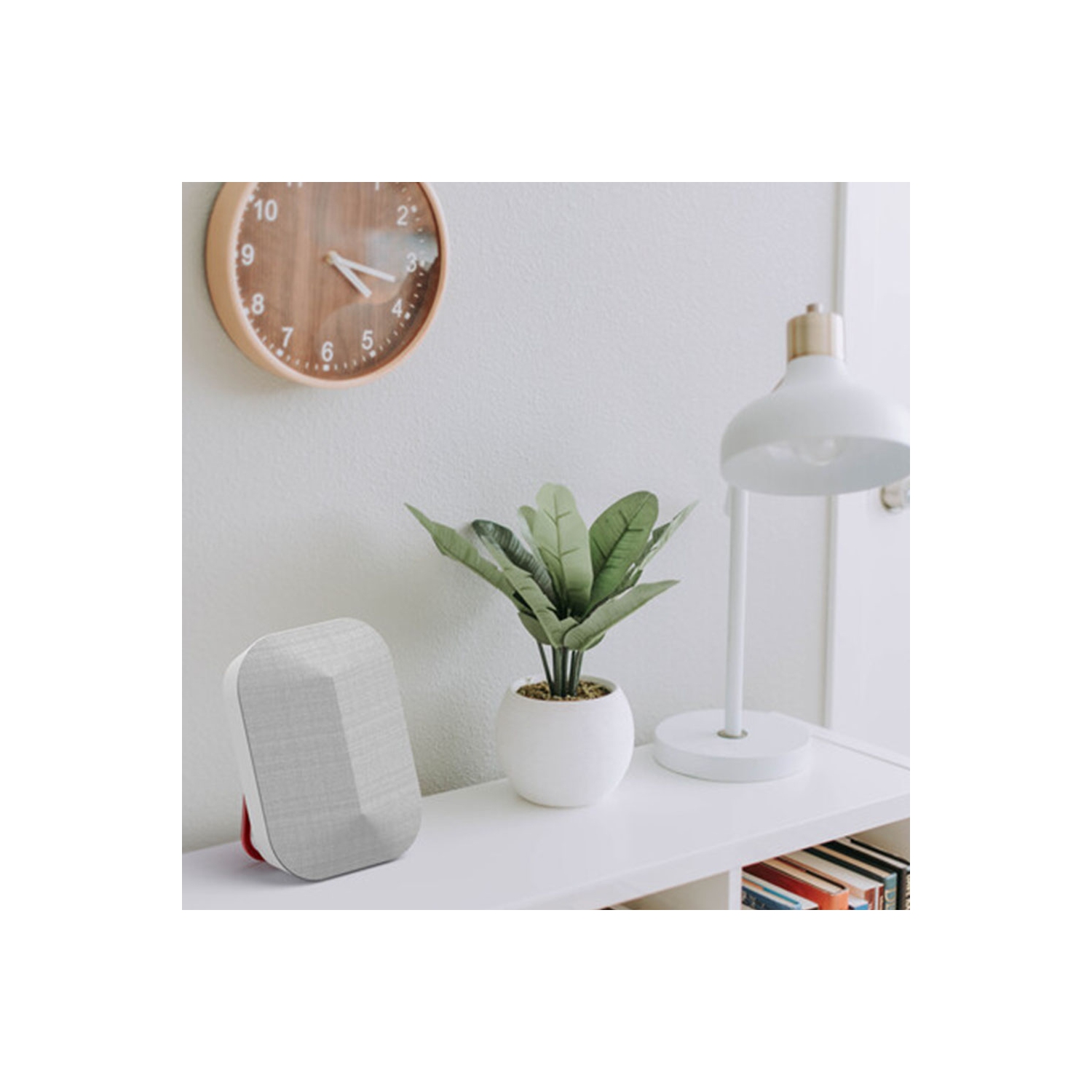

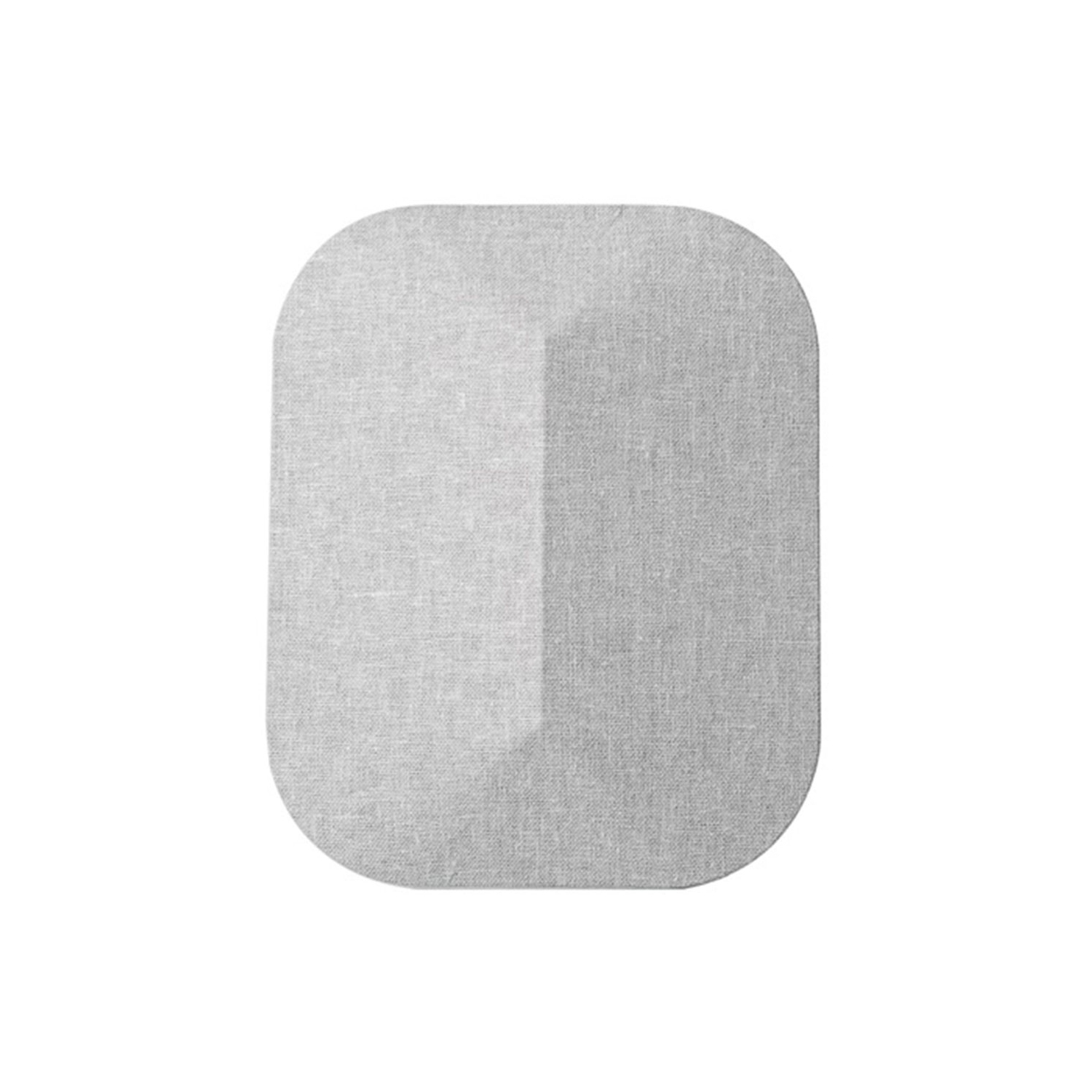

The weBoost Inside Panel Antenna is a 50 Ohm indoor, wall-mount antenna used to broadcast boosted 3G & 4G LTE signals from a Wilson weBoost signal booster. Most powerful wide-band coverage features up to +7.6 dB gain. Best for priority area coverage and corridors.
GeneralInterface-Warranty

Warranty

No information available.

Seller Return Policy

Read return policy

• Works on all worldwide cellular bands for voice and data: LTE/CDMA/GSM/UMTS/AWS

• High performance for cellular repeater-boosters

• High gain signal output

• Boosts 698-960 & 1710-2700 MHz cellular frequencies

• Designed for building interior installation

• High efficiency and compact design

• Boosts voice and data

• Up to +7.6 dB gain

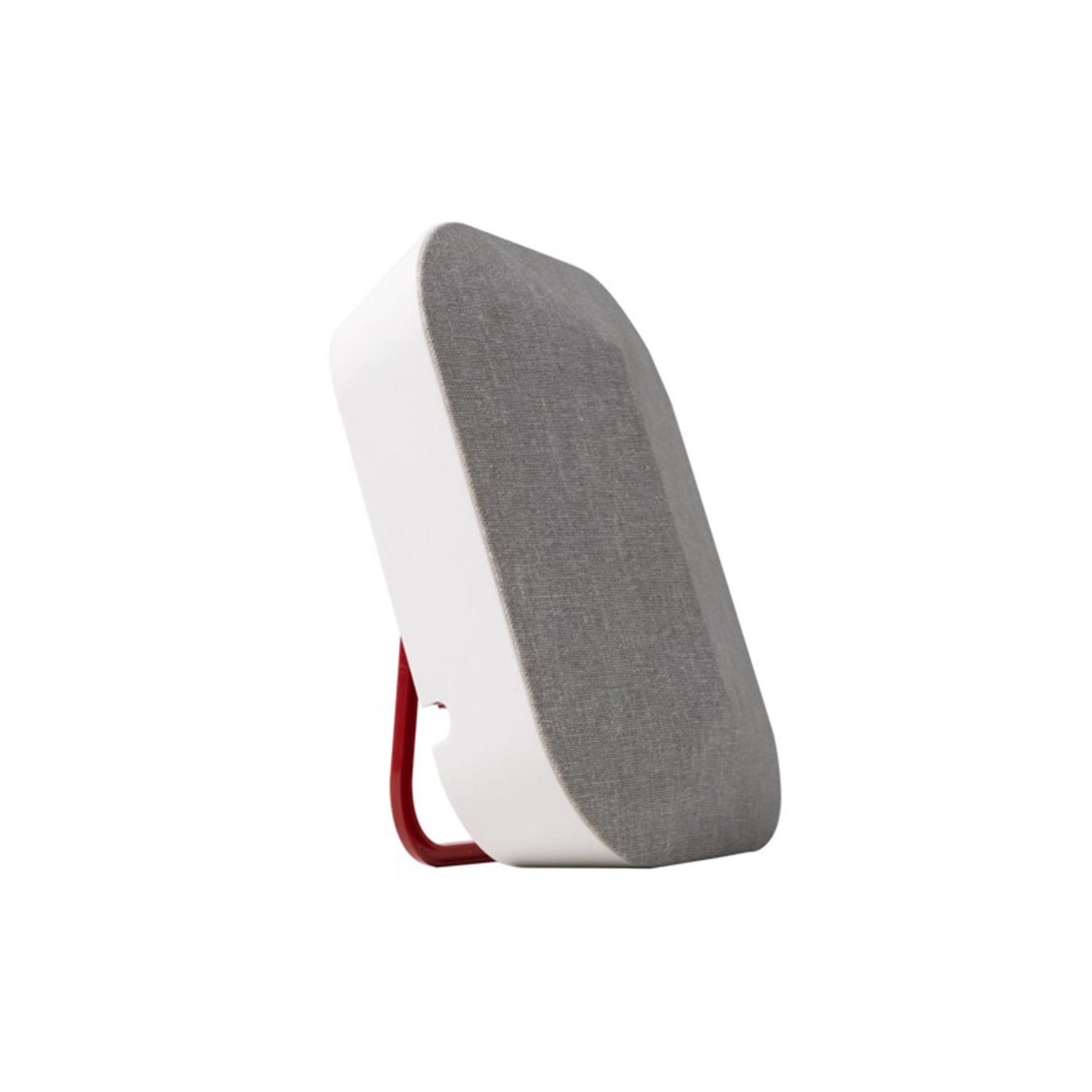

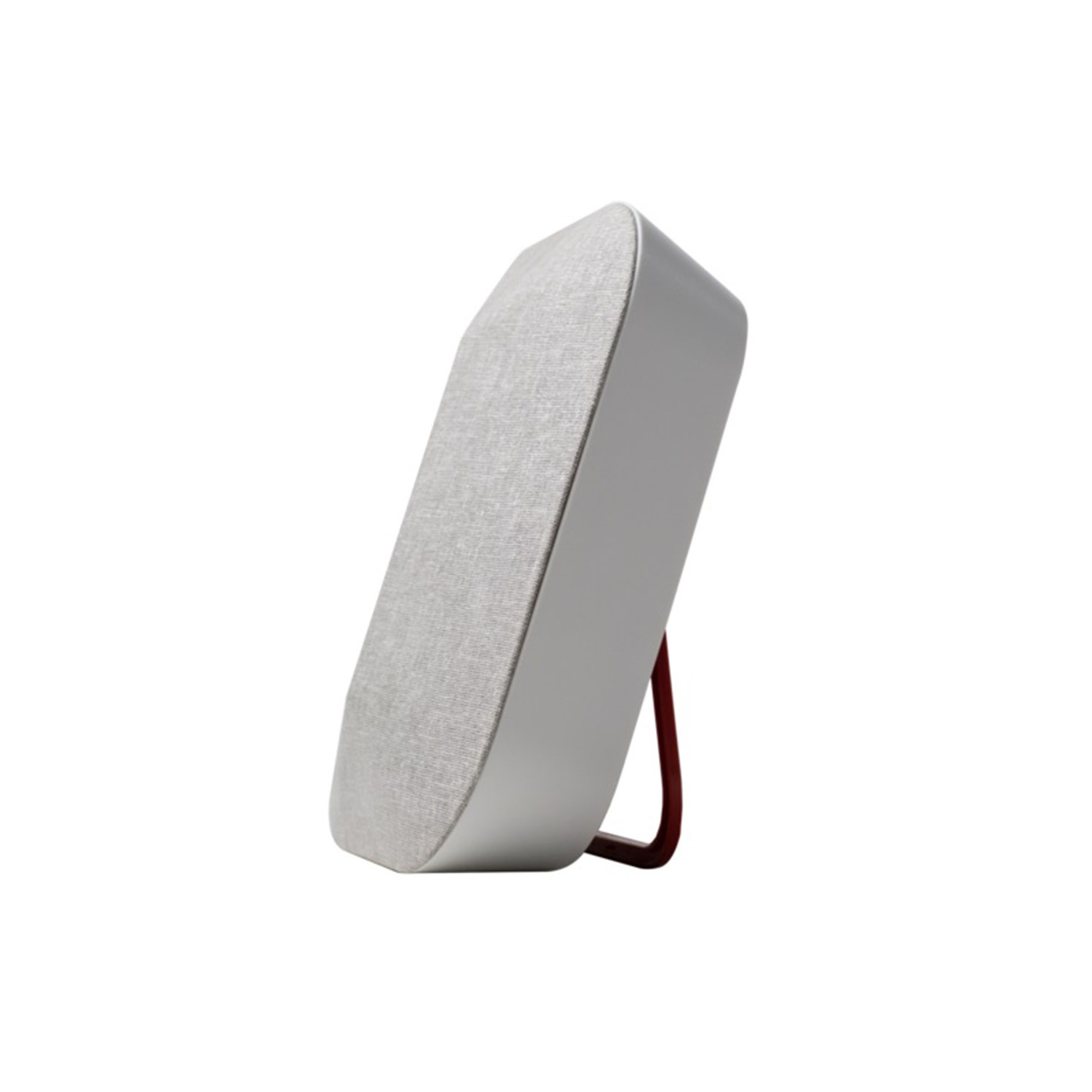

• Simple install kit with wall mount bracket and desk stand

Technical Specifications:

• Frequency Band (MHz): 698-806 -5.75 dBi peak gain; 806-960 - 6 dBi peak gain; 1710-1880 - 7.3 dBi peak gain; 1900-2200 - 7.33 dBi peak gain; 2200-2700 - 7.62 peak gain

• Polarization: Horizontal

• Impedance: 50 Ohm

• Maximum Power: 50W

• Connector: F-Female

• Radiator Material: PCB & Aluminum

• Radome Material: Plastic-ChiMei PC 385

• Cable Length: 6'

Box Contents:

• Wilson Electronics Indoor 50 Ohm Wide Band Fabric Panel Antenna

• Wall mount bracket

• Desk stand
