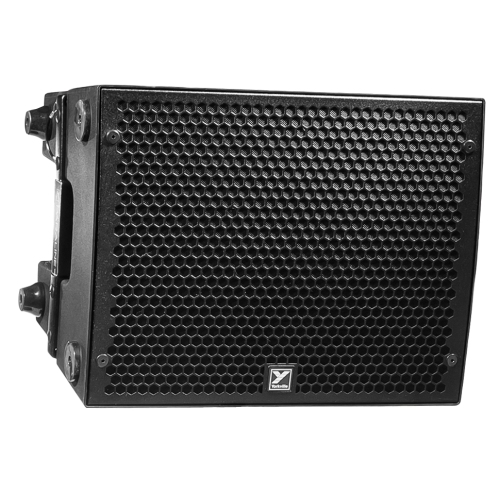

Yorkville Sound's Paraline PSA1 delivers the clarity and precision of a complex line array system in a compact, user friendly format. Innovative cabinet design uses Yorkville Sound's proven Paraline high frequency lens technology pioneered in their flagship VTC Elevation Series line-array cabinets.
Two BMS 1.75-inch compression drivers mounted to the patented Paraline lens delivers a focused 15-degree vertical dispersion and wide 110 degree horizontal coverage. Four high quality 18 Sound 6-inch cone drivers provide tight, accurate and ultra responsive projection from horn cutoff right down to where the subwoofers seamlessly take over.
Rugged injection molded ABS cabinet and Neodymium magnet woofers minimize overall cabinet weight making a full system transport and set-up something that can easily be handled by a single operator. Designed to deliver maximum performance with minimum complication, the PSA1s integrated power amplifiers and internal DSP mean no external processing is required. You can simply direct-connect to the mixer or program source, set the system levels, and the Paraline rig is ready for the show.

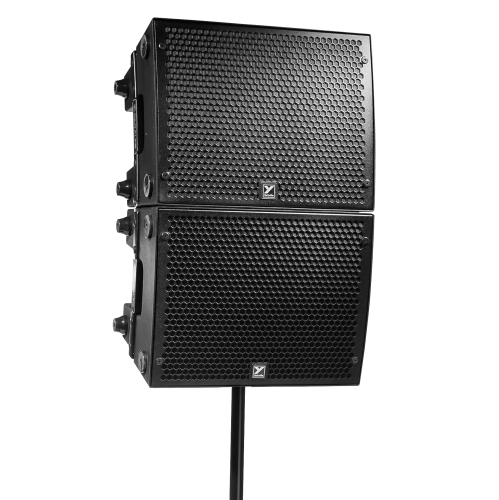

Ideal for mobile PA applications in venues where access to complex trussing or roof hangs isn't practical, the Yorkville PSA1 cabinet mounts quickly and securely on a typical speaker stand. Innovative dual position stand mount offers two potential cabinet angles for expanded setup options. Up to two PSA1 cabinets can be stacked safely and securely on a single traditional stand.
Highly efficient amplifier design means each PSA1 draws less than 3 amperes in typical operation meaning up to four cabinets can operate on standard 15 amp service. This allows efficient set up using the PSA1's AC loop thru connectors and a short AC cable such as their new A117PC3MF to minimize the need for multiple extension cables and house circuits often needed for an active PA setup.
Features
* Ultra High Performance Compact Active PA System
* Uses Patented Paraline Horn Lens Technology
(from Yorkville Sounds Flagship VTC Elevation Series Vertical Array Touring Systems)
* High quality Speaker Components
(including 18 Sound 6-inch Woofers and BMS Compression Drivers)
* Focused 15 Vertical Dispersion for Minimum Interference Between Arrayed Cabinets
* Wide 110 Horizontal Dispersion Pattern
* Manufactured Using Light-weight/Strong ABS Cabinet Material

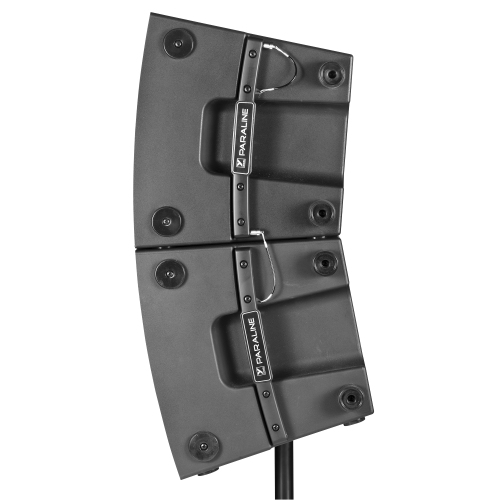

* Stacks using Standard Speaker Stand on Integrated Dual Angle Stand Mount Adaptor
(Maximum Two Cabinets per stand)
* Installation Hardware Available
* Up to Four PSA1 Cabinets Can Be Easily Powered on one 15 Amp Circuit
* Made in Canada
Specifications
Active or Passive -Active
Onboard Power (Cont. Pre-Clip Watts) - 625 LF, 75HF
Biamp - yes
Max SPL - 128dB Peak, 125dB Continuous
Frequency Response +/-3db - 75Hz-20K
Crossover Frequency - 1.2kHz
Driver Configuration - 2x1", 4x6"
HF Drivers - 2x1-inch Ceramic w/ 1.75-inch VoiceCoil
HF Program Power - 75 Watts (200 Watts Peak)
HF Dispersion (H x V) - 110x15
HF Protection - Peak and Average Limiting
LF Drivers - 4x6-inch neo with 45mm VC
LF Program Power - 675 Watts Program, 1000 Watts Peak
LF Impedance - 2 Ohms overall
LF Protection - Excursion, RMS
HF Power - 75 Watts
HF Amplifier Type - 2-Tier Class H
LF Power - 625 Watts Cont. Pre-Clip
LF Amplifier Type - Class D
Cooling Scheme - Convection
Power Cable - Removable Locking IEC Input and Loop Thru Output
Power Switch - Yes
Power Consumption (typ/max) - 135 VA / 225 VA
Inputs - 1 Combijack (XLR / 1/4-inch)
Input Sensitivity - Line in 1.4Vrms at center, 0.35 at max
Level Controls - Volume
EQ Controls - HF Boost switch, Fullrange/Sub switch
Limiter- Peak and Average limiting on horn and woofer
LED Indicators - Power, Limit, Clip
Enclosure Materials - Injection Molded ABS
Baffle Material- Injection Molded ABS
Finish - black Paint, Optional Colors available
Dimensions (DWH xbackW)- 14.5 x 20.5 x 16 inch
Dimensions (DWH xbackW) - 36.8 x 52.1 x 40.6 cm
Weight - 47 lbs / 21.4 kg
