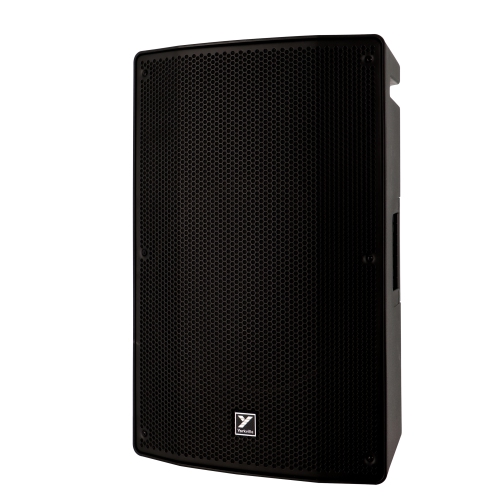

The YXL cabinets use a single driver and 90 x 60 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.
Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.
YXL15P Features
* 1000 watts (peak) 500 watts (program)
* Superior DSP processing with component protection
* 15-inch woofers with 2.5-inch voice coil
* 1-inch HF compression driver
* 90 x 40 HF dispersion Horn
* Dual purpose full-range and wedge monitor speaker
* Ultra-clear reproduction throughout the whole audio bandwidth
* Lightweight and high efficiency bi-amped power module
* Low distortion and high power-handling

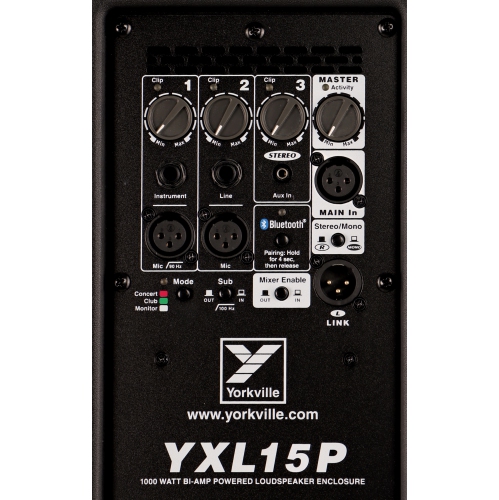

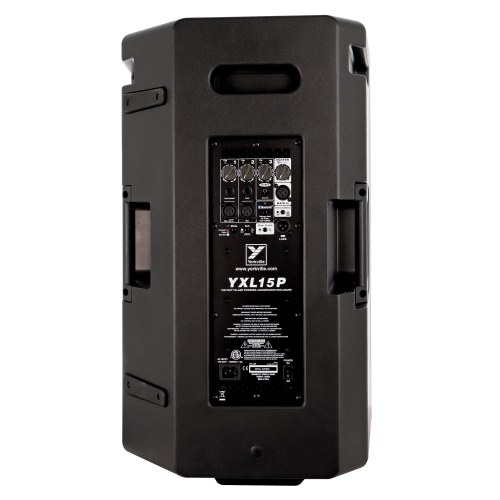

* Recessed control panel
* Master Level control with Activity indicator (cabinet level adjustment)
* 3 Performance modes, Concert, Club and Monitor
* Defeatable 3 channel mixer with level controls and Clip indicators
* Bluetooth input / streaming, not affected by Mixer Defeat
* 2 Microphone Inputs with level control and phantom power
* 1/4-inch TRS Instrument and Line Inputs
* 1/8-inch Aux Input for connecting mono or stereo audio sources
* An XLR Main In and Link output for easy connection and looping
* Selectable Sub filter (HPF) for connecting a subwoofer
* ABS / Polypropylene cabinet construction
* Tough, full length metal grille
YXL15P Specifications
* System Type - Active Loudspeaker
* Active or Passive - Active
* Power Rating (Watts) - 500 Watts Program (1000 Watts Peak)
* Max SPL (dB) - 127dB Continuous
* Frequency Response (Hz +/- 3dB) - 45 - 16k (Hz +/-3dB)
* Dispersion (H x V) - 90 x 40
* Crossover Frequency (Hz) - 1.6kHz
* HF Horn - Integrated into Baffle
* LF Driver(s) - 15-inch (2.5-inch voice coil)
* LF Power Rating (Watts) - 450 Watts Program (900 Watts Peak)
* HF Power Amplifier (Watts) - 50 Watts Program (100 Watts Peak)
* HF Amplifier Type - Class A/B
* LF Amplifier Type - Class D
* Cooling Scheme - Speed controlled fan
* Power Cable - Yes
* Power Switch - Yes
* Mixer Controls - 3 recessed dial controls
* Level Controls - x3 Chanels + Master
* EQ Controls - Push button select, Concert, Club, Monitor
* Limiter - Multiband excursion, RMS, rail
* Other Controls / Features - 100 Hz HP with Sub, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming
* Feet - Rubber
* Bar Handles - 2 x Side / 1 x Back
* Flying Hardware - 2 (Top), 1 (Pullback)
* Enclosure Materials - Polypropelene, Metal grille
* Baffle Material - Polypropylene
* Grille - Powder Coated Steel with Grille Cloth
* Other Details - Rubber feet on bottom and side with the monitor Wedge
* Dimensions (DWH xbackW, inches) - 21 x 18.5 x 32
* Dimensions (DWH xbackW, cm) - 52 x 47 x 79
* Weight (lbs/kg) - 45 / 20.4
