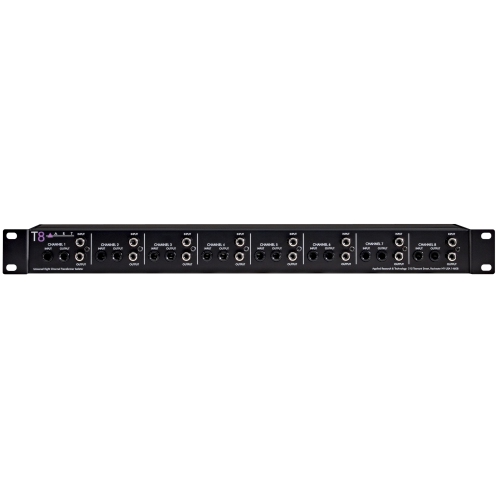

ART Pro Audio T8 Eight Channel Hum Eliminator

The T8 (Transformer Eight) is a high quality totally passive audio interface that uses 8 transformers to separate input and output signal grounds, thereby isolating two systems and reducing hum and ground-loop noise. The T8's audio transformers have flat and wide frequency response and handle high signal levels while maintaining an isolated balanced output. This gives the T8 a very clean and neutral sound with a wide variety of signal sources. The transformers are wound for 1:1 unity gain and are designed to be used with impedances from 600 ohms to 100k ohms.

Connection versatility sets the T8 apart from other isolation boxes. The T8 provides balanced XLR, 1/4" phone, and RCA type phono connections on all inputs and outputs simultaneously. The T8 fits easily into virtually any audio system and is a clean patch point between all types of systems.

Features

* High-quality, passive audio interface

* 8 high performance transformers

* XLR, 1/4" phone, and RCA type phono connections on all inputs and outputs.

* Reversible rack mount ears

* Separate input and output signal grounds reduce hum

* Audio transformers have an extremely flat and wide frequency response

* Very clean and neutral sound with a wide variety of signal sources

* Can be used for signal taps or as a signal splitter

* Use as a safer connection between two audio systems (ie: Computer workstation or monitor system)

* 19" 1U black all steel case

Specs

Frequency Response: 10Hz -50kHz, +/-.5dB @ +4dBu

Phase Shift: Phase Error: Less than 5 degrees, 20Hz 20kHz

CMRR: 60dB typical

Power Requirement: Completely Passive

Dimensions: 1.75"H x 19"W x 3.75"D

Weight: 3.75 lbs
