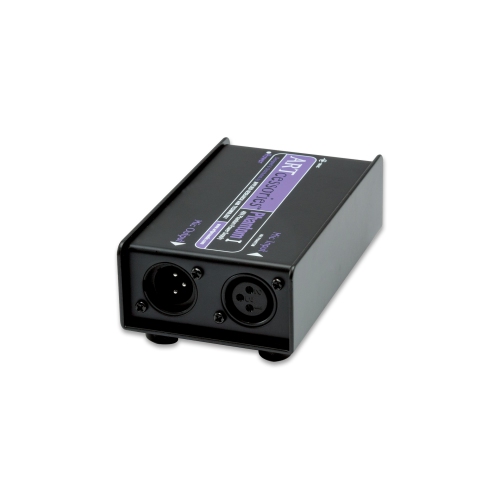

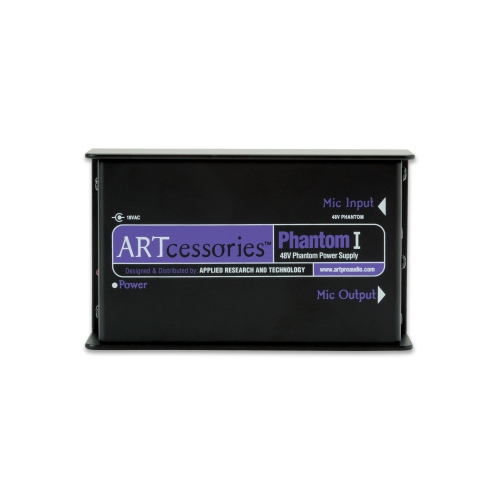

ART Pro Audio 48-Volt Phantom Power Supply

Different condenser microphones specify different amounts of required phantom power. As a rule these ratings can range from 48 volts all the way down to 9 volts. Fortunately, there is some flexibility in terms of matching phantom voltage to your mic. A rough rule of thumb would be "more is better."

For example, a 24-volt condenser mic will run perfectly on 48 volts. In fact, mics rated at as little as 9 volts can often operate on 48 volts, but you should check with the manufacturer first. Conversely, a mic will generally perform best driven by not less than its rated voltage so, for a 48V mic, you would obtain best results with 48 volts of phantom power. The Phantom I is a great choice for the above needs.

SPECIFICATIONS:

* Input Connectors: XLR female

* Output Connectors: XLR male

* Frequency Response: 10Hz - 25kHz

* Output Phantom Power: 48V DC +/- 2V

* Output Noise: -115 dBV

* Current Drain: 14mA

* Power: 18V DC (Adapter included)

* Dimensions: 5.25x2.75x1.75 inches (130mm x 74mm x 45mm)

* Weight: 1.3 lbs (315g)
