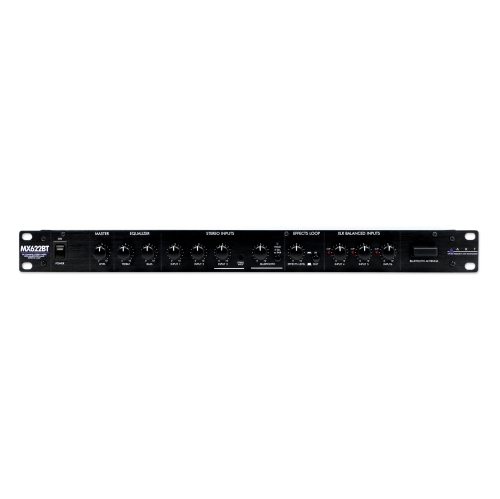

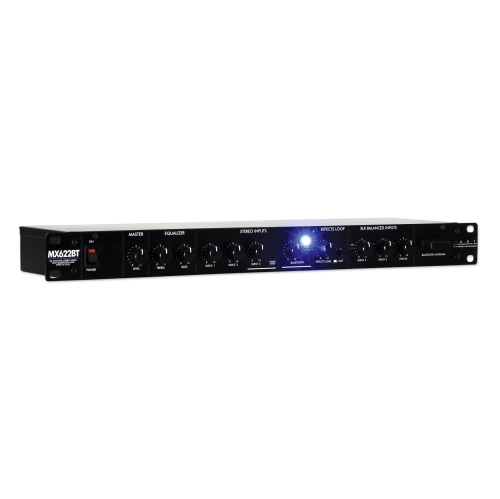

ART Pro Audio MX622BT 6-Channel Stereo Mixer with EQ & Bluetooth

The MX622BT is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Essential features include bluetooth streaming, external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation.

Features

* Three balanced XLR inputs switchable Mic/Line level

* Three stereo RCA inputs with separate level controls

* Bluetooth streaming enabled

* Level control and clip indicators

* Selectable 15-volt Phantom Power for mic channels

* Balanced TRS 1/4-inch main output jacks with master level control

* Versatile two-band Master EQ

* Separate stereo record outputs

* Effects loop with independent level control

Specifications

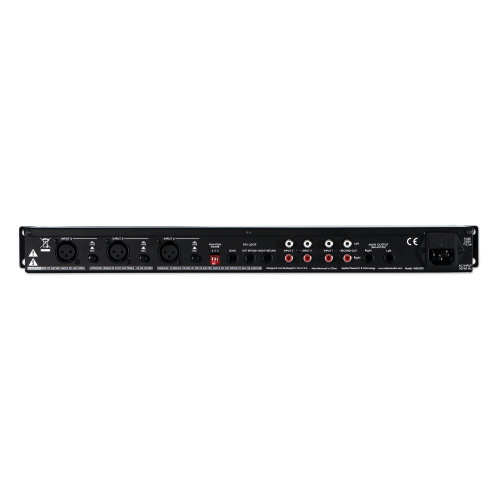

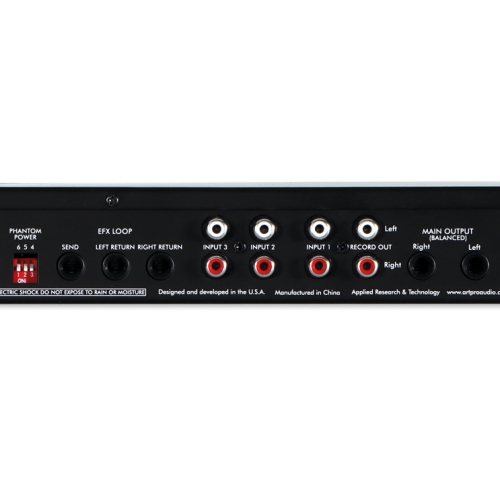

Input Connections: XLR-F balanced (x3) / 1/4-inch unbalanced (x2) / 3 pairs stereo RCA (6 total)

Output Connections: TRS balanced 1/4-inch (x2) / 1/4-inch unbalanced (x1) / RCA (x2)

Input Impedance: 600/22K Ohms mic/line XLR inputs / 10K Ohms RCA inputs / 22K Ohms 1/4-inch effects returns

Output Impedance: 50 Ohms 1/4-inch main outputs / 1K Ohms RCA record outputs / 100 Ohms effects output

Maximum Input Level: -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs

Maximum Output Level: +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output

Phantom Power: +15 Volts DC (regulated / low noise)

Maximum Gain: 56dB/26dB mic/line / 26dB RCA inputs

Signal to Noise Ratio: > 90dB typical

THD: .01% Typical

Equalizer Range: +/-12dB @ 100Hz & 10kHz

Power Requirements: USA - 105 to 125 VAC / 50-60Hz, 15 Watts typical

Dimensions (H x W x D): 1.75" x 19" x 6.0" (44.5mm x 483mm x 152mm)

Weight: 6.2 lbs (2.8 kg)
