axGear HDMI to SDI Converter 3G HDMI to SDI Adapter 1080P HD

Model Number: HDMI-SDI
Web Code: 12315521

product image

Overview

Supports HDMI Input and SDI outputConverts HDMI signal to SDIShows HDMI source on SDI displaySDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/sSupports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60
SAVE $33$42.99
SALE ends:

Available online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Overview

Supports HDMI Input and SDI outputConverts HDMI signal to SDIShows HDMI source on SDI displaySDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/sSupports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60

HDMI 1080P to SDI Converter

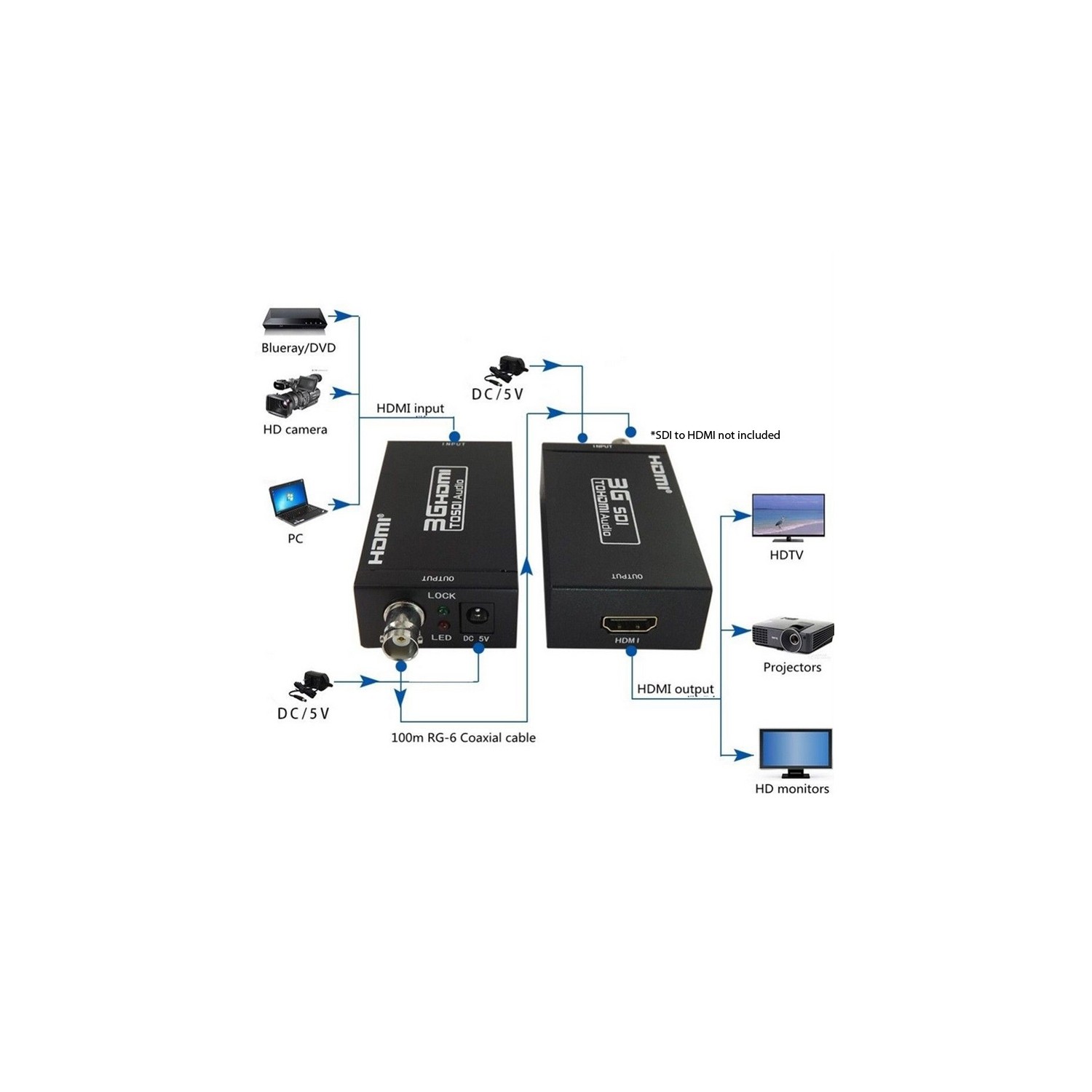

The HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.

Shows HDMI source on SDI display.

SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.

Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.

Converts HDMI signal to SDI

480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)

720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)

1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Specifications:

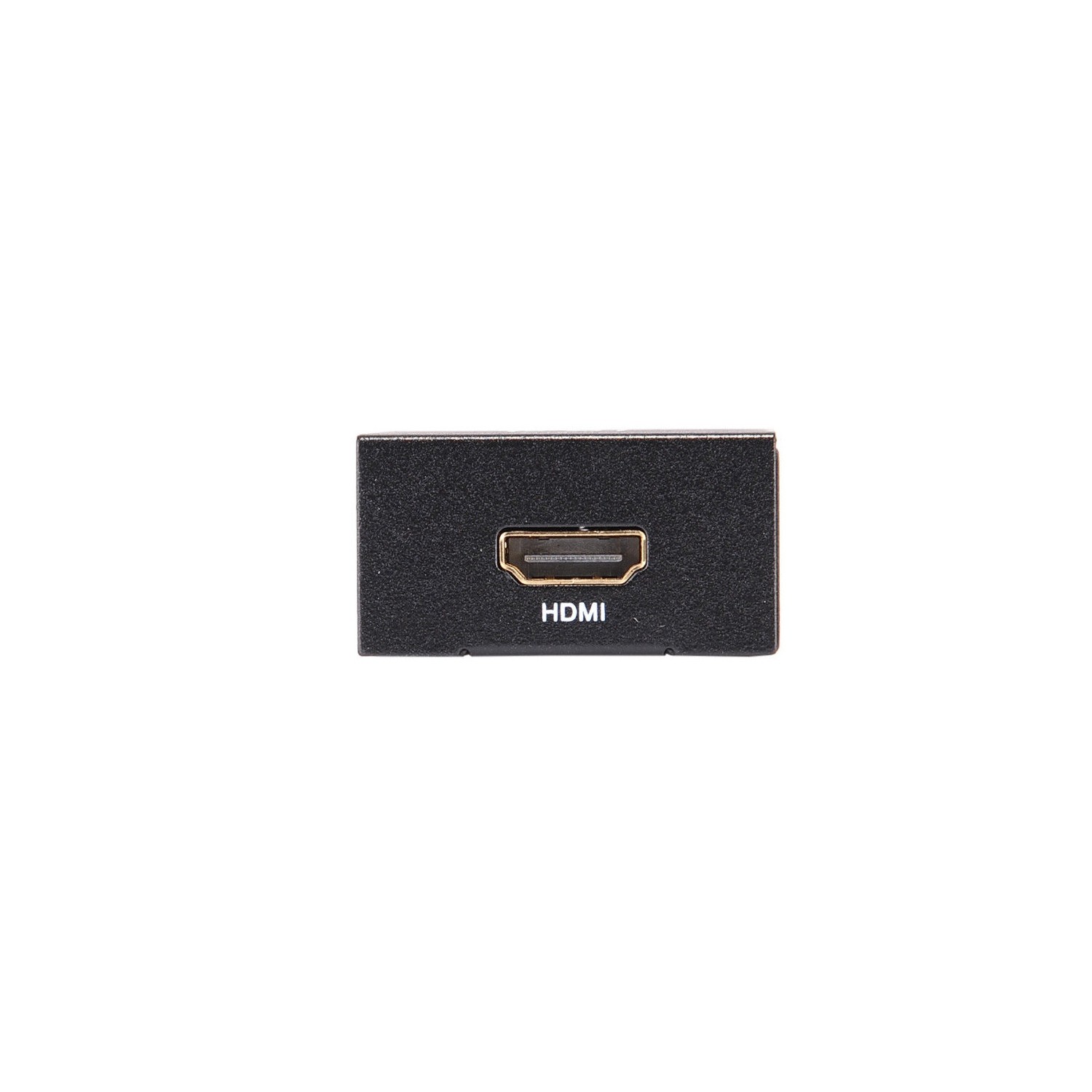

Input Port: 1 x HDMI

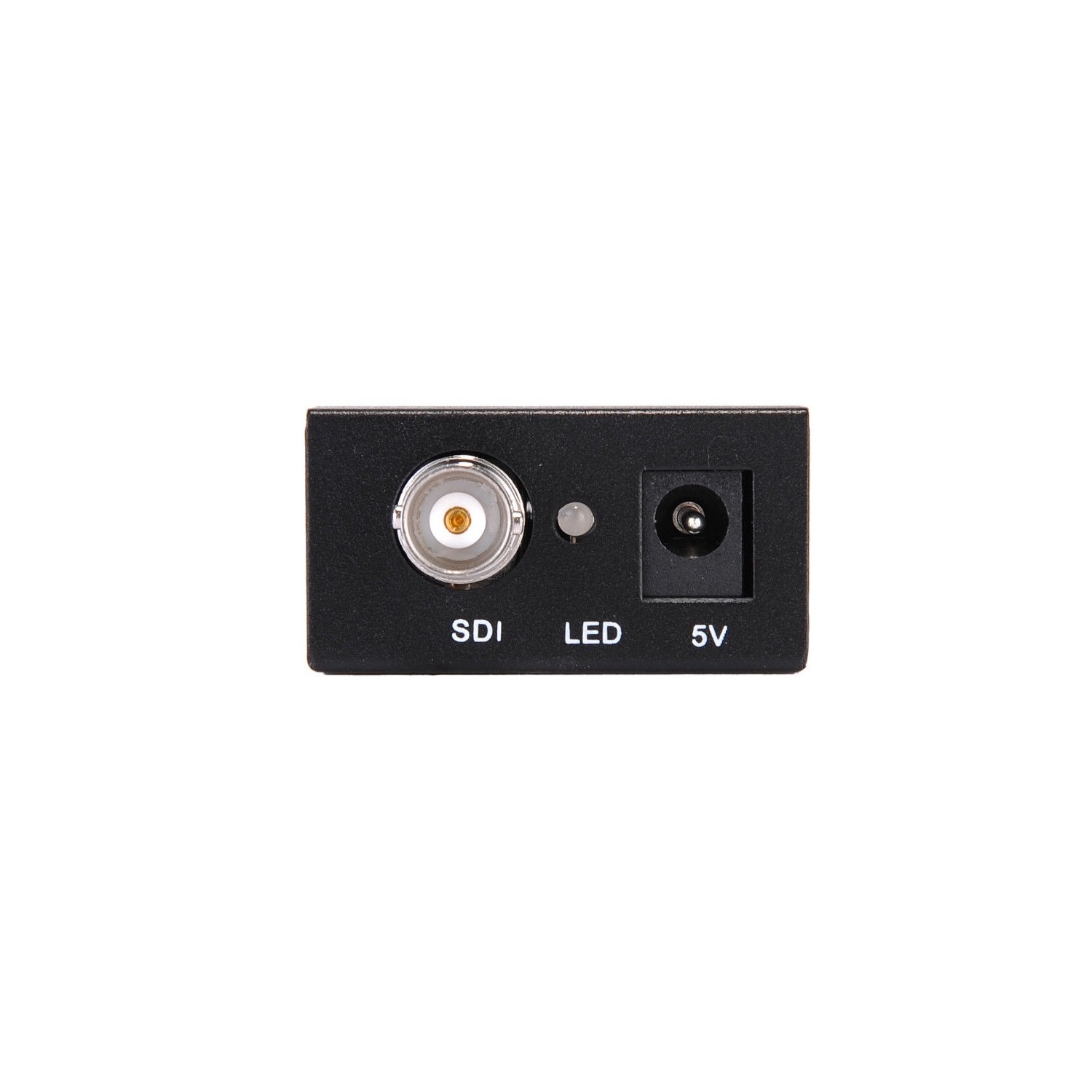

Output Port: 1 x BNC (SDI/HD-SDI/3G-SDI)

SDI Transmission Rate: 2.970 Gbit/s and 2.970/1.001 Gbit/s

Power Supply: DC 5V -12V

ESD Protection Human body model: ±8kV (air-gap discharge) ,±4kV (contact discharge)

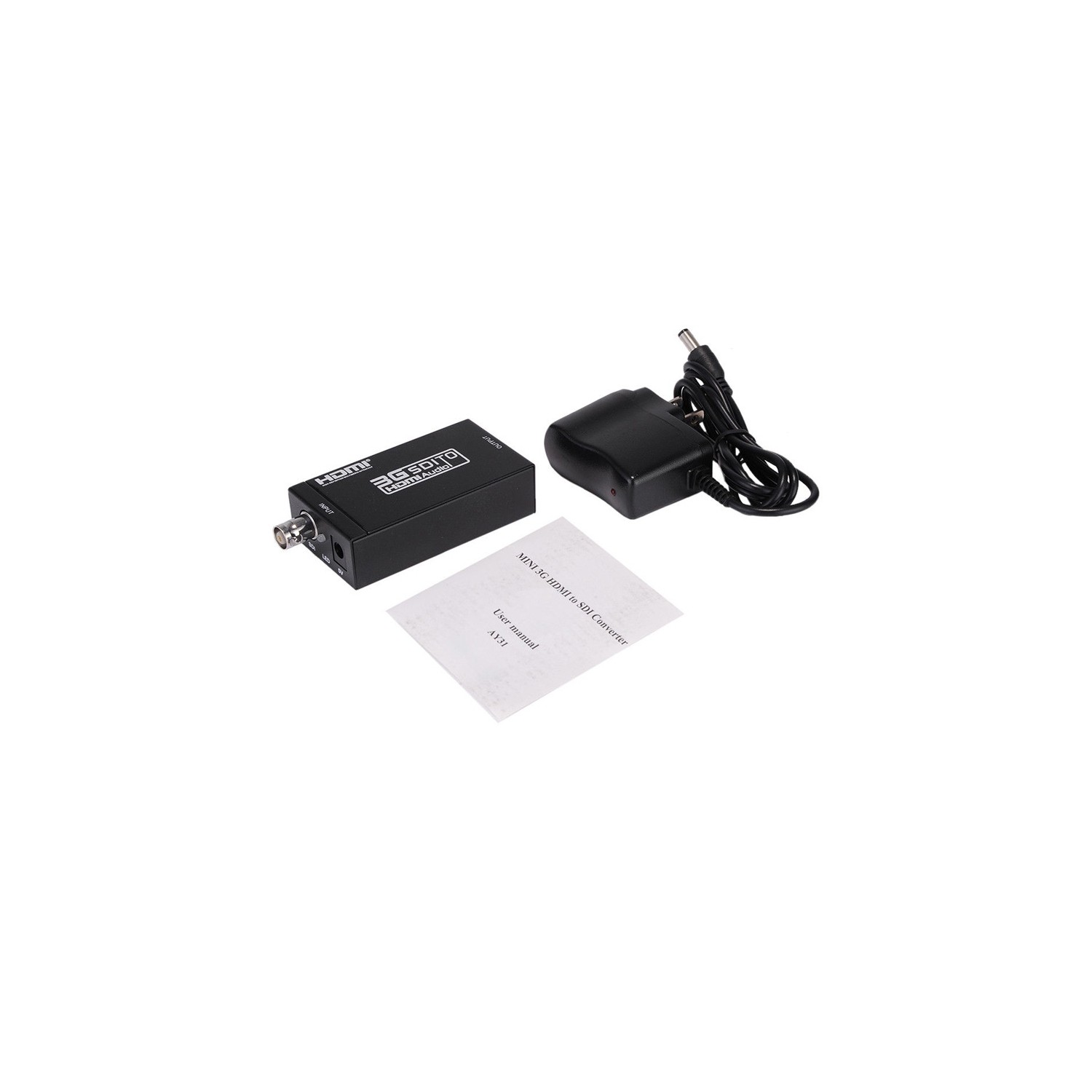

Power Consumption (Max):5W Package Included:

1 x HDMI to SDI Converter

1 x 5V1A DC Power Adaptor



Connectivity

End Type #1
HDMI
End Type #2
Other
End Type #3
Not Applicable

Features

Maximum Resolution
1080p HD

Warranty

Seller's Warranty - Parts
60 Days
Seller's Warranty - Labour
60 Days
