Not Just a Phase
A mainstay for many musicians since the 1970s, you can hear phasers in countless pop, rock, funk, new wave and alternative tracks over the years. Whether it's dreamy Gilmour-esque soundscapes or super-trippy ring-modulator tones, the Behringer DUAL-PHASE provides possibilities that are simply out of this world.
Recreation Done Right

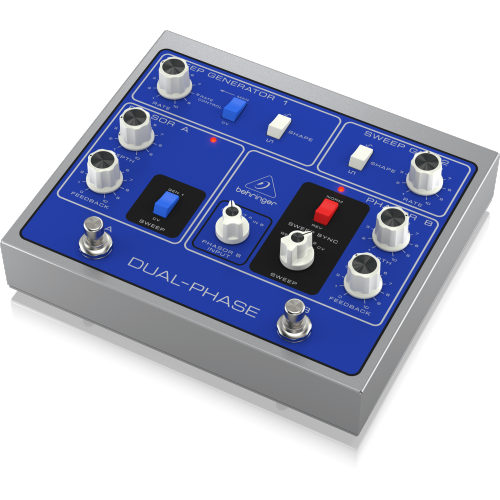

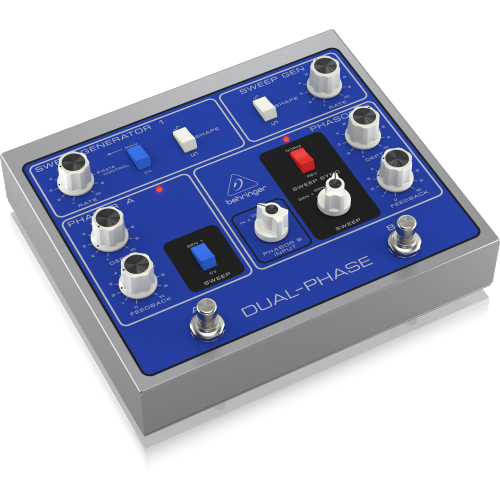

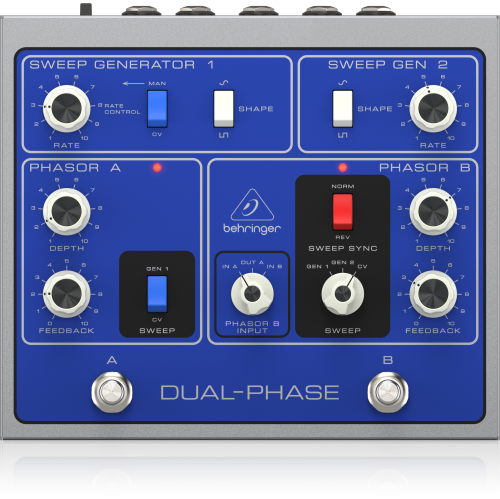

The DUAL-PHASE is an authentic recreation of the popular phase shifter from the '70s. It features 2 phase shifters, each with their own RATE, DEPTH and FEEDBACK controls, that you can then run in series or parallel. Each phase shifter also allows you to switch the wave shape oscillator between sine and square wave. The DUAL-PHASE brings all the amazing features from the original '70s design, plus a few modern ones, that are sure to enhance your pedal board or synth setup.
Han(ds-free) Solo
What sets the DUAL-PHASE apart from the original is its integrated dual footswitches that you can use to engage or disengage either Phasor A or B - at just the push of a button. Are your hands too busy playing? You can connect an expression pedal or any control voltage source to manipulate the sweep speed of any of the two phasors on the fly as you're deep into your killer solo.
Power and Strength
Running on standard 9-12 volt DC power, the DUAL-PHASE integrates into your setup effortlessly. Also, always stay gig-ready as a rugged and reliable metal construction supplies the DUAL-PHASE with the strength needed to stand up to the rigours of the road - and the heaviest of stomps.
Unlocked Potential
If you're looking for that perfect phaser or just want something new to add to your sound, then the Behringer DUAL-PHASE is the essential tool to unleash your creative beast.
Features* Classic dual phase shifter for keyboards, guitar, drum machines and other sound sources
* Authentic recreation of the popular phase shifter from the '70s
* 12 opto-couplers for deep and natural phasing effects
* 2 independent phasors with Depth and Feedback controls
* 2 independent sweep generators with Rate and Shape controls
* Input selector combines both phasors for creative sound effects
* Sweep and Sync controls allow for a wide selection of modulation sources
* CV input for easy remote control with external devices
* Dual footswitch with true-bypass function for ultimate signal integrity
* Rugged and reliable metal construction
* Runs on Behringer PSU-SB DC power supply (not included)

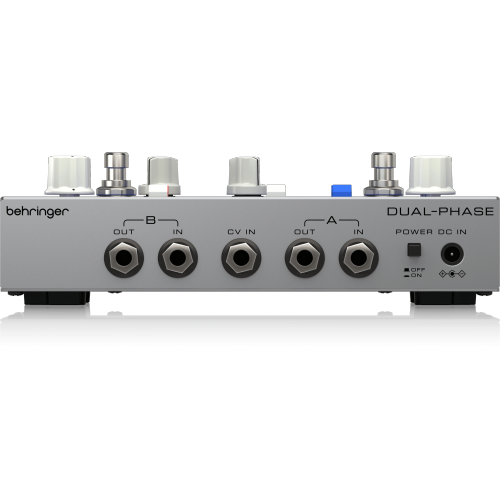

SpecificationsSignal Connections
- Input A / B: 2 x 1/4" TS jacks, unbalanced, Impedance: 30 kΩ , unbalanced, Maximum input level: +20 dBu
- Output A / B: 2 x 1/4" TS jacks, unbalanced, Impedance: 470 Ω, unbalanced, Maximum output level: +19.5 dBu
- CV IN: 1 x 1/4" TRS jack, 1 V/oct, CV input range: 0 V to +5 V
Power Supply
- Power supply: External adapter
- Power input: Standard 9 12 V DC, center negative, 700 mA
- Power consumption: 6 W
Dimensions / Weight
- Dimensions: 62.9 x 200 x 174.6 mm (2.48 x 7.87 x 6.87")
- Weight: 1.2 kg (2.7 lbs)
