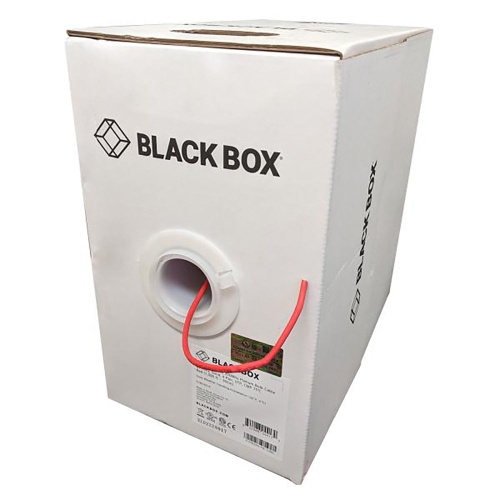

The Black Box Cat5e network cable is designed to meet the most demanding network cabling needs. With a generous length of 1000 feet, it offers great flexibility for diverse applications. This CMP (Plenum) certified cable is capable of transmitting data at speeds up to 1000 Mbps thanks to its solid 24 AWG wire and 4 UTP pairs.
It is ideal for a variety of applications, including voice, 10BASE-T, Token Ring 4-/16-Mbps, 100BASE-TX, 100 Mbps TP-PMD, T1, 155 Mbps ATM, and 622 Mbps ATM. Its low attenuation and exceptional crosstalk characteristics ensure high-quality data transmission.
With a longitudinal tear cord for easy installation and an Accu-Pull measurement system to ease the installation process, this cable offers added convenience. It is TAA compliant, GSA certified, and its component level is ETL verified, making it a reliable choice for demanding projects.
Characteristics:
·Cable: 24 AWG solid, 4 pairs, CAT5e UTP, CMP type certified (cUL)
·Tested and characterized at 350 MHz
·CAT5e compliance means reliable compatibility for future applications
·Best for Voice, 10BASE-T, Token Ring 4-/16-Mbps, 100BASE-TX, 100 Mbps TP-PMD, T1, 155 Mbps ATM, 622 Mbps ATM
·Low attenuation and power sum crosstalk characteristics over an extended frequency range
·Longitudinal tear cord for easy opening of the sheath
·Accu-Pull measuring system
·Two descending sequences -foot markings on the cable
·TAA Compliant, GSA Certified, ETL Component Level Verified
Specifications:
·ACR (minimum at 100 m): 16.3 dB at 100 MHz; 1.4 dB at 200 MHz
·Attenuation (minimum at 100 m): 22.0 dB at 100 MHz; 32.4 dB at 200 MHz; 41.0 dB at 300 MHz; 44.9 dB at 350 MHz
·Cable type: 4 pairs UTP
·Capacitance unbalance (maximum): 3300 pF/km (pair to ground)
·Characteristic impedance: 1-350 MHz: 100 ± 15 ohms
·Conductor: 24 AWG, solid, bare copper
·Conductor resistance: 93.8 ohms/68° F (20° C) maximum
·Delay Skew (Maximum): 1-350 MHz: 40 nS/100 m
·EL-FEXT (Minimum at 100 m): 23.8 dB at 100 MHz; 17.7 dB at 200 MHz; 14.2 dB at 300 MHz; 12.9 dB at 350 MHz
·NEXT (minimum at 100 m): 38.3 dB at 100 MHz; 33.8 dB at 200 MHz; 31.2 dB at 300 MHz; 30.1 dB at 350 MHz
·PS-ACR: 14.3 dB at 100 MHz
·PS-ELFEXT: 20.8 dB at 100 MHz; 14.7 dB at 200 MHz; 11.2 dB at 300 MHz; 9.9 dB at 350 MHz
·PS-NEXT: 36.3 dB at 100 MHz; 31.8 dB at 200 MHz; 29.2 dB at 300 MHz; 28.1 dB at 350 MHz
·Return loss: 20.1 dB at 100 MHz
·Propagation speed: 62.1% at 350 MHz
