ADVANCED TONE TOOLS FOR SERIOUS ACOUSTIC PLAYERS
Anyone who plays an amplified acoustic guitar on stage knows what a challenge it is to get a sound that's as inspiring as playing the instrument acoustically. The AD-10 is your solution to this age-old problem, offering advanced sound tools that enable you to achieve rich, natural acoustic tones every time you perform. At its core, the AD-10 is a fully featured, dual-channel acoustic preamp/DI pedal with premium audio quality, deep sound-shaping options, and flexible connectivity. On top of that, ambience, chorus, and delay effects are built in, eliminating the need to carry external sound processing.
But the AD-10 takes acoustic preamp design to an all-new level with its standout feature - BOSS's groundbreaking Acoustic Resonance processing. This advanced tech restores the complex body and string resonances that are lost with most pickup systems, bringing back the expressive, organic vibe that's so vital to the acoustic experience. And the features keep on coming, with transparent anti-feedback controls, memories for sound setups, an 80-second looper, USB audio, and much more. Hugely powerful yet simple to use, the compact AD-10 is your all-in-one companion for realizing impressive acoustic tones in every performing environment.
Preserve Your Sound with Multi-Level Feedback Protection
Because of their highly resonant construction, acoustic guitars are prone to problems with low-frequency feedback in stage situations. There are many variables that factor into the severity of feedback issues, including the instrument type, the pickup system, the location of the instrument relative to the speakers, and more. The advanced processing engine in the AD-10 goes well beyond the capabilities other preamps, providing multiple levels of feedback protection that are engineered to produce maximum results with little-to-no tone colouration.
Onboard BOSS Effects, Optimized for Acoustic Guitar
Alongside its powerful abilities to shape and maintain your core acoustic tone, the AD-10 includes a wide-range of built-in effects that sound great and are easy to use. The single-knob compressor delivers much more than meets the eye, employing BOSSs acclaimed MDP tech to transparently control your dynamics with intelligent processing. Acoustic guitars love reverb, and the AD-10's Ambience effect offers three types of high-quality reverberation specially tuned for guitar. There's also a delay with standard, mod, and reverse types, plus three different variations of BOSS's famous sound-widening stereo chorus effect.
Features:
* Professional preamp/DI for performing and recording with acoustic-electric guitar
* Acoustic Resonance restores the warm and rich resonance lost with most pickup systems
* Four-band EQ and variable low-cut filter tuned to deliver optimized tone shaping for acoustic guitar
* Multi-band compressor with MDP technology provides transparent dynamics control
* Newly developed anti-feedback functions control feedback while maintaining balanced tone
* Two channels with independent EQ for connecting two instruments or blending multiple pickup sources
* Onboard ambience, delay, and chorus effects with multiple sound types and adjustable parameters
* Boost function with adjustable tone setting
* Memory function for storing 10 sound setups
* Onboard looper with 80 seconds of recording time
* XLR and 1/4-inch connectivity for interfacing with PA systems, stage monitors, amps, and external effects
* USB audio interface functionality for computer recording and playback
* Fast and accurate built-in tuner
* Compact and portable design; runs on AC adapter or six AA-size batteries
Specifications:
Nominal Input Level
GUITAR IN 1,2: -10 dBu (Adjustable)
RETURN: -10 dBu
Input Impedance
GUITAR IN 1,2: 10 M ohms
RETURN: 220 k ohms
Nominal Output Level
SEND: -10 dBu
LINE OUT L/PHONES, R/MONO: -10 dBu
XLR OUT L, R: -10 dBu
Output Impedance
SEND: 1 k ohm
LINE OUT L/PHONES, R/MONO: 44 ohm
XLR OUT L, R: 600 ohms
Mode: Manual, Memory
Number of Memory: 10
Effects
* ACOUSTIC RESONANCE (3 Type)
* COMP (2 Type)
* 4 BAND EQ, LOW CUT
* BOOST
* CHORUS (3 Type)
* DELAY (3 Type)
* REVERB (3 Type)
* ANTI-FEEDBACK (REDUCTION, NOTCH x 2)
Phrase Loop: 80 sec
Display: 7 segments, 2 digits LED

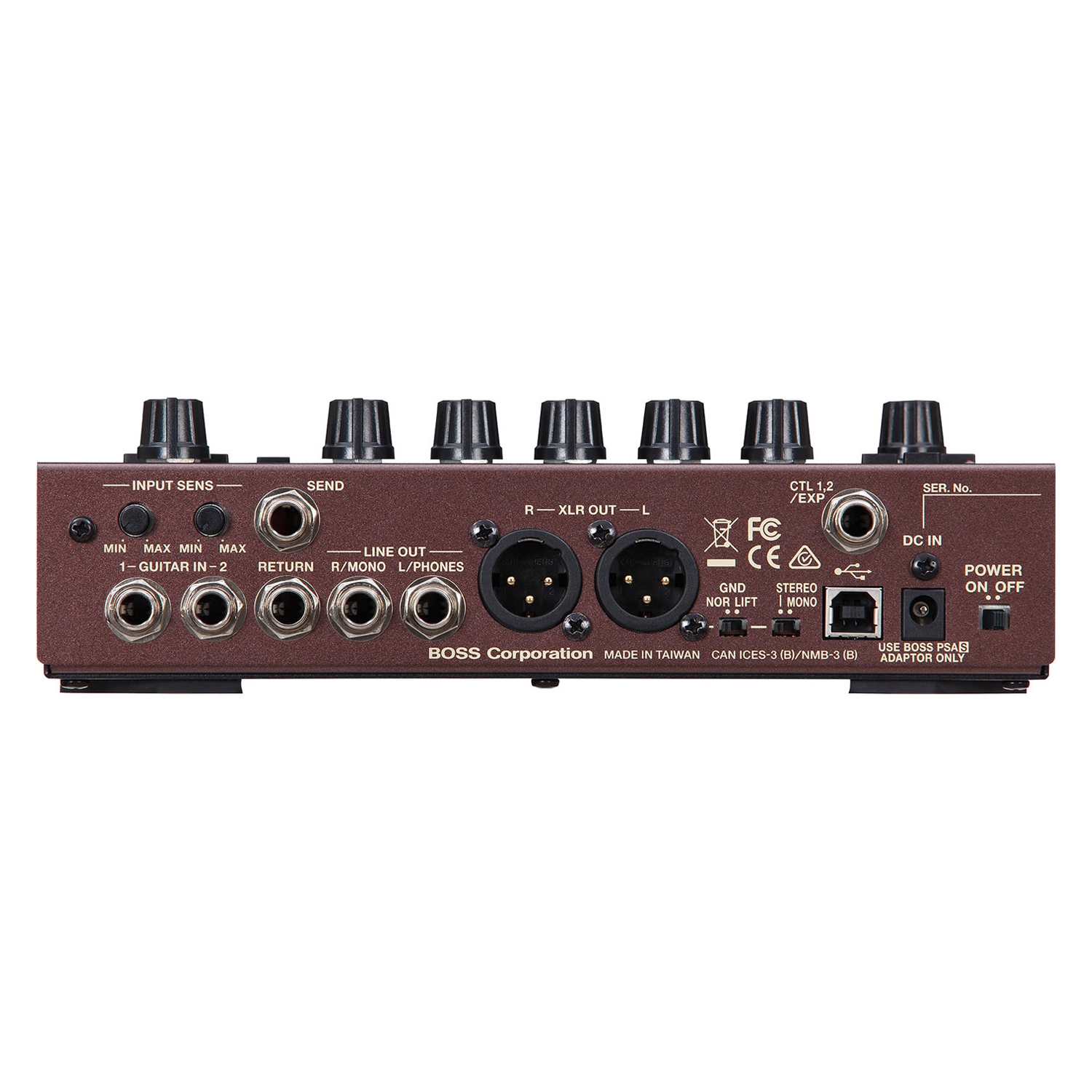

Connectors:
* GUITAR IN 1,2 jack: 1/4-inch phone type
* SEND: 1/4-inch phone type
* RETURN: 1/4-inch phone type
* XLR OUT L, R connectors: XLR type
* LINE OUT L/PHONES, R/MONO jacks: 1/4-inch phone type
* EXP/CTL1,2 jack: 1/4-inch TRS phone type
* USB COMPUTER port: USB type B
* DC IN jack
Power Supply: AC adaptor, Alkaline battery (AA, LR6) x 6
Current Draw: 300 mA
Expected battery life under continuous use:
Alkaline battery: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.
Accessories: Owner's manual, Leaflet "USING THE UNIT SAFELY", AC adaptor
Size and Weight
Width: 217 mm / 8-9/16 inches
Depth: 161 mm / 6-3/8 inches
Height: 65 mm 2-9/16 inches
Weight (including batteries): 1.3 kg / 2 lbs 14 oz
