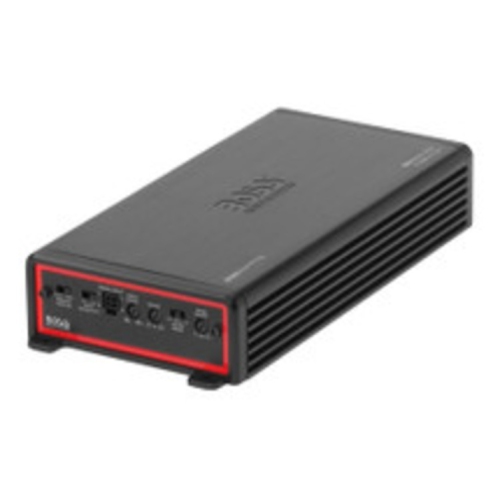

Boss Audio BE600.2D Mini Class D 2-Channel Amplifier - 2 x 225W RMS at 2 Ohms

About: Boss Audio BE600.2D Mini Class D 2-Channel Amplifier - 2 x 225W RMS at 2 Ohms

Power - 1200 Watts Max x 1 @1-Ohm, 600 Watts Max x 1 @2-Ohms, 300 Watts Max x 1 @4-Ohms

Class D - Power loss is significantly reduced making the amplifier highly efficient. Excess energy is stored until it’s needed instead of being converted into heat. Reduction in size/weight, reduced power waste, smaller heat sink, compact circuitry

1 Ohm Stable - Able to continuously power loads of 1 Ohm without encountering difficulties such as overheating. Typically made to power up subwoofers that demand the heavier power load requirements to be able to perform the way they were made to

Variable Bass Boost - Bass Boost allows you to adjust the low bass within the boost range to just the way you like it

Variable Subsonic Filter - To prevent your subwoofer(s) from bottoming out, the variable subsonic filter filters out frequencies below the subwoofer(s) specified low frequency limits and allows the driver to reach a maximum safe excursion

Variable Low Pass Crossover - Subwoofers reproduce sound based on a number of different low-range frequencies. You can set exact sound specifications for the bass frequency reproduction

Features:

Elite Series Class D 2 ohms Stable 2-Channel Amplifier

RMS Power Rating:

4 ohms: 113 watts x 2 channel

2 ohms: 225 watts x 2 channel

Bridged: 450 watts x 1 channel @ 4 ohms

Peak Power Rating:

4 ohms: 150 watts x 2 channel

2 ohms: 300 watts x 2 channel

Bridged: 600 watts x 1 channel

Total power output: 450 watts

LED Power/Protect Light

Speaker-level (high-level) inputs

MOSFET PWM (Pulse Width Modulated) power supply

Soft turn-on circuit

1 pair of pre-amp outputs

3-way protection circuitry (thermal, overload, and speaker short protection)

Illuminated end panels

Black anodized heatsink

RCA wire low level inputs

Black anodized heatsink

Frequency Response: 9 - 50000 Hz

Total Harmonic Distortion (THD): <0.01%

Signal to Noise Ratio: 103 dB

Variable high-pass filter: 50 - 250 Hz

Variable low-pass filter: 50 - 250 Hz

Variable Bass Boost: 0 - 12 dB

Fuse Rating: 40A

8 AWG gauge amplifier wiring kit is recommended for installation

Dimensions: 9.7" L x 4.6" W x 1.7" H
