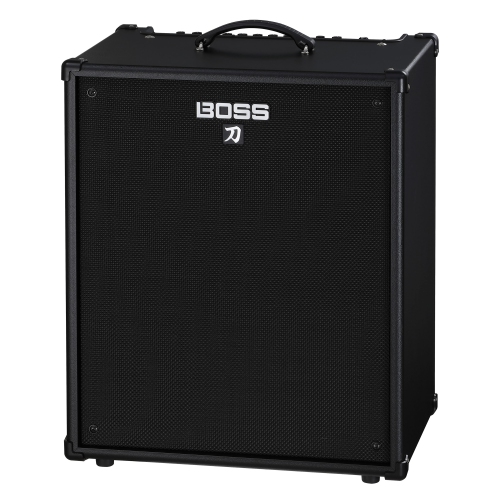

Versatile combo bass amp with stage-ready sound and advanced features. Crafted with the breakthrough design philosophy behind the acclaimed Katana guitar amp series, the Katana-210 Bass delivers premium sound and advanced features perfectly tuned for the needs of serious bassists. Three unique amp characters and onboard BOSS effects provide a wide range of tones, delivered with 300 watts of assertive class AB stage power and a high-performance speaker system based around two 10-inch woofers. With comprehensive EQ, flexible connectivity, and more, the Katana-210 Bass is ready to take on any playing situation, from stage to studio to everyday practice at home.
Features
* 300-watt class AB power amp delivers big, punchy tone
* Rock-solid combo cabinet with two custom 10-inch woofers and high-frequency tweeter with on/off switch
* Three selectable amp voicings cover a wide range of styles
* Shape switch with three tone characters: mid scoop, bright, and extended range
* Four independent effect sections: compressor, drive, and FX1/FX2 with a vast range of selectable effects
* Comprehensive four-band EQ with selectable low and high-mid frequency controls
* Studio-inspired Blend section enables you to mix in the dry sound for enhanced fatness and clarity
* Six memories for storing and recalling favourite sound setups
* Power Control realises cranked-amp volume in any playing situation
* Adjust preamp and effect settings, organise sounds, and more with the dedicated BOSS Tone Studio editor for macOS and Windows
* USB and phones/recording outputs with micd cabinet emulation
* Balanced XLR direct output with selectable direct, pre, or post signal
* External speaker jack
* Optional GA-FC footswitch for deep performance control
Specifications
Output Power
160 W Continuous (RMS)
300 W Peak
Nominal Input Level
Input: -10 dBu (1 M ohm)
Power amp in: -10 dBu (20 k ohms)
Aux In: -10 dBu (20 k ohms)
Return In: -10 dBu (100 k ohm)
Speaker
Woofer: 25 cm (10 inches) x 2
Tweeter: x 1

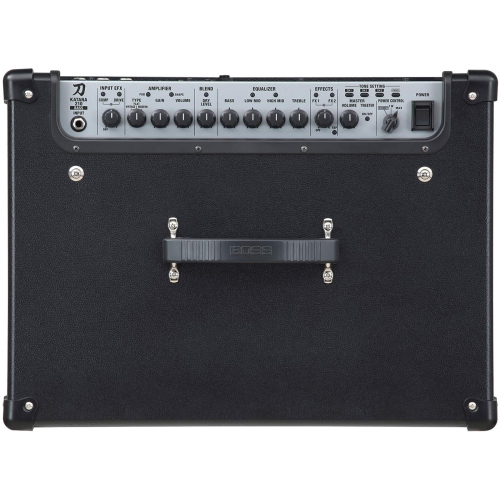

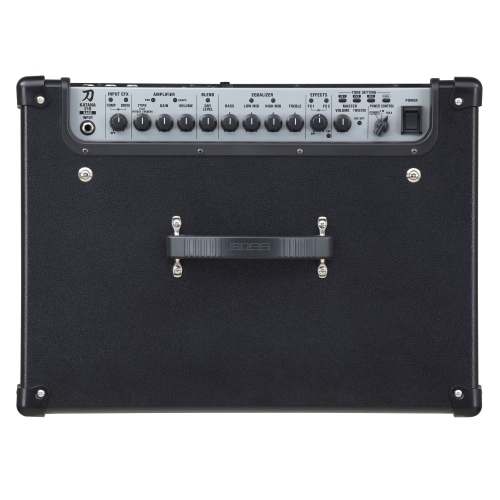

Controls
Power: Switch
Master Volume: Knob
Power Control: Switch (Standby, 1 W, Max)
Tweeter: Button
Input EFX
Comp: Button
Drive: Button
Comp: Knob
Drive: Knob
Amplifier
Pad: Button
Shape: Button
Type: Knob (Vintage, Flat, Modern)
Gain: Knob
Volume: Knob
Blend
Blend: Button
Dry Level: Knob
Equalizer
Low Mid: Button
High Mid: Button
Bass: Knob
Low Mid: Knob
High Mid: Knob
Treble: Knob
Effects
FX1: Button
FX2: Button
Tap: Button
FX1: Knob
FX2: Knob
Tone Setting
CH1: Button
CH2: Button
CH3: Button
Panel: Button
Balanced Out
GND Lift: Switch (Off, On)
Select (Post, Pre, Direct)
Indicators
Comp
Drive
Pad
Shape
Blend
Low Mid
High Mid
FX1
FX2
Tap
CH1
CH2
CH3
Panel
Tweeter

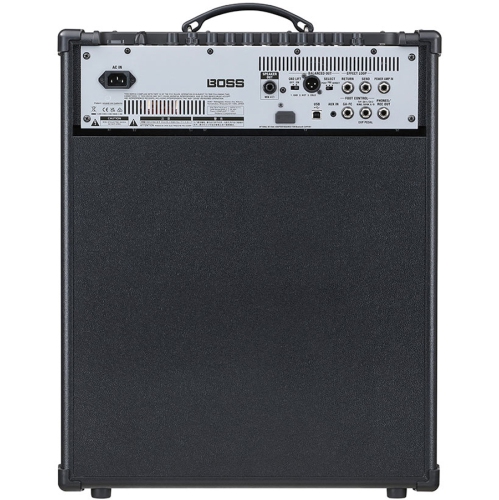

Connectors
Input Jack: 1/4-inch phone type
Power Amp In Jack: 1/4-inch phone type
Balanced Out Jack: 1/4-inch phone type
Send Jack: 1/4-inch phone type
Return Jack: 1/4-inch phone type
Speaker Out 4 ohms Jack: 1/4-inch phone type
Rec Out/Phones Jack: Stereo 1/4-inch phone type
Exp Pedal/Ctl CH1/CH2 Jack: 1/4-inch TRS phone type
GA-FC Jack: 1/4-inch TRS phone type
Aux In Jack: Stereo miniature phone type
USB Port: USB B type
Bluetooth Adaptor Slot: Bluetooth Audio MIDI Dual Adaptor
Power Consumption
117 W
Dimensions (with handle and rubber feet) (W x D x H): 490 x 360 x 620 mm / 19-5/16 x 14-3/16 x 24-7/16 inches
Weight: 21.8 kg / 48 lbs 1 oz
Accessories
Owner's Manual
Power Cord
GA-FC Sticker
* 0 dBu=0.775 Vrms
