Journey to new dimensions of time and space with the RV-500, the most powerful and versatile reverb processor BOSS has ever produced. This multifaceted creation machine features class-defying 32-bit AD/DA along with 32-bit/96 kHz floating point processing and immense programmability, putting pro-level studio reverb and more at your feet.
Twelve modes and 21 newly developed reverb algorithms deliver a huge range of textures, from complementary ambience to deep, immersive sonic atmospheres. And thanks to the RV-500s high-octane DSP, you can access a full-featured digital delay along with every reverb patch, and even run two reverb patches at once! Adding in MIDI I/O, support for external footswitch/expression control, and USB for connection to the free RV-500 Editor/Librarian software, the RV-500 is simply the most advanced reverb pedal available, bar none.
FEATURES
Studio-level sound with first-in-class 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
12 modes with 21 reverb types, all with deep editing parameters
Includes a wide range of reverb types from standard to advanced, plus Roland classics such as the SRV-2000 Reverb and RE-201 Space Echo
A/B Simul mode allows you to use two reverb patches at once
Selectable carryover function allows reverb tails to continue with patch change or effect bypass
Powerful DSP provides independent digital delay with modulation along with each reverb patch
Graphic LCD and intensive real-time control options
297 onboard patch memories and hands-on controls
Selectable buffered-bypass or true-bypass operation
MIDI I/O for interfacing with MIDI control devices
USB-MIDI for connecting to the RV-500 Editor/Librarian or a DAW (to be available in early July 2017)
Runs on four AA-size batteries or PSA-series AC adapter
SPECIFICATIONS
Sampling Frequency: 96 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Modes: 12 modes: ROOM, HALL, PLATE, SPRING, SHIMMER, FAST, DECAY, EARLY REFLECTION, NON-LINEAR, SFX, DUAL, SRV, SPACE ECHO
Memory: 198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])
Nominal Input Level: INPUT A/MONO, B: -10 dBu
Maximum Input Level: INPUT A/MONO, B: +8 dBu
Input Impedance: INPUT A/MONO, B: 1 M ohm
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +8 dBu
Output Impedance: OUTPUT A/MONO, B: 2 k ohms
Recommended Load Impedance: OUTPUT A/MONO, B: 20 k ohms or greater
Bypass: Buffered bypass or True bypass (with relays)

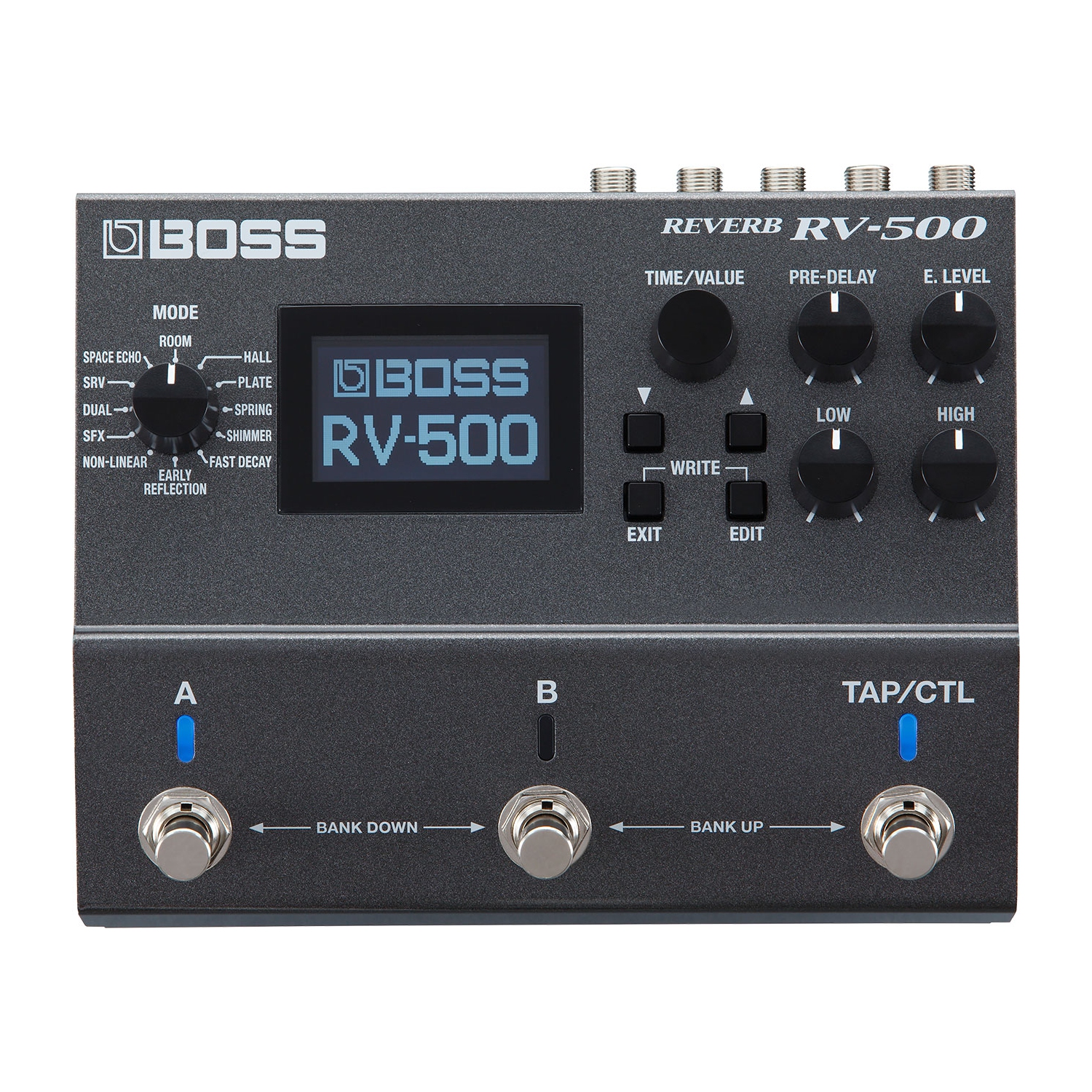

Controls: A switch, B switch, TAP/CTL switch
DOWN button, UP button, EXIT button, EDIT button
MODE knob, TIME/VALUE knob, PRE-DELAY knob, E.LEVEL knob, LOW knob, HIGH knob
Display: Graphic LCD (128 x 64 dots, backlit LCD)

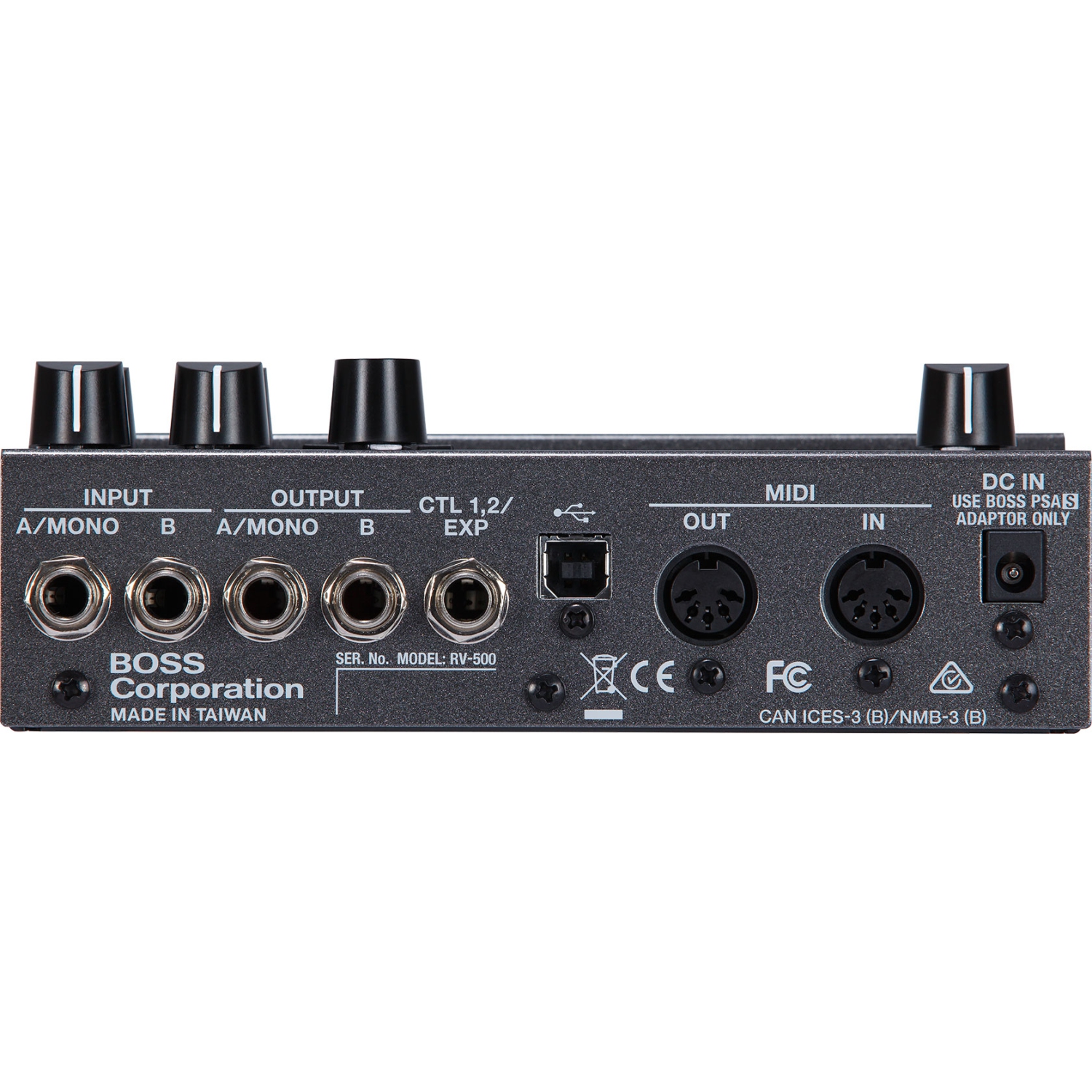

Connectors:
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TSR phone type
USB COMPUTER port: USB type B
MIDI (IN, OUT) connectors
DC IN jack
Power Supply: Alkaline battery (AA, LR6) x 4, AC adaptor (sold separately)
Current Draw: 225 mA
Expected battery life under continuous use: Alkaline: Approx. 4.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories:
Owner's manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4
Options (sold separately):
AC adaptor: PSA-S series
Footswitch: FS-5U, FS-5L
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
SIZE AND WEIGHT
Dimensions (W x D x H): 170 x 138 x 62 mm (6-3/4 x 5-7/16 x
2-1/2 inches)
Weight (including battery): 1.0 kg (2 lbs 4 oz)
