AT A GLANCE
EF-Mount Lens/Full-Frame Format
·Aperture Range: f/2.8 to f/45
·One Ultra-Low Dispersion Elements
·One Aspherical Element
·Air Sphere Coating
·Maximum Tilt: +/- 10°
·Maximum Shift: +/- 12mm
·Minimum Focusing Distance: 1.3'
·Maximum Magnification: 0.5x
·Filter Thread 77m
DESCRIPTION

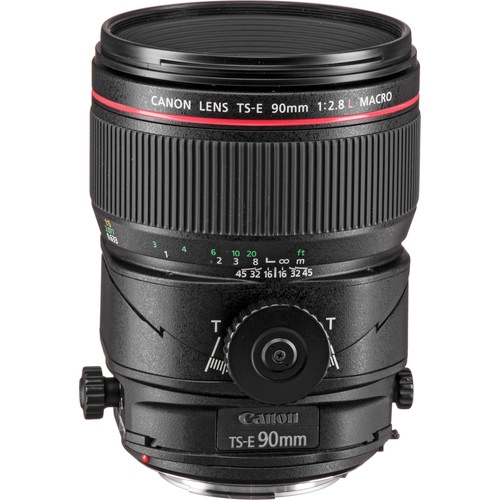

A short telephoto prime distinguished by its close focusing and perspective control capabilities, the TS-E 90mm f/2.8L Macro from Canon is a tilt-shift lens well-suited for product and tabletop photography. Up to +/- 10° of tilt is possible, for focus control, and +/- 12mm of shift, to adjust perspective and composition, and a tilt-locking mechanism can be used while shooting for more stability. A minimum focus distance of 1.3' and a maximum magnification of 0.5x are also benefited by the range of movements for more control over depth of field when photographing close-up subjects.
Complementing the operation of the lens, this L-series prime is also distinguished by its optical design, which features one Ultra-Low Dispersion element to significantly reduce colour fringing and chromatic aberrations as well as one aspherical element to minimize spherical aberrations and distortion. Individual elements also feature an Air Sphere Coating to suppress flare and ghosting for greater contrast and colour neutrality.
·Perspective control, tilt-shift lens affords +/- 12mm of shift and +/- 10° of tilt, and both types of movements can be applied independently, and parallel or perpendicular to one another. Additionally, the tilt and shift functions can be rotated +/- 90° in any direction for applying the movements in distinct directions.
·Tilt-locking mechanism and a large tilt knob benefit operation and ensure the lens stays in place while shooting.
·One Ultra-Low Dispersion (UD) element helps to reduce colour fringing and chromatic aberrations for improved clarity and colour accuracy.
·One aspherical element minimizes spherical aberrations and distortion for improved sharpness.
·An Air Sphere Coating has been applied to lens elements to minimize surface and internal reflections for a marked reduction in lens flare and ghosting when working in strong lighting conditions.
·A minimum focusing distance of 1.3' along with a maximum magnification of 0.5x benefits working with close-up subjects.SPECIFICATIONS
Focal Length90mm
ApertureMaximum: f/2.8
Minimum: f/45
Camera Mount TypeCanon EF
Format Compatibility35mm Film / Full-Frame Digital Sensor
Canon (APS-C)
Angle of View27°
Tilt/ShiftTilt ± 10°
Shifts ± 12mm
Minimum Focus Distance1.28' (39cm)
Magnification0.5x
Elements/Groups11/9
Diaphragm Blades9
Image StabilizationNo
AutofocusNo
Tripod Collar No
Filter Thread Front 77 mm
Dimensions (DxL)Approx. 3.42 x 4.59" (86.9 x 116.5 mm)
Weight2.01 lbs (915 g)
