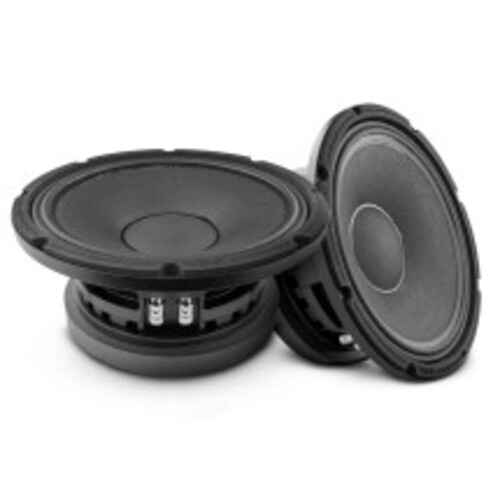

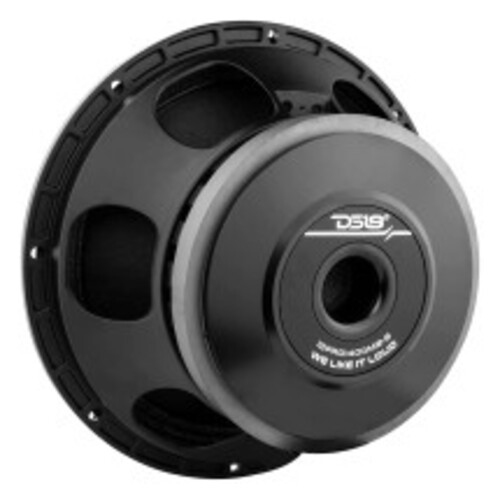

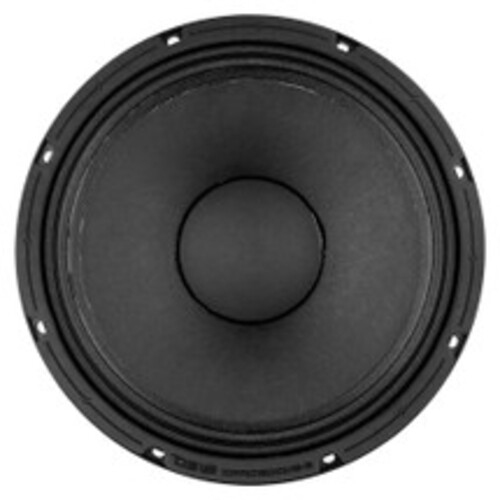

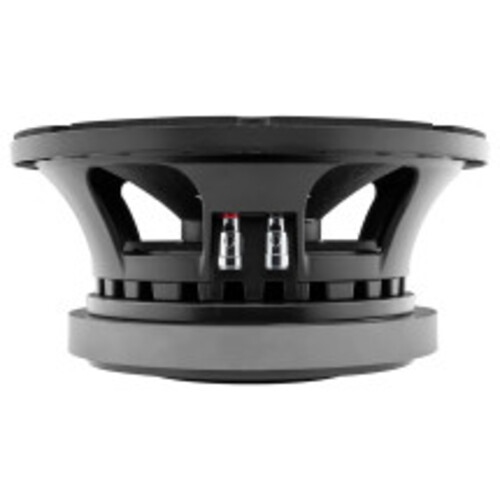

About: DS18 12PRO1400MB-8 12" Mid-Bass Loudspeaker 700W RMS - 8 Ohm (Each)
Immerse yourself in a world of crisp, powerful sound with DS18’s 12PRO1400MB-8! Professional Audio speakers should be engineered to slay their respective frequency ranges, and when it comes to the mid-bass range, the 12PRO1400MB-8 reigns supreme! Featuring a design that prioritizes powerful and punchy bass responses, the 12PRO1400MB-8 can deliver crystal-clear sound without any distortion, making it an ideal choice for anyone who likes their music LOUD! One of the standout features of these speakers is their impressive frequency response range, which spans from 50Hz to 5KHz. This means you can expect a solid mid-bass response from the 12PRO1400MB-8, essential for reproducing the lower frequencies of your music with crystal-clear clarity and impactful bass notes that truly resonate.
With an 8-ohm impedance, the 12PRO1400MB-8 reduces overall power consumption and heat generated by your system. The 12PRO1400MB-8’s interleaved (ISV) 3” voice coil handles 600W RMS and 1200W MAX power levels, an impressively manageable power setting for a speaker with an incredibly high 96 dB sensitivity! The ISV configuration on the 12PRO1400MB-8’s voice coil increases the magnetic field strength, reduces distortion, and handles higher power levels with ease. These speakers also feature double demodulating rings in their motor structure, intended to reduce intermodulation between signals and distortion. If you're on the hunt for a professional audio speaker that plays mid-bass notes with authority, then look no further than DS18’s 12PRO1400MB-8! Don't settle for less than the best - the 12PRO1400MB-8 is the speaker you need to take your music to the next level!
Product Highlights:
12" Mid-Bass
MAX Power: 1400 Watts
RMS Power: 700 Watts
Impedance: 8-Ohm
Ferrite Magnet
Specifications:
Nominal Diameter: 12" (300 mm)
Nominal Impedance: 8 Ohm
RMS Power Handling: 700W
Maximum Power Handling: 1400W
Sensitivity (1w/1m): 100dB
Frequency Response: 50Hz-5KHz
Recommended HI Pass Crossover: 60Hz
Sold in Pair or Single: Single
Grill Included: No
Features:
Double Demodulating Rings (DDR): Yes
Interleaved Sandwich Voice coil (ISV): Yes
Improved Heat Dissipation: Yes
Cone Shape: Curvilinear
Motor:
Voice Coil Diameter: 3" (76.2 mm)
Voice Coil Former Material: Fiberglass
Winding Material: Aluminum
Cone Material: Non-Pressed Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Die cast Aluminum
Basket Color/Finish: Black
Magnet Material: Ferrite
Magnet Weight: 90 Oz
Displacement Volume: 2.64L / 0.093ft3
Thiele & Small Parameters:
Equivalent Volume (Vas): 97.4L / 3.43ft3
Excursion (one way) (Xmax): 4.5 mm
Free Air Resonance (Fs): 49 Hz
Mechanical Factor (Qms): 9.08
Electrical Factor (Qes): 0.41
Total Factor (Qts):0.39
Mechanical Mass (Mms): 41.619 g
Mechanical Compliance (Cms): 0.214 mm/N
BL Factor (BL): 14.64
Voice Coil Inductance (Le): 0.89 mH
Cone Area (Sd): 522.79 Cm2
DC Resistance (Re): 5.2 Ohm
Mechanical Mass w/o air (Mmd): 34.4 g
Measurements:
Overall Diameter: 12.3" (314 mm)
Overall Depth: 5.74" (146 mm)
Front Mount Baffle Cutout: 11.22" (285 mm)
Mounting Depth: 5.2" (132 mm)
Motor Diameter: 7.87" (200 mm)
Gross Single Unit Weight: 8.8 Kg
Single Unit Box Dimensions (W x L x H): 340 x 340 x 172 mm
